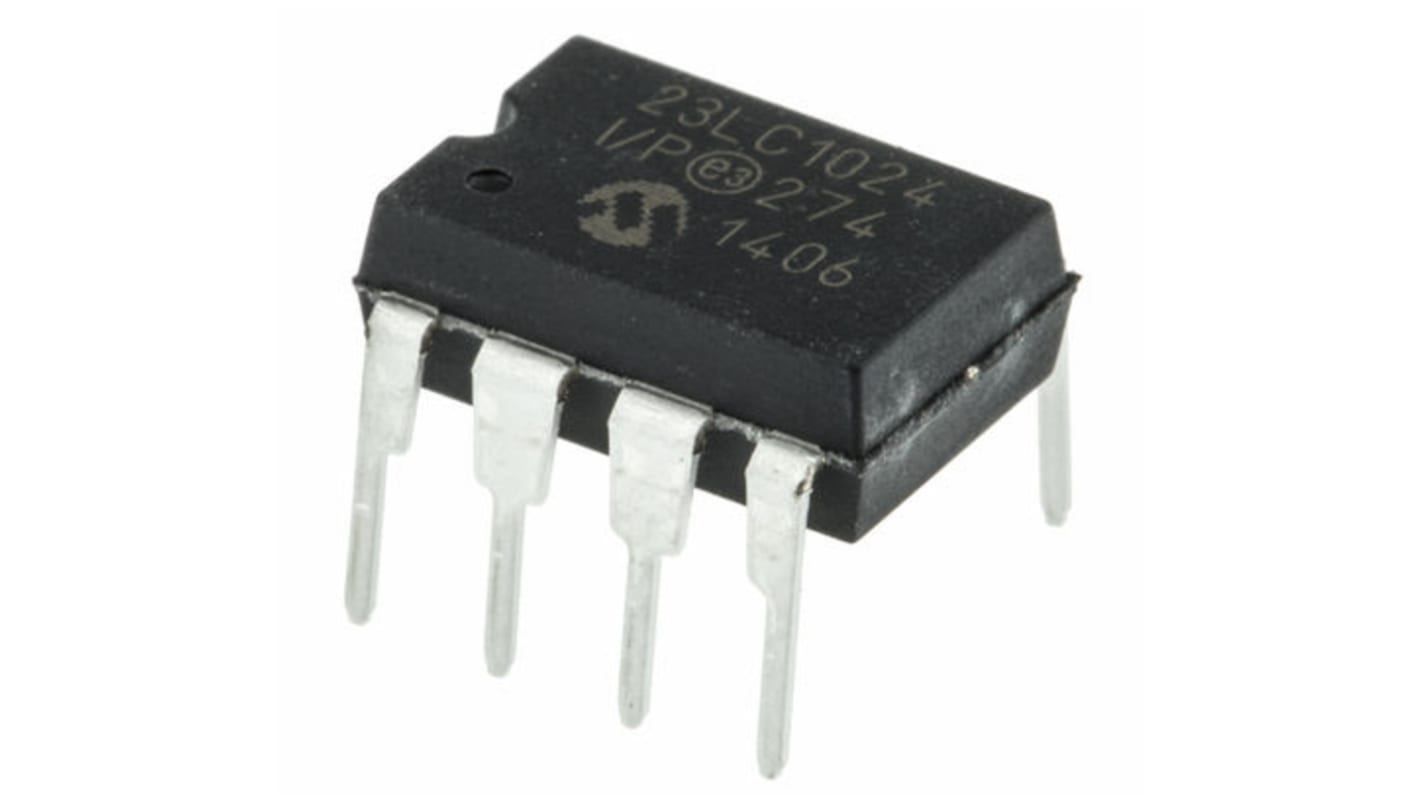

Microchip SRAM, 23LC1024-I/P- 1Mbit
- RS Stock No.:
- 912-2714
- Mfr. Part No.:
- 23LC1024-I/P
- Brand:
- Microchip
View all SRAM
240 In stock - FREE next working day delivery available
Price Each (In a Tube of 60)
£2.117
(exc. VAT)
£2.54
(inc. VAT)
| Units | Per unit | Per Tube* |
| 60 - 60 | £2.117 | £127.02 |
| 120 + | £2.06 | £123.60 |
| *price indicative | ||
- RS Stock No.:
- 912-2714
- Mfr. Part No.:
- 23LC1024-I/P
- Brand:
- Microchip
- COO (Country of Origin):
- US
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Static RAM, Microchip
SRAM (Static Random Access Memory)
Specifications
| Attribute | Value |
| Memory Size | 1Mbit |
| Organisation | 128k x 8 bit |
| Number of Words | 128k |
| Number of Bits per Word | 8bit |
| Maximum Random Access Time | 5ns |
| Address Bus Width | 24bit |
| Clock Frequency | 20MHz |
| Low Power | Yes |
| Timing Type | Synchronous |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 8 |
| Dimensions | 10.16 x 7.11 x 4.95mm |
| Height | 4.95mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 2.5 V |
| Length | 10.16mm |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 7.11mm |
