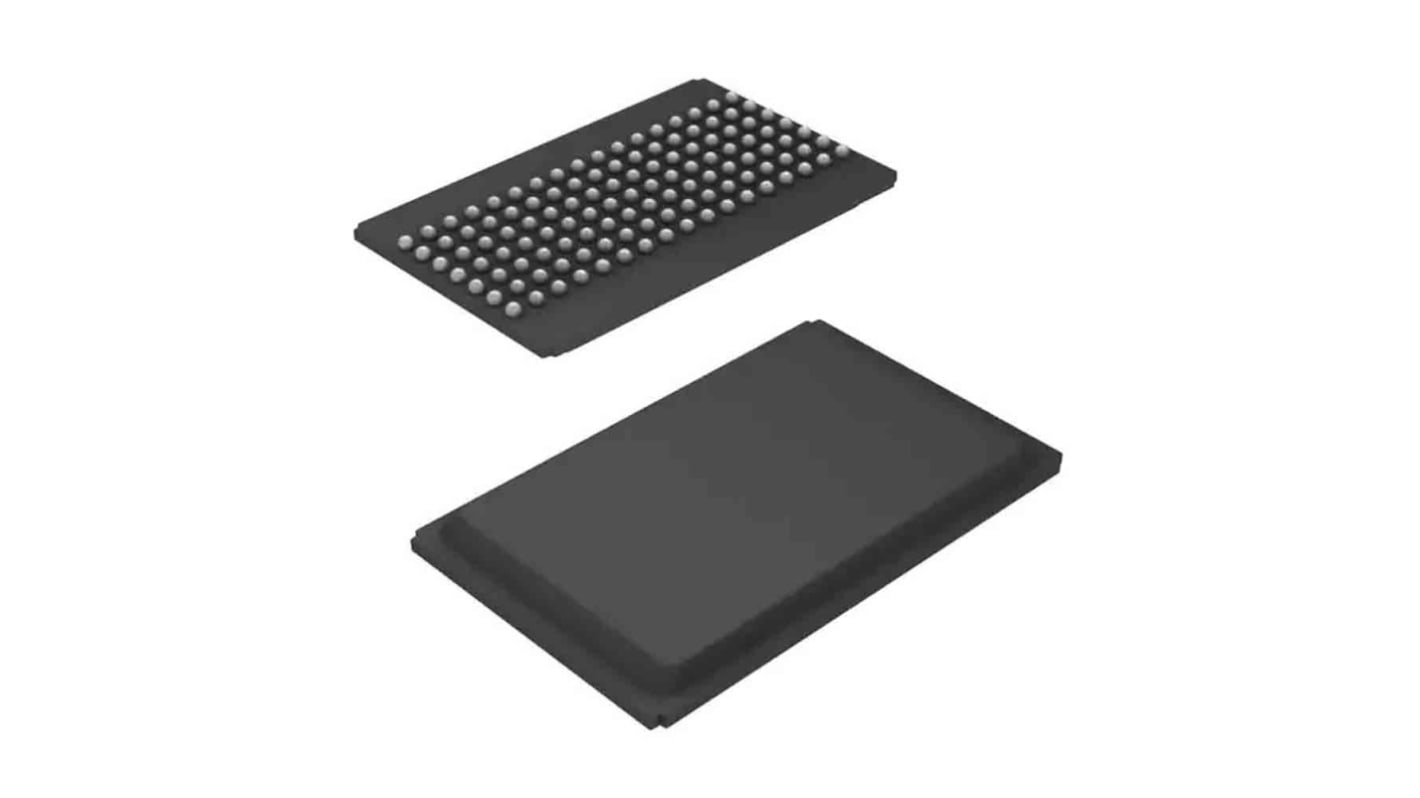

Infineon SRAM Memory Chip, CY7C1062G30-10BGXI- 16Mbit
- RS Stock No.:
- 181-7452
- Mfr. Part No.:
- CY7C1062G30-10BGXI
- Brand:
- Infineon
Subtotal (1 tray of 84 units)*
£3,077.76
(exc. VAT)
£3,693.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 84 unit(s) shipping from 01 September 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 84 + | £36.64 | £3,077.76 |
*price indicative
- RS Stock No.:
- 181-7452
- Mfr. Part No.:
- CY7C1062G30-10BGXI
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Memory Size | 16Mbit | |
| Organisation | 512k x 16 bit | |
| Number of Words | 512k | |
| Number of Bits per Word | 32bit | |
| Maximum Random Access Time | 10ns | |
| Address Bus Width | 16bit | |
| Clock Frequency | 100MHz | |
| Low Power | Yes | |
| Timing Type | Asynchronous | |
| Mounting Type | Surface Mount | |
| Package Type | PBGA | |
| Pin Count | 119 | |
| Dimensions | 22 x 14 x 1.8mm | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Height | 1.8mm | |
| Width | 14mm | |
| Length | 22mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Operating Supply Voltage | 2.2 V | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Memory Size 16Mbit | ||
Organisation 512k x 16 bit | ||
Number of Words 512k | ||
Number of Bits per Word 32bit | ||
Maximum Random Access Time 10ns | ||
Address Bus Width 16bit | ||
Clock Frequency 100MHz | ||
Low Power Yes | ||
Timing Type Asynchronous | ||
Mounting Type Surface Mount | ||
Package Type PBGA | ||
Pin Count 119 | ||
Dimensions 22 x 14 x 1.8mm | ||
Maximum Operating Supply Voltage 3.6 V | ||
Height 1.8mm | ||
Width 14mm | ||
Length 22mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Minimum Operating Supply Voltage 2.2 V | ||
High speed
tAA = 10 ns/15 ns
Embedded error-correcting code (ECC) for single-bit error correction
Low active and standby current
ICC = 90 mA typical
ISB2 = 20 mA typical
Operating voltage range: 1.65 V to 2.2 V, 2.2 V to 3.6 V
1.0-V data retention
Automatic power-down when deselected
Transistor-transistor logic (TTL) compatible inputs and outputs
ERR pin to indicate 1-bit error detection and correction
Available in Pb-free 119-ball plastic ball grid array (PBGA) package
tAA = 10 ns/15 ns
Embedded error-correcting code (ECC) for single-bit error correction
Low active and standby current
ICC = 90 mA typical
ISB2 = 20 mA typical
Operating voltage range: 1.65 V to 2.2 V, 2.2 V to 3.6 V
1.0-V data retention
Automatic power-down when deselected
Transistor-transistor logic (TTL) compatible inputs and outputs
ERR pin to indicate 1-bit error detection and correction
Available in Pb-free 119-ball plastic ball grid array (PBGA) package
