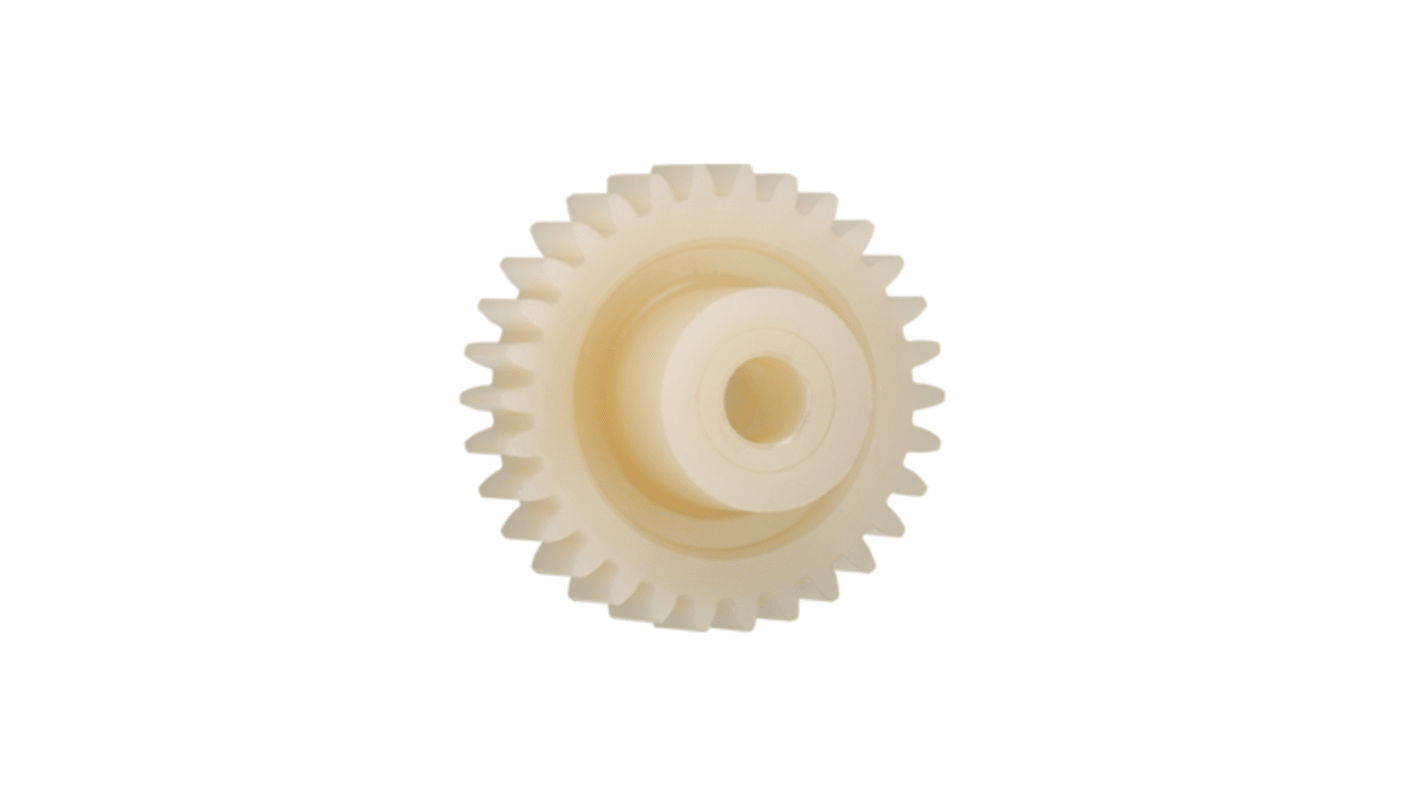

Igus 32 Teeth Spur Gear, 1 Module, 6 mm Bore Diam, 32 mm Pitch Diam, 18 mm Hub Diam
- RS Stock No.:
- 272-5565
- Mfr. Part No.:
- P360GM-ST-100-032-00-060-R
- Brand:
- Igus
Subtotal (1 unit)*
£15.74
(exc. VAT)
£18.89
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.74 |
*price indicative
- RS Stock No.:
- 272-5565
- Mfr. Part No.:
- P360GM-ST-100-032-00-060-R
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Module | 1 | |
| Product Type | Spur Gear | |
| Number of Teeth | 32 | |
| Bore Size | 6 mm | |
| Pitch Diameter | 32mm | |
| Hub Diameter | 18mm | |
| Face Width | 9mm | |
| Pressure Angle | 20° | |
| Series | P360GM | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Igus | ||
Module 1 | ||
Product Type Spur Gear | ||
Number of Teeth 32 | ||
Bore Size 6 mm | ||
Pitch Diameter 32mm | ||
Hub Diameter 18mm | ||
Face Width 9mm | ||
Pressure Angle 20° | ||
Series P360GM | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
The Igus igutek Spur gear with good tribological specifications provide a positive, constant speed drive to facilitate daily industrial operations. Its maintenance free properties reduce costs for lubrication and maintenance.
Very tough
Resistant to shock loads
