RS PRO Steel 24 Teeth Spur Gear, 0.7 Module, 4mm Bore Diam, 16.8mm Pitch Diam, 12mm Hub Diam
- RS Stock No.:
- 182-7866
- Brand:
- RS PRO
Save 6% when you buy 25 units
Subtotal (1 unit)*
£14.73
(exc. VAT)
£17.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £14.73 |
5 - 9 | £14.43 |
10 - 24 | £14.12 |
25 + | £13.83 |
*price indicative
- RS Stock No.:
- 182-7866
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Module | 0.7 | |
Number of Teeth | 24 | |
Material | Steel | |
Bore Diameter | 4mm | |
Pitch Diameter | 16.8mm | |
Hub Diameter | 12mm | |
Face Width | 5mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Module 0.7 | ||
Number of Teeth 24 | ||
Material Steel | ||
Bore Diameter 4mm | ||
Pitch Diameter 16.8mm | ||
Hub Diameter 12mm | ||
Face Width 5mm | ||
- COO (Country of Origin):
- CN

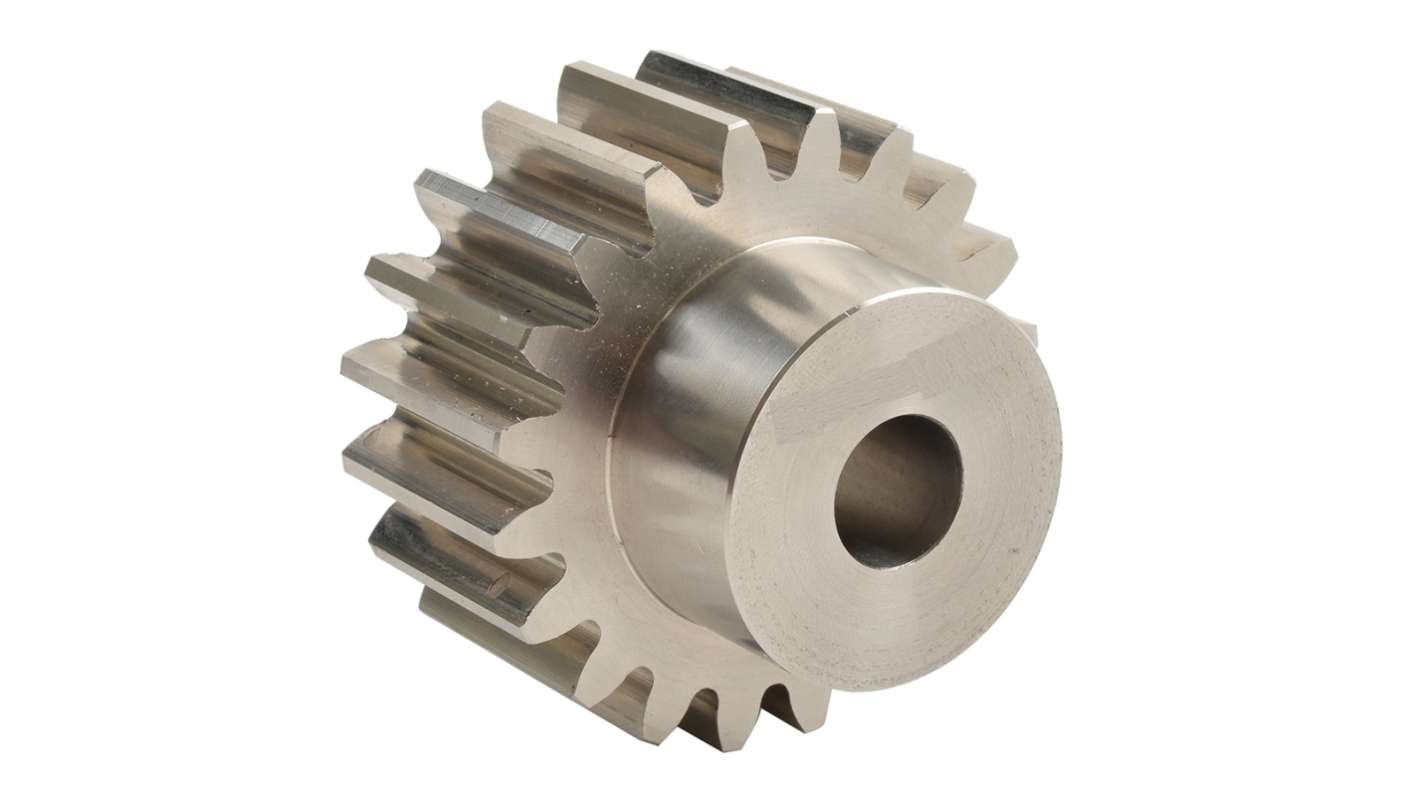

RS PRO Spur Gear
The RS PRO 24 teeth metric steel spur gear has a pitch diameter of 16.8mm, hub diameter of 12mm and bore diameter of 4mm. The gear has a face width of 5mm. It has a module value of 0.7.
Features and Benefits
• Standard to DIN 867, DIN 3962, DIN 3963, Grade 9 or equivalent
• Standard tolerances, unless otherwise stated 0.25mm
• Steel EN8 (080M40/080M46)
• Standard tolerances, unless otherwise stated 0.25mm
• Steel EN8 (080M40/080M46)
