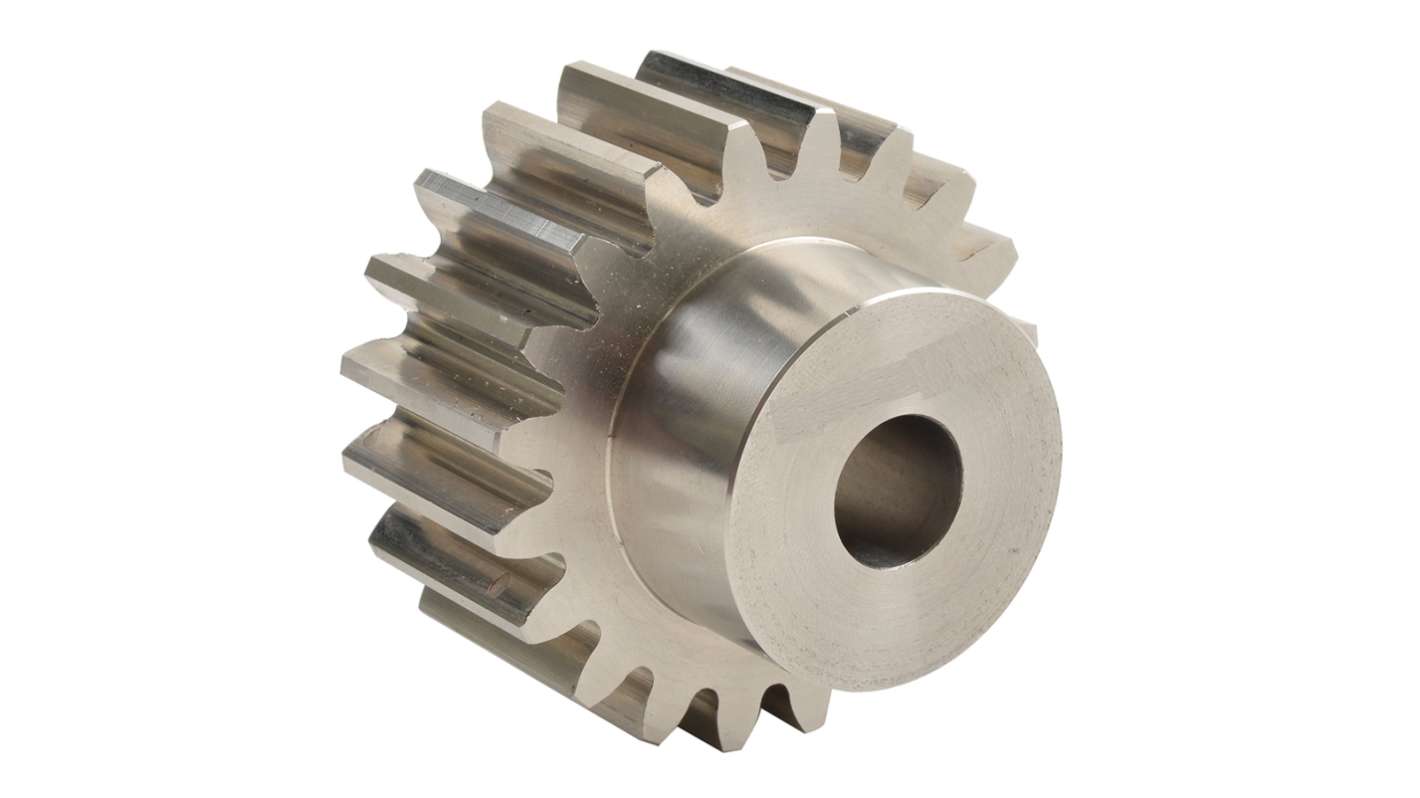

RS PRO Steel 16 Teeth Spur Gear, 1.5 Module, 8mm Bore Diam, 24mm Pitch Diam, 20mm Hub Diam
- RS Stock No.:
- 182-7832
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£8.02
(exc. VAT)
£9.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £8.02 |
5 - 9 | £7.86 |
10 + | £7.70 |
*price indicative
- RS Stock No.:
- 182-7832
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Module | 1.5 | |
Number of Teeth | 16 | |
Material | Steel | |
Bore Diameter | 8mm | |
Pitch Diameter | 24mm | |
Hub Diameter | 20mm | |
Face Width | 17mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Module 1.5 | ||
Number of Teeth 16 | ||
Material Steel | ||
Bore Diameter 8mm | ||
Pitch Diameter 24mm | ||
Hub Diameter 20mm | ||
Face Width 17mm | ||
- COO (Country of Origin):
- CN
The RS PRO Metric spur gear has module 1.5 with bore diameter of 8mm and face width of 17mm.
Number of Teeth: 16
Material: Steel
Material: Steel
