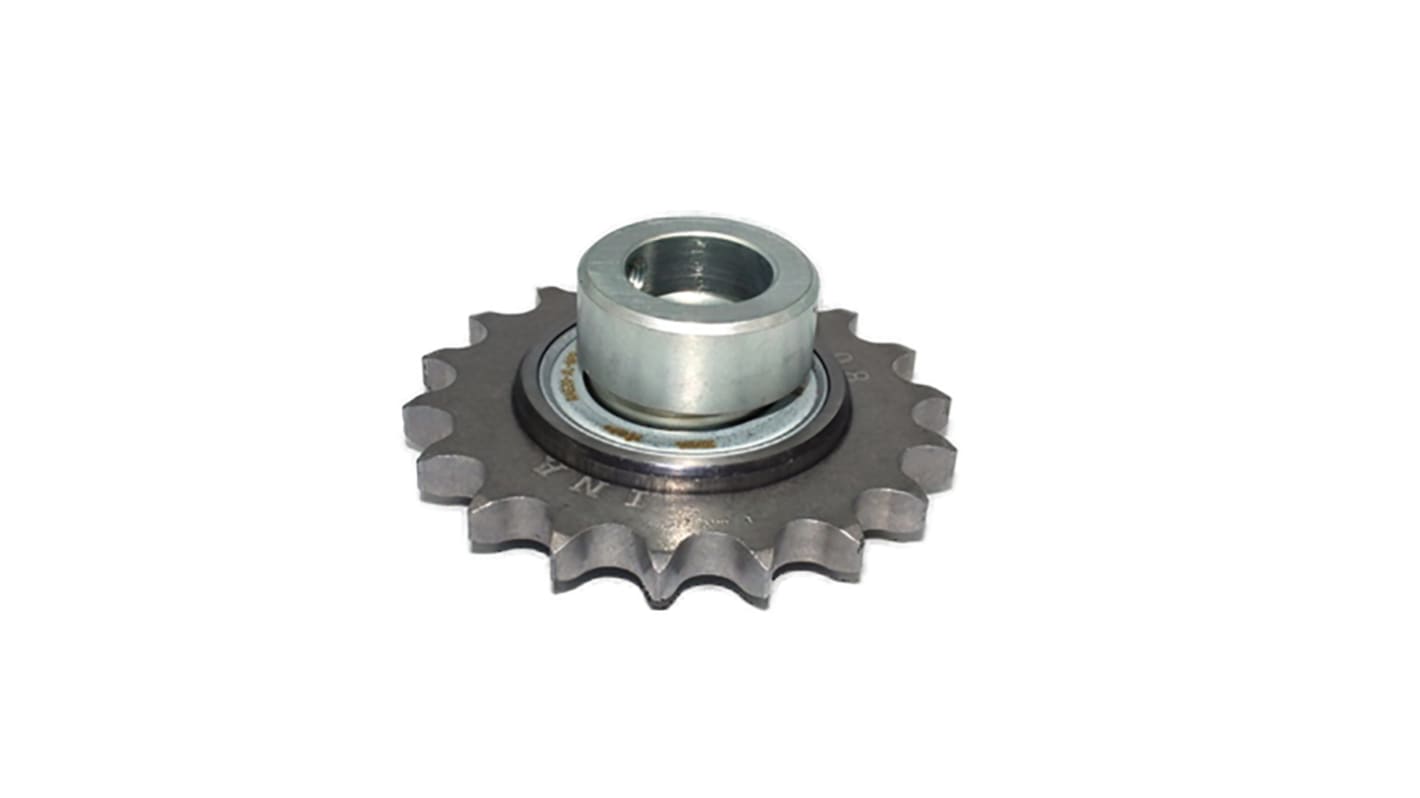

INA 18 Tooth Parallel Sprocket, KSR20-B0-08-10-18-08
- RS Stock No.:
- 194-7233
- Mfr. Part No.:
- KSR20-B0-08-10-18-08
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£45.23
(exc. VAT)
£54.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £45.23 |
5 - 9 | £43.41 |
10 - 24 | £42.52 |
25 + | £41.61 |
*price indicative
- RS Stock No.:
- 194-7233
- Mfr. Part No.:
- KSR20-B0-08-10-18-08
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Number of Teeth | 18 | |
Bore Type | Parallel | |
Maximum Bore Diameter | 20mm | |
Pitch Diameter | 1/2in | |
Material | Steel | |
Sprocket Width | 31mm | |
Select all | ||
---|---|---|
Brand INA | ||
Number of Teeth 18 | ||
Bore Type Parallel | ||
Maximum Bore Diameter 20mm | ||
Pitch Diameter 1/2in | ||
Material Steel | ||
Sprocket Width 31mm | ||
INA roller chain idler sprocket units are guidance and return units for roller bush chains and roller chains. They can compensate for chain stretch resulting from operation and give smoother system running under high loads and speeds
The ready-to-fit units comprise sprockets and deep groove ball bearings or radial insert ball bearings. The sprockets are made from high strength steel, sintered iron or plastic (polyamide). Sprockets made from plastic give particularly smooth running and generate very little noise. Since the inner ring of the deep groove ball bearing is extended on both sides, no additional spacer rings are required
In series KSR..-B0, the inner ring is located on the shaft by means of a locking collar. The bearing bore of this series has a plus tolerance.
The ready-to-fit units comprise sprockets and deep groove ball bearings or radial insert ball bearings. The sprockets are made from high strength steel, sintered iron or plastic (polyamide). Sprockets made from plastic give particularly smooth running and generate very little noise. Since the inner ring of the deep groove ball bearing is extended on both sides, no additional spacer rings are required
In series KSR..-B0, the inner ring is located on the shaft by means of a locking collar. The bearing bore of this series has a plus tolerance.
