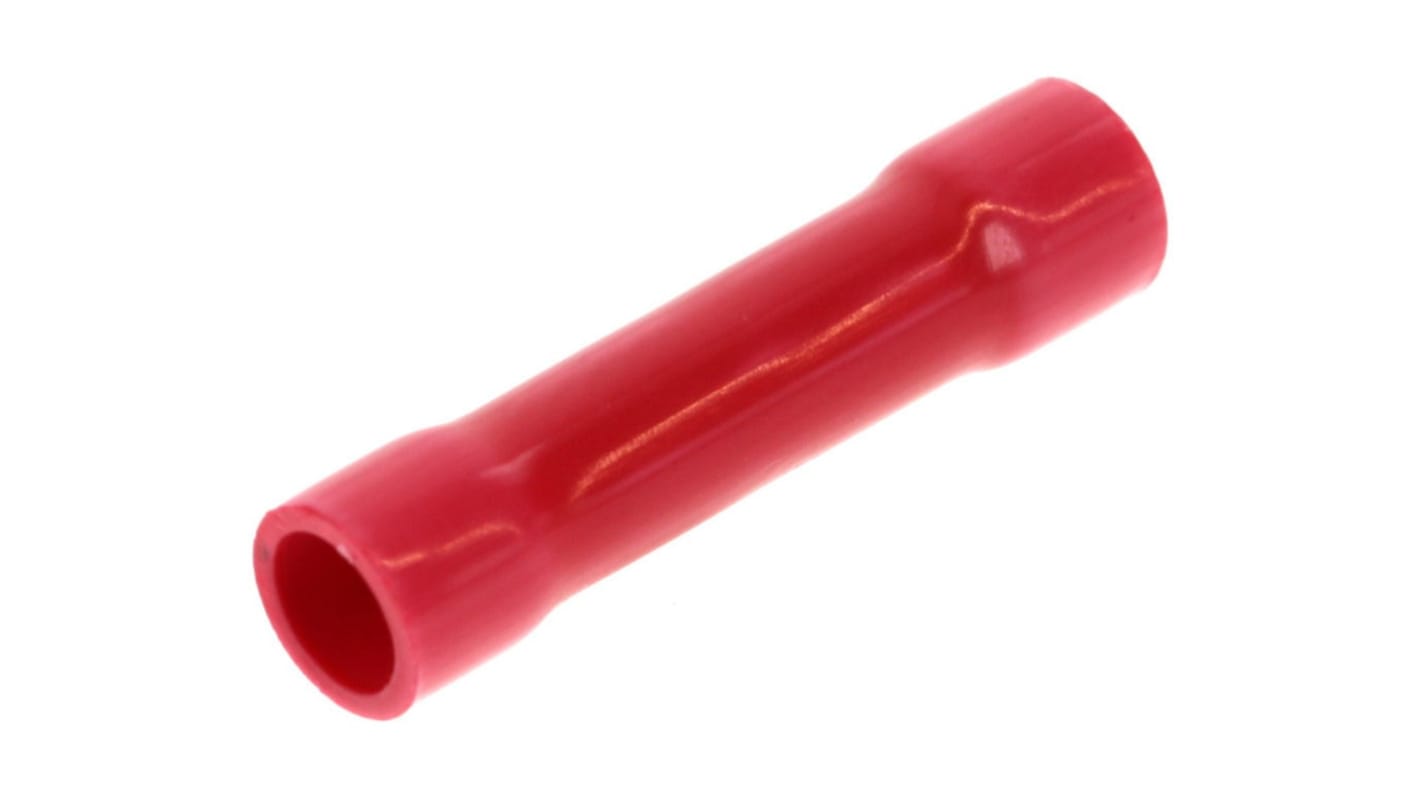

Molex, 19154 Butt Splice Splice Connector, Red, Insulated, Tin AWG
- RS Stock No.:
- 287-2231
- Mfr. Part No.:
- 191540004
- Brand:
- Molex
Bulk discount available
Subtotal (1 box of 1000 units)*
£124.00
(exc. VAT)
£149.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 8,000 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 1000 - 1000 | £0.124 | £124.00 |
| 2000 - 4000 | £0.116 | £116.00 |
| 5000 + | £0.112 | £112.00 |
*price indicative
- RS Stock No.:
- 287-2231
- Mfr. Part No.:
- 191540004
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Splice Type | Butt Splice | |
| Wire Size | AWG | |
| Overall Length | 24.9mm | |
| Minimum Wire Size AWG | 22AWG | |
| Diameter | 6.1mm | |
| Maximum Wire Size AWG | 18AWG | |
| Insulation | Insulated | |
| Colour | Red | |
| Series | 19154 | |
| Contact Plating | Tin | |
Select all | ||
|---|---|---|
Brand Molex | ||
Splice Type Butt Splice | ||
Wire Size AWG | ||
Overall Length 24.9mm | ||
Minimum Wire Size AWG 22AWG | ||
Diameter 6.1mm | ||
Maximum Wire Size AWG 18AWG | ||
Insulation Insulated | ||
Colour Red | ||
Series 19154 | ||
Contact Plating Tin | ||
- COO (Country of Origin):
- US
The Molex InsulKrimp Butt Splice is a reliable connector designed for 18 to 22 AWG wire. It features a closed barrel and is made from high-quality materials, including copper for the metal and tin for the plating. The splice is rated for a maximum voltage of 600V and can withstand temperatures ranging from -40°C to +105°C. With its PVC insulation and 94V-0 flammability rating, this butt splice ensures safe and secure connections. It is suitable for a wide range of applications and is compliant with various industry standards, including EU RoHS and REACH SVHC.
Closed barrel for secure connections
Made from high-quality copper and tin materials
Rated for a maximum voltage of 600V
Wide operating temperature range of -40°C to +105°C
PVC insulation with 94V-0 flammability rating
Compliant with EU RoHS and REACH SVHC
Made from high-quality copper and tin materials
Rated for a maximum voltage of 600V
Wide operating temperature range of -40°C to +105°C
PVC insulation with 94V-0 flammability rating
Compliant with EU RoHS and REACH SVHC
