Molex Quick Splice Crimp Quick Disconnect Terminal, Insulated 18 AWG, 20 AWG, 22 AWG
- RS Stock No.:
- 259-2436
- Mfr. Part No.:
- 19039-0005
- Brand:
- Molex
Subtotal (1 bag of 1000 units)*
£290.00
(exc. VAT)
£350.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,000 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
1000 + | £0.29 | £290.00 |
*price indicative
- RS Stock No.:
- 259-2436
- Mfr. Part No.:
- 19039-0005
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Splice Type | Quick Splice | |
Wire Size | 18 AWG, 20 AWG, 22 AWG | |
Overall Length | 25.9mm | |
Diameter | 4.57mm | |
Minimum Wire Size AWG | 22AWG | |
Maximum Wire Size AWG | 18AWG | |
Insulation | Insulated | |
Number of Ways | 1 | |
Select all | ||
---|---|---|
Brand Molex | ||
Splice Type Quick Splice | ||
Wire Size 18 AWG, 20 AWG, 22 AWG | ||
Overall Length 25.9mm | ||
Diameter 4.57mm | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 18AWG | ||
Insulation Insulated | ||
Number of Ways 1 | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US

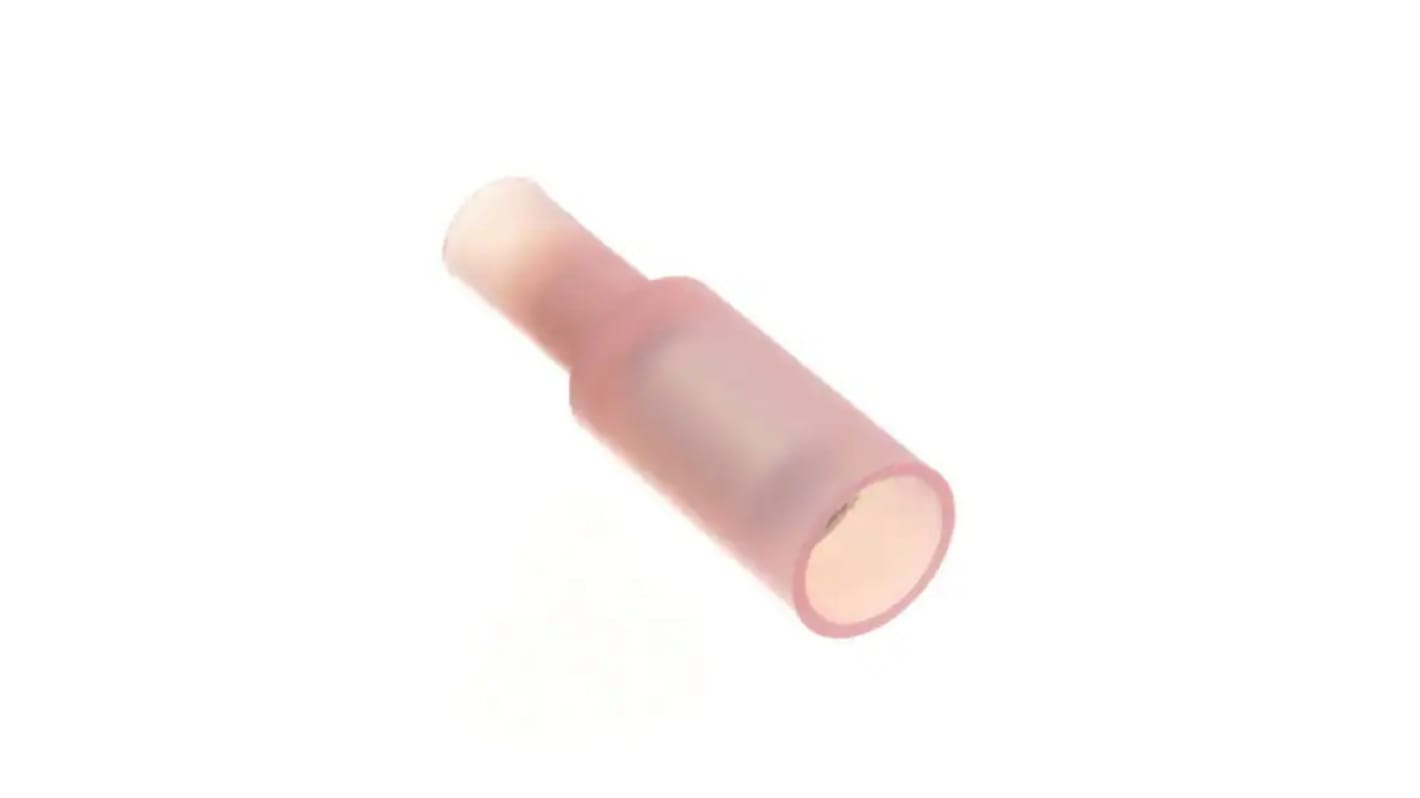

The Molex avikrimp snap plug receptacle for 18-22 AWG wire. Insulation is made up of nylon and fits male plug diameter of 4.57mm.
Barrel type closed
Color - Resin Red
Flammability 94V-2
Gender female
Glow-wire capable no
Insulation nylon (PA)
Wire size AWG 18, 20, 22
Color - Resin Red
Flammability 94V-2
Gender female
Glow-wire capable no
Insulation nylon (PA)
Wire size AWG 18, 20, 22
