Aaronia Ag SPECTRAN NF-5030 Handheld Spectrum Analyser

View all Spectrum Analysers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
775-1045
Mfr. Part No.:
SPECTRAN NF-5030
Brand:
Aaronia Ag
Find similar products by selecting one or more attributes.
Select all

Brand

Aaronia Ag

Wave Traces

Live

Maximum Frequency

1MHz

Minimum Frequency

1 Hz

Display Type

LCD

Screen Size

51 x 25 (Spectrum)pixel

Markers

Frequency, Signal

RF Input

SMA Connector

Interface Type

USB 1.1, USB 2.0

Desktop/Handheld

Handheld

Battery Type

LiPo

Weight

420g

Model Number p

SPECTRAN NF-5030

Height

23mm

Dimensions

260 x 86 x 23mm

Width

86mm

Length

260mm

RoHS Status: Exempt

COO (Country of Origin):
DE

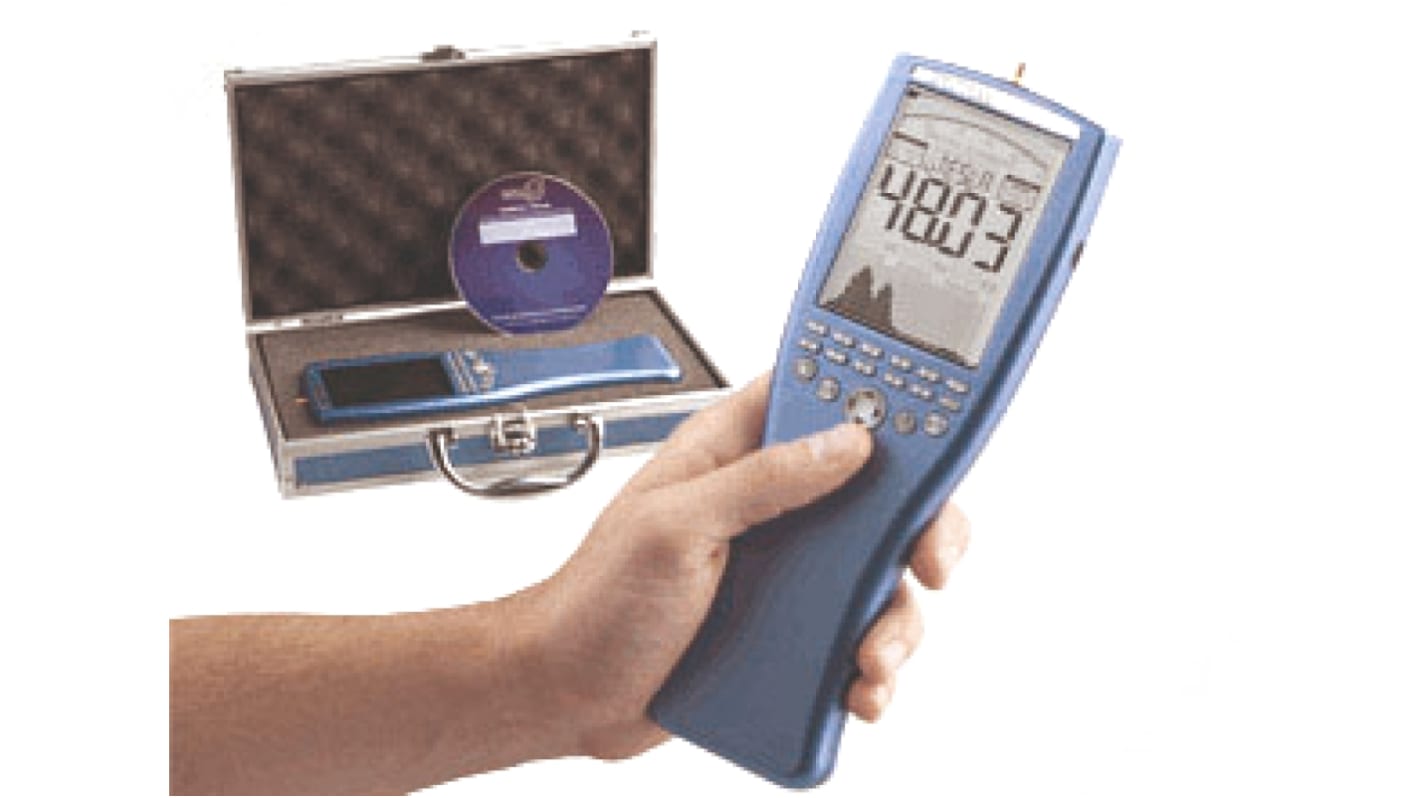

Aaronia Spectrum Analyser SPECTRAN NF (EMF)


The Aaronia Spectrum Analyser SPECTRAN NF is a compact handheld spectrum analyser suitable for pre-compliance and EMC/EMI tests up to 30MHz. It locates radiation sources in the environment and displays frequencies and signal strengths. Features include direct display of exposure limits, with background calculations by an integral high-performance digital signal processor (DSP). The SPECTRAN NF is equipped with Aaronia's REAL 3D (isotropic) magnetic sensor to measure magnetic fields and a field plate sensor to measure electric fields. This is a professional tool available at low cost.

Measurement range up to DIN/VDE 0848
Superfast FFT spectrum analysis
3D magnetic field measurement
High-resolution multi-function display (95mm LCD)
DIN/VDE 0848 exposure limit calculation
Simultaneous M-Display X, Y, Z axes
True RMS signal strength measurement
Average (AVG) measurement
Internal data logger
Internet Flash software - updates
USB 2.0 interface

Note

All Aaronia SPECTRAN units offer a USB interface with real-time remote control to the user's PC or MAC. The free analyser software (available for MAC OS, Linux and Windows) transforms any SPECTRAN into a powerful measurement solution with features including recording, multiple window display, histogram, waterfall diagram, unlimited number of markers and enhanced limits display.

Supplied with

Aluminium carry case (with custom padding), 1300mAh Aaronia power battery with charger, PC software MCS (on CD), user manual including hints and exposure limit tables (PDF file)
