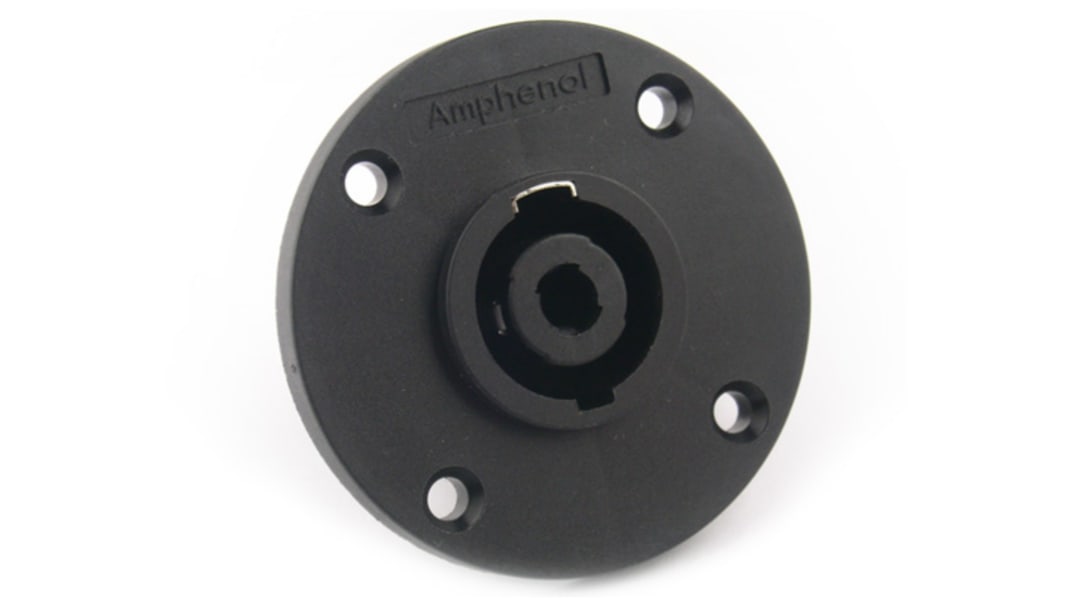

Amphenol Industrial Straight Panel Loudspeaker Connector, 4 Way Male, 30A, Solder
- RS Stock No.:
- 261-8000
- Mfr. Part No.:
- SP-4-MC
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£3.07
(exc. VAT)
£3.68
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 62 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.07 |
| 10 - 24 | £2.96 |
| 25 - 49 | £2.84 |
| 50 + | £2.70 |
*price indicative
- RS Stock No.:
- 261-8000
- Mfr. Part No.:
- SP-4-MC
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Product Type | Loudspeaker Connector | |
| Number of Contacts | 4 | |
| Orientation | Straight | |
| Current | 30A | |
| Contact Material | Phosphor Bronze | |
| Connector Gender | Male | |
| Mount Type | Panel | |
| Housing Material | Thermoplastic | |
| Minimum Operating Temperature | -25°C | |
| Voltage | 133V | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 75°C | |
| Contact Gender | Male | |
| Standards/Approvals | UL 94 HB, RoHS | |
| Series | EP | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Product Type Loudspeaker Connector | ||
Number of Contacts 4 | ||
Orientation Straight | ||
Current 30A | ||
Contact Material Phosphor Bronze | ||
Connector Gender Male | ||
Mount Type Panel | ||
Housing Material Thermoplastic | ||
Minimum Operating Temperature -25°C | ||
Voltage 133V | ||
Termination Type Solder | ||
Maximum Operating Temperature 75°C | ||
Contact Gender Male | ||
Standards/Approvals UL 94 HB, RoHS | ||
Series EP | ||
- COO (Country of Origin):
- CN
The Amphenol Audio SP series Loudspeaker chassis connectors are available in 2 or 4 contact arrangements. They have durable thermoplastic housings, which are fitted with high power contacts to ensure optimal current carrying capacity. The connectors are completely intermatable with industry standard loudspeaker connections.
Cost effective durable thermoplastic shell
Quick release and vibration resistant latch lock
Precision machined contacts
UL and cUL recognized components
