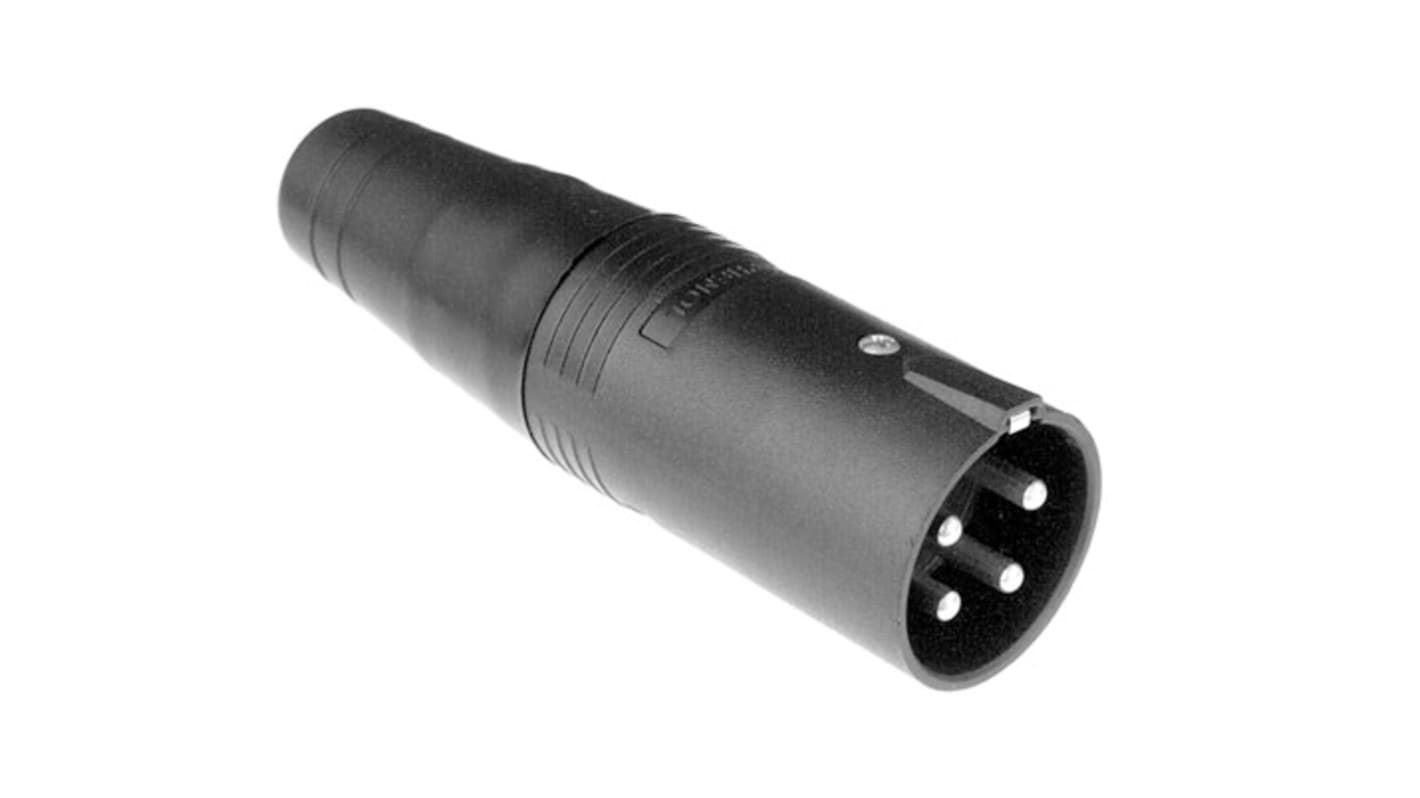

Amphenol Industrial AP-4-12 Straight Cable Loudspeaker Connector, 4 Way Male Black, 20A, Solder
- RS Stock No.:
- 261-7898
- Mfr. Part No.:
- AP-4-12
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 box of 10 units)*
£121.96
(exc. VAT)
£146.35
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 10 - 40 | £12.196 | £121.96 |
| 50 - 90 | £11.562 | £115.62 |
| 100 - 240 | £11.037 | £110.37 |
| 250 - 490 | £10.513 | £105.13 |
| 500 + | £10.098 | £100.98 |
*price indicative
- RS Stock No.:
- 261-7898
- Mfr. Part No.:
- AP-4-12
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Product Type | Loudspeaker Connector | |
| Number of Contacts | 4 | |
| Orientation | Straight | |
| Current | 20A | |
| Contact Material | Brass | |
| Mount Type | Cable | |
| Connector Gender | Male | |
| Housing Material | Modified Polyphenylene Ether Resin | |
| Colour | Black | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -25°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | RoHS, UL94V-0 | |
| Series | AP | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Product Type Loudspeaker Connector | ||
Number of Contacts 4 | ||
Orientation Straight | ||
Current 20A | ||
Contact Material Brass | ||
Mount Type Cable | ||
Connector Gender Male | ||
Housing Material Modified Polyphenylene Ether Resin | ||
Colour Black | ||
Termination Type Solder | ||
Minimum Operating Temperature -25°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals RoHS, UL94V-0 | ||
Series AP | ||
The Amphenol Audio AP series thermoplastic shell loudspeaker cable connectors have set the standard in high performance speaker connectors. Apart from its durability and strength, it offers consistent superior power handling capabilities also.
Precision machined contacts
Cost effective
High current contacts
