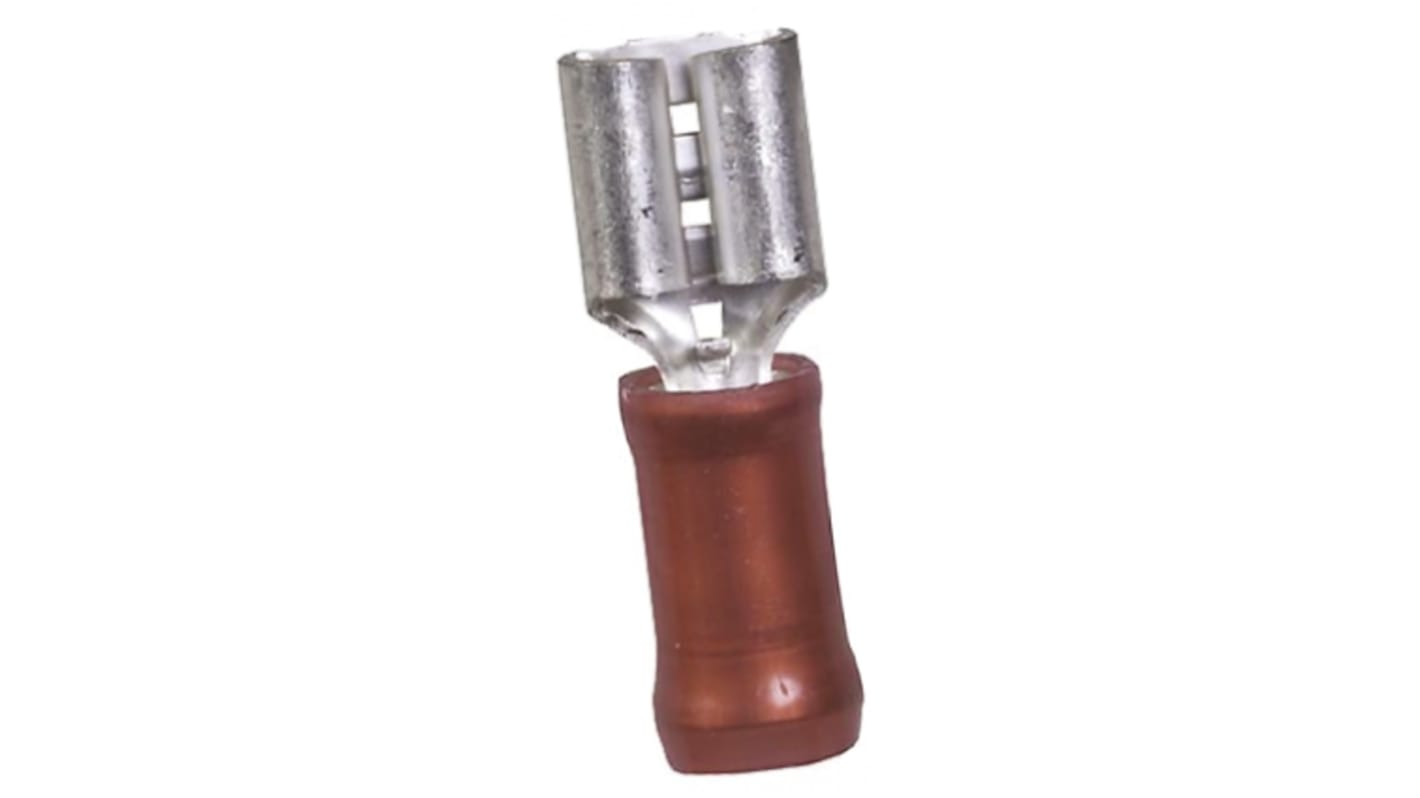

TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector, Receptacle, 5.21 x 0.51mm Tab Size, 0.3mm² to
- RS Stock No.:
- 782-7354
- Mfr. Part No.:
- 640909-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 100 units)*
£29.40
(exc. VAT)
£35.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,500 unit(s) ready to ship
- Plus 1,900 unit(s) ready to ship from another location
- Plus 3,800 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.294 | £29.40 |
| 500 - 2400 | £0.256 | £25.60 |
| 2500 - 4900 | £0.191 | £19.10 |
| 5000 - 9900 | £0.182 | £18.20 |
| 10000 + | £0.176 | £17.60 |
*price indicative
- RS Stock No.:
- 782-7354
- Mfr. Part No.:
- 640909-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Type | Receptacle | |
| Series | PIDG FASTON .250 | |
| Minimum Wire Size mm² | 0.3mm² | |
| Gender | Female | |
| Maximum Wire Size mm² | 0.8mm² | |
| Tab Size | 5.21 x 0.51mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 18AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Termination Method | Crimp | |
| Colour | Red | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Insulation Material | Nylon | |
| Overall Length | 0.82in | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Type Receptacle | ||
Series PIDG FASTON .250 | ||
Minimum Wire Size mm² 0.3mm² | ||
Gender Female | ||
Maximum Wire Size mm² 0.8mm² | ||
Tab Size 5.21 x 0.51mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 18AWG | ||
Minimum Wire Size AWG 22AWG | ||
Termination Method Crimp | ||
Colour Red | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Insulation Material Nylon | ||
Overall Length 0.82in | ||
TE Connectivity PIDG Faston 205 Receptacle Wire Crimp Terminals
PIDG insulated Faston 205 quick disconnect receptacle wire crimp terminal with a mating area interface of 5.21 x 0.81mm. This PIDG Faston 205 quick disconnect receptacle crimp terminal consists of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve.
Blue 1.25 - 2.00 mm²
TE Connectivity PIDG Terminals
