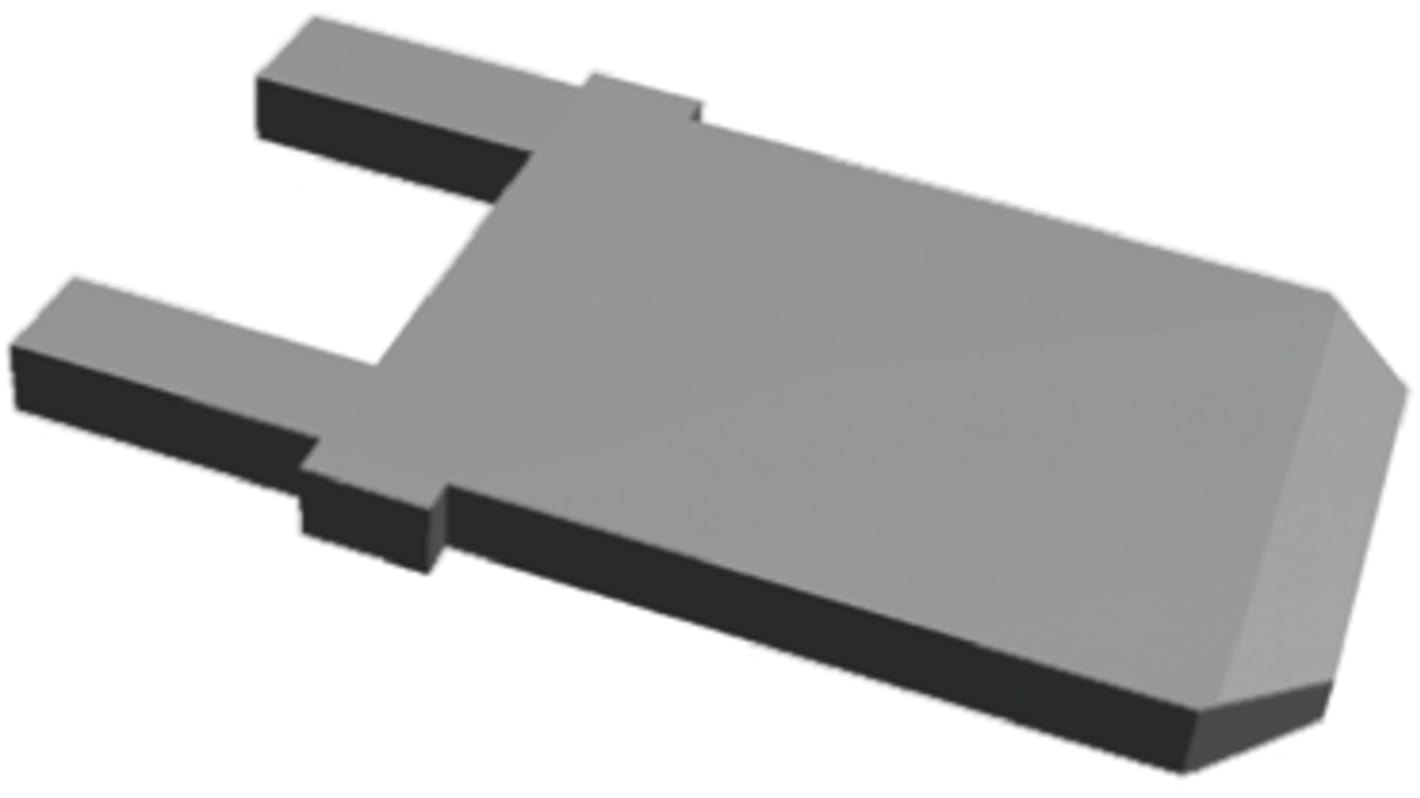

TE Connectivity FASTON .250 Uninsulated Male Spade Connector, PCB Tab, 6.35 x 0.83mm Tab Size
- RS Stock No.:
- 719-7198
- Mfr. Part No.:
- 62650-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£0.06
(exc. VAT)
£0.07
(inc. VAT)
- RS Stock No.:
- 719-7198
- Mfr. Part No.:
- 62650-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Type | PCB Tab | |
| Gender | Male | |
| Series | FASTON .250 | |
| Tab Thickness | 0.83mm | |
| Tab Width | 6.35mm | |
| Tab Size | 6.35 x 0.83mm | |
| Insulation | Uninsulated | |
| Termination Method | Solder | |
| Contact Material | Brass | |
| Contact Plating | Tin over Copper | |
| Overall Length | 12.37mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Type PCB Tab | ||
Gender Male | ||
Series FASTON .250 | ||
Tab Thickness 0.83mm | ||
Tab Width 6.35mm | ||
Tab Size 6.35 x 0.83mm | ||
Insulation Uninsulated | ||
Termination Method Solder | ||
Contact Material Brass | ||
Contact Plating Tin over Copper | ||
Overall Length 12.37mm | ||
TE Connectivity FASTON 250 PCB Mount Tab Terminals
FASTON 250 PCB mount tab terminals designed specifically for a reliable and high performance quick connection with FASTON 250 series receptacles. These PCB mount tabs are inserted into holes on the PCB then soldered for a permanent attachment. Vertical and right angle configurations of these FASTON 250 PCB mount tab terminals are available
Features and Benefits
• Reliable, high performance connection
• Vertical and right angle mounting options for design flexibility
• Vertical and right angle mounting options for design flexibility
Applications
These FASTON 250 PCB mount tab terminals are commonly used in the appliance and automotive industry. Other applications include computer and peripheral equipment, industrial controllers, test equipment and telecommunications equipment.
