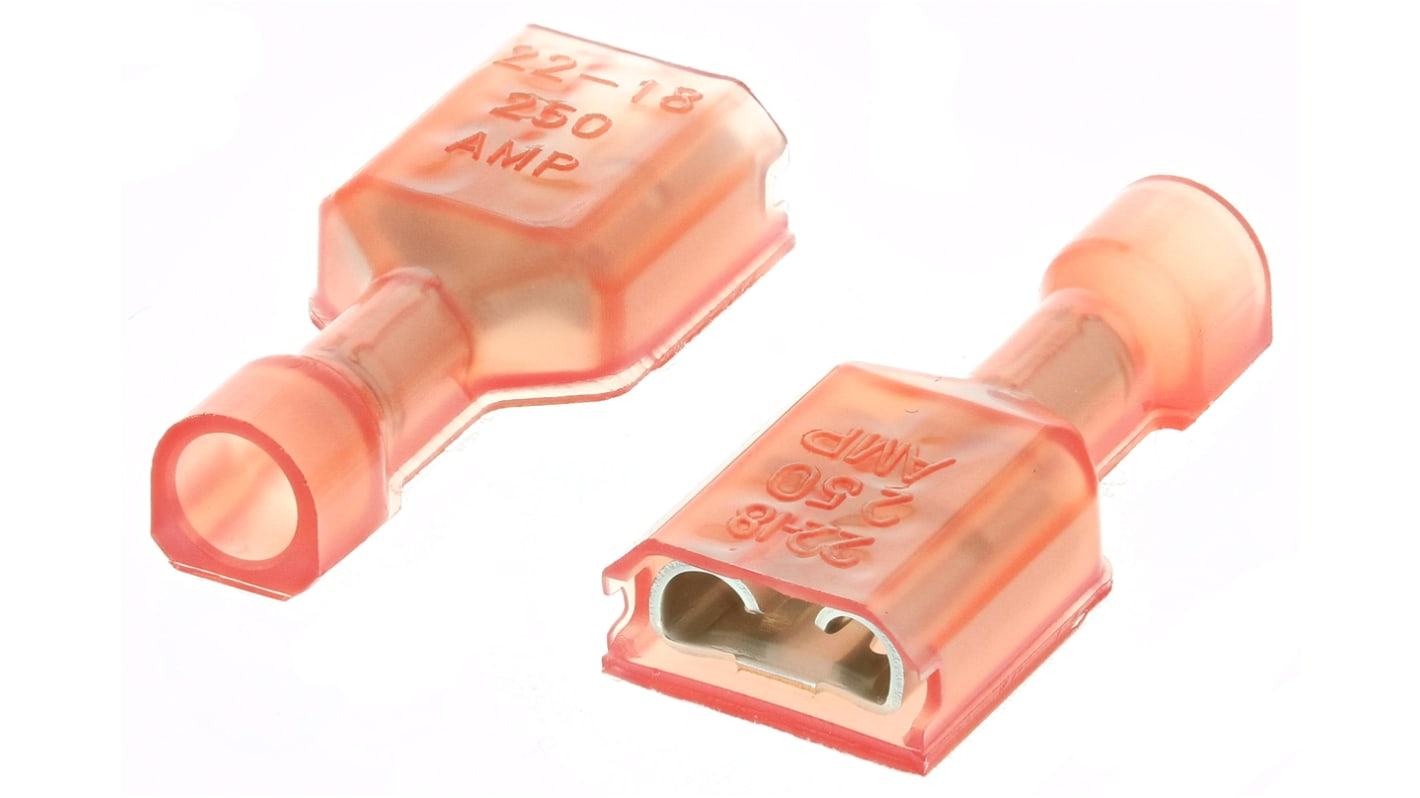

TE Connectivity Ultra-Fast .250 Red Insulated Female Spade Connector, Receptacle, 6.35 x 0.81mm Tab Size, 0.3mm² to
- RS Stock No.:
- 709-9805
- Mfr. Part No.:
- 2-520184-4
- Brand:
- TE Connectivity
2245 In stock - FREE next working day delivery available
240 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£0.456
(exc. VAT)
£0.547
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £0.456 | £2.28 |
| 25 - 120 | £0.42 | £2.10 |
| 125 - 245 | £0.374 | £1.87 |
| 250 - 495 | £0.342 | £1.71 |
| 500 + | £0.32 | £1.60 |
| *price indicative | ||
- RS Stock No.:
- 709-9805
- Mfr. Part No.:
- 2-520184-4
- Brand:
- TE Connectivity
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
TE Connectivity FASTON 250 Series Ultra-Fast Receptacle Crimp Terminals
FASTON 250 series Ultra-Fast fully insulated receptacle crimp terminals designed to prevent shock and electrical short circuits from exposed leads. The terminals are fully protected within a V-2 type 6/6 nylon housing. When mated the crimp receptacle and tab connector are completely encapsulated by the nylon housing. The housings have a funnelled design enabling easy wire insertion and to prevent fraying. The housings are also translucent to enable visual inspection of the termination and colour coded to aid wire size identification. These FASTON 250 series Ultra-fast receptacles terminate 26 AWG to 10 AWG solid, fused and stranded wire
Features and Benefits
• Fully insulated for protection against shock and short circuits
• Completely encapsulated when mated
• Funnelled housing for easy wire insertion
• Translucent housing for visual inspection
• Colour coded housings for wire size identification
• Completely encapsulated when mated
• Funnelled housing for easy wire insertion
• Translucent housing for visual inspection
• Colour coded housings for wire size identification
TE Connectivity Ultra-Fast and Ultra-Fast Plus Terminals
Specifications
Attribute | Value |
|---|---|
| Type | Receptacle |
| Minimum Wire Size mm² | 0.3mm² |
| Gender | Female |
| Series | Ultra-Fast .250 |
| Maximum Wire Size mm² | 0.8mm² |
| Tab Size | 6.35 x 0.81mm |
| Insulation | Insulated |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Termination Method | Crimp |
| Colour | Red |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Insulation Material | Nylon 66 |
| Overall Length | 0.855in |
