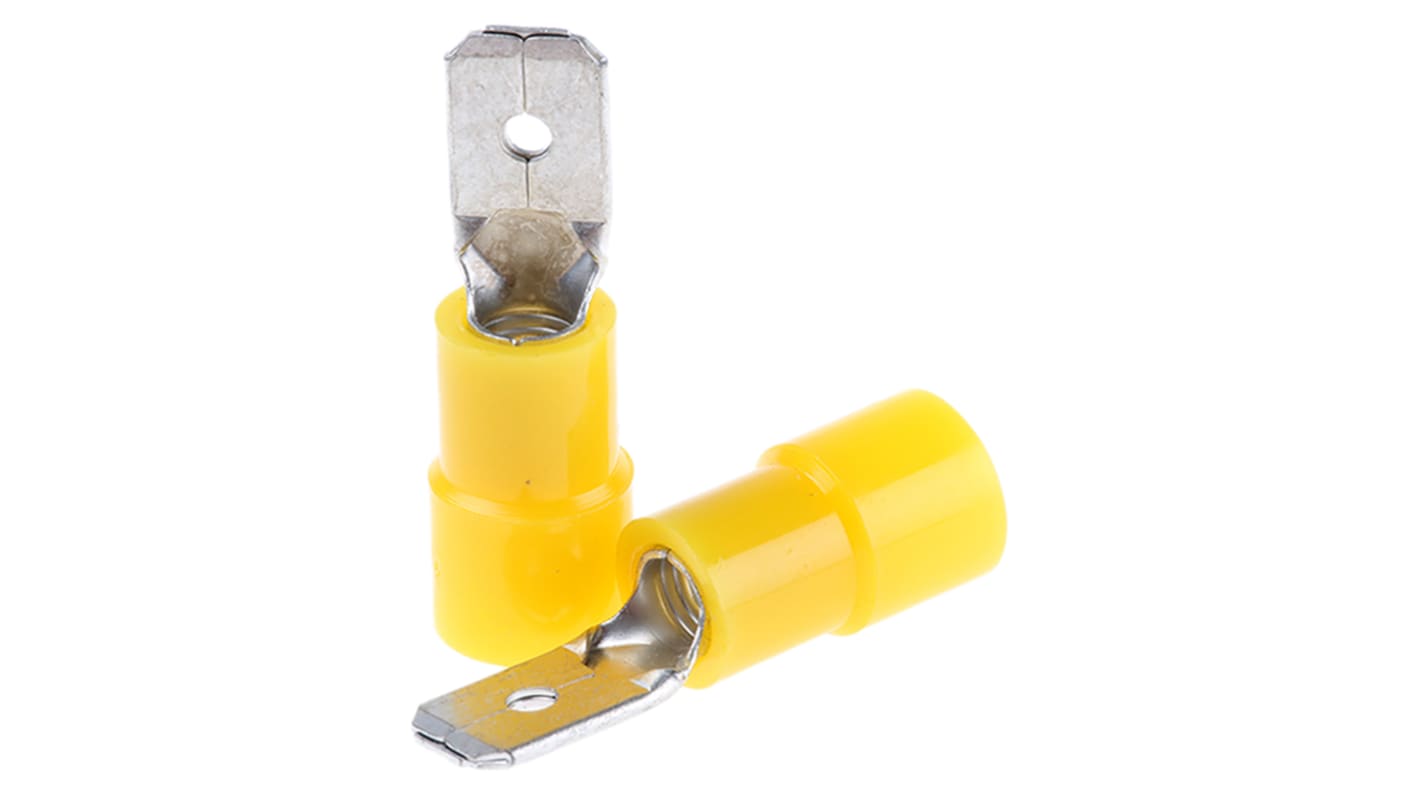

RS PRO RS PRO Yellow Insulated Male Spade Connector, Crimp, 6.35 x 0.8 mm Tab Size 12 AWG to 10 AWG
- RS Stock No.:
- 613-9693
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 100 units)*
£13.80
(exc. VAT)
£16.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5,900 unit(s) shipping from 05 May 2026
- Plus 900 unit(s) shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.138 | £13.80 |
| 500 - 2400 | £0.128 | £12.80 |
| 2500 - 4900 | £0.114 | £11.40 |
| 5000 - 9900 | £0.104 | £10.40 |
| 10000 + | £0.097 | £9.70 |
*price indicative
- RS Stock No.:
- 613-9693
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Spade Connector | |
| Termination Type | Crimp | |
| Gender | Male | |
| Tab Size | 6.35 x 0.8 mm | |
| Tab Thickness | 0.8mm | |
| Tab Width | 6.35mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size mm² | 4mm² | |
| Colour | Yellow | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Insulation Material | Polycarbonate | |
| Overall Length | 24mm | |
| Series | RS PRO | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Spade Connector | ||
Termination Type Crimp | ||
Gender Male | ||
Tab Size 6.35 x 0.8 mm | ||
Tab Thickness 0.8mm | ||
Tab Width 6.35mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size AWG 10AWG | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size mm² 4mm² | ||
Colour Yellow | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals No | ||
Insulation Material Polycarbonate | ||
Overall Length 24mm | ||
Series RS PRO | ||
- COO (Country of Origin):
- TW
RS Pro Insulated Crimp Tab Terminals
Red 0.5 - 1.5 mm²
Blue 1.5 - 2.5 mm²
Yellow 4.0 - 6.0 mm²
Size, 6.35 mm x 0.8 mm
Approvals
UL (E125401)
