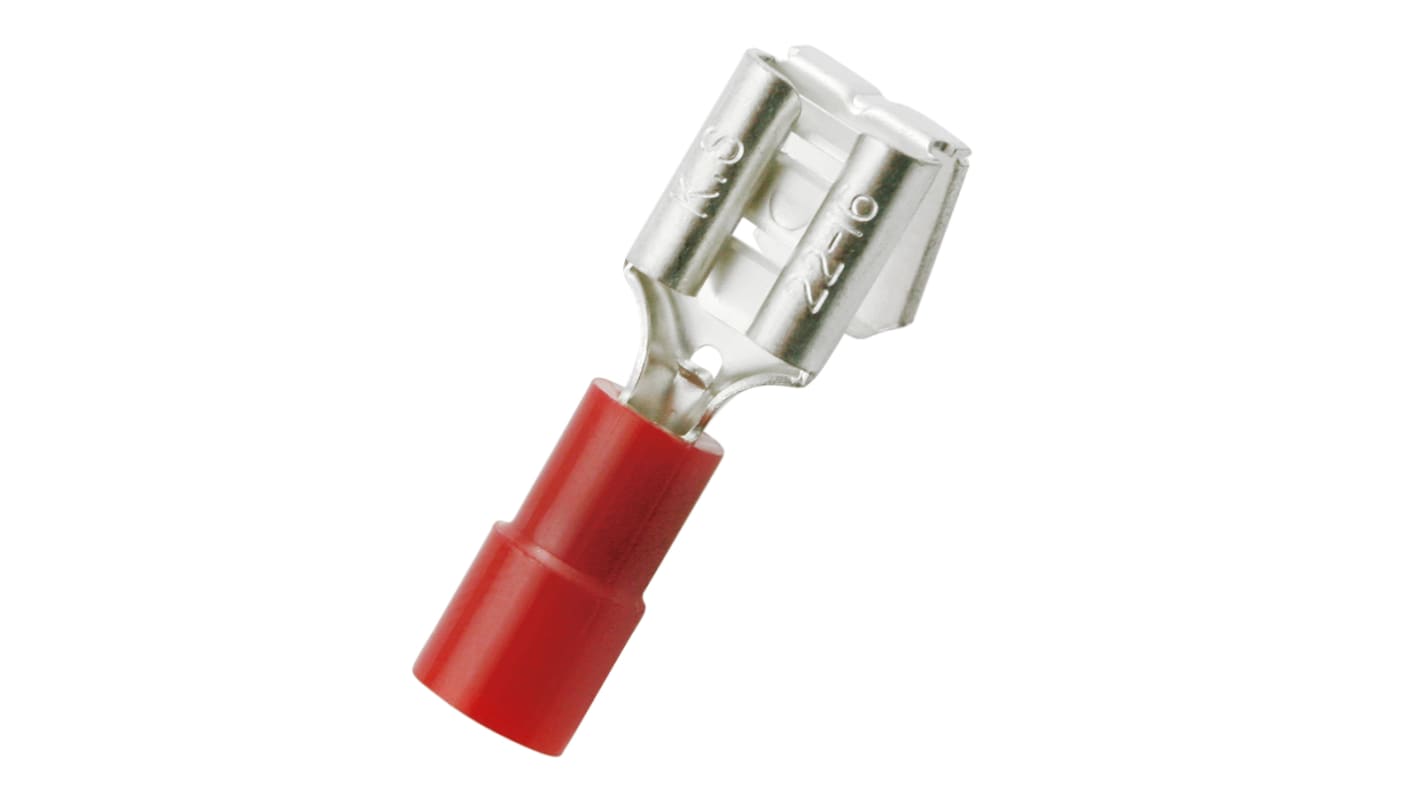

RS PRO Red Insulated Female Spade Connector, Piggyback Terminal, 6.35 x 0.8mm Tab Size, 0.5mm² to 1.5mm²
- RS Stock No.:
- 270-7611
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 1000 units)*
£59.00
(exc. VAT)
£71.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 54,000 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 - 4000 | £0.059 | £59.00 |
| 5000 - 9000 | £0.054 | £54.00 |
| 10000 + | £0.05 | £50.00 |
*price indicative
- RS Stock No.:
- 270-7611
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Spade Connector Type | Piggyback Terminal | |
| Type | Piggyback Terminal | |
| Gender | Female | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Tab Thickness | 0.8mm | |
| Tab Size | 6.35 x 0.8mm | |
| Tab Width | 6.35mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Termination Method | Crimp | |
| Colour | Red | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Wire Size | 0.5 → 1.5 mm², 22 → 16 AWG | |
| Insulation Material | PC | |
| Overall Length | 23mm | |
| Shrouded/Unshrouded | Unshrouded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Spade Connector Type Piggyback Terminal | ||
Type Piggyback Terminal | ||
Gender Female | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Tab Thickness 0.8mm | ||
Tab Size 6.35 x 0.8mm | ||
Tab Width 6.35mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size AWG 22AWG | ||
Termination Method Crimp | ||
Colour Red | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Wire Size 0.5 → 1.5 mm², 22 → 16 AWG | ||
Insulation Material PC | ||
Overall Length 23mm | ||
Shrouded/Unshrouded Unshrouded | ||
- COO (Country of Origin):
- TW
RS PRO Red Insulated Spade Connector, 6.35 x 0.8 mm Tab Size, 0.5 mm² to 1.5 mm²
Use this RS PRO spade connector to connect single wires to relays or components. One of the most popular types of wire connector, its spade design allows terminals to be connected and disconnected quickly and easily while the bolt is still partially screwed in.
Designed for crimping termination, simply deform the connector around a wire using pliers. This method allows for easy, safe and solder-free joints that are mechanically strong. A wire can be easily slotted into the component once the other wire has been crimped on the opposite end. Tin-plated brass contacts resist damage. It also has a rifled barrel, giving it improved contact and tensile strength.
As part of the RS PRO range, this spade connector has been stringently tested for safety and quality. Most commonly found in automotive electronics, it's also commonly used in domestic appliances such as dishwashers.
Features and Benefits
- Red spade connector
- Wire size range of 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG
- Tab size of 0.8 mm x 6.35 mm
- Unshrouded
- Crimp termination method
- Polycarbonate (PC) insulation material
- Brass contacts, tin-plated finish
- Length of 23 mm
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Small Pack Size
Per Unit, RS stock no: 613-9918
Large Pack Size
RS stock no: 270-7611
