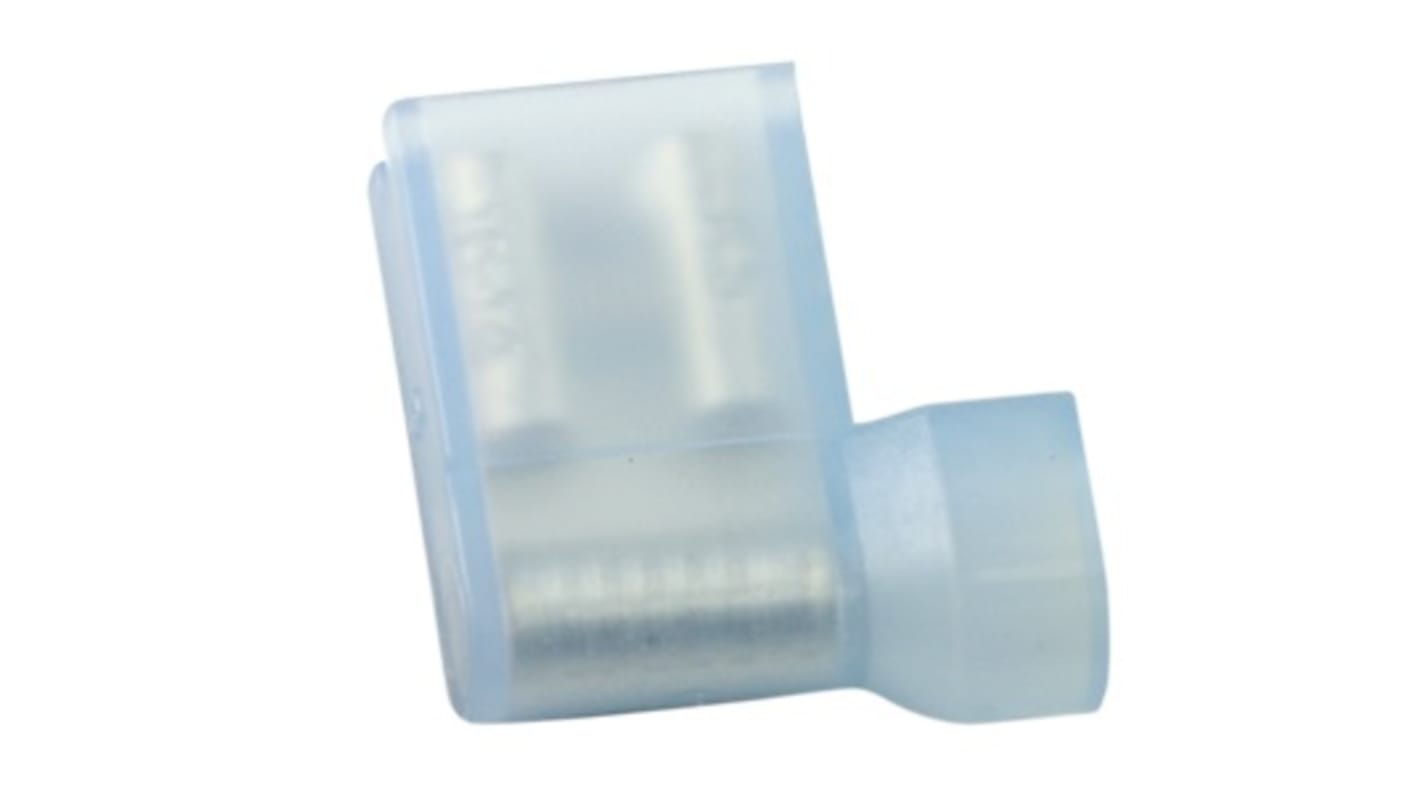

RS PRO Blue Insulated Female Spade Connector, Flag Terminal, 6.35 x 0.8mm Tab Size, 1.5mm² to 2.5mm²
- RS Stock No.:
- 270-7593
- Brand:
- RS PRO
Subtotal (1 bag of 1000 units)*
£85.00
(exc. VAT)
£102.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20,000 unit(s) ready to ship
- Plus 1,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 + | £0.085 | £85.00 |
*price indicative
- RS Stock No.:
- 270-7593
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Flag Terminal | |
| Spade Connector Type | Receptacle | |
| Minimum Wire Size mm² | 1.5mm² | |
| Gender | Female | |
| Maximum Wire Size mm² | 2.5mm² | |
| Tab Width | 6.35mm | |
| Tab Size | 6.35 x 0.8mm | |
| Tab Thickness | 0.8mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 14AWG | |
| Minimum Wire Size AWG | 16AWG | |
| Colour | Blue | |
| Termination Method | Crimp | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Wire Size | 1.5 → 2.5 mm², 16 → 14 AWG | |
| Orientation | Angled | |
| Insulation Material | Nylon | |
| Shrouded/Unshrouded | Shrouded | |
| Overall Length | 15.2mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Flag Terminal | ||
Spade Connector Type Receptacle | ||
Minimum Wire Size mm² 1.5mm² | ||
Gender Female | ||
Maximum Wire Size mm² 2.5mm² | ||
Tab Width 6.35mm | ||
Tab Size 6.35 x 0.8mm | ||
Tab Thickness 0.8mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size AWG 16AWG | ||
Colour Blue | ||
Termination Method Crimp | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Wire Size 1.5 → 2.5 mm², 16 → 14 AWG | ||
Orientation Angled | ||
Insulation Material Nylon | ||
Shrouded/Unshrouded Shrouded | ||
Overall Length 15.2mm | ||
- COO (Country of Origin):
- TW
RS PRO Blue Insulated Spade Connector, 6.35 x 0.8 mm Tab Size, 1.5 mm² to 2.5 mm²
This RS PRO slip-on spade connector allows you to connect and disconnect two wires quickly. It has brass contacts for effective conductivity, as well as a full nylon casing for insulation and electrical short-circuit protection. The insulation produces a 'mini-enclosure' where the two contacts meet, keeping liquids and impurities away from the electrical connection.
For ease of use, it's colour-coded in blue to indicate the necessary wire allowances. It has a 90-degree angle for a more convenient crimp, making it a good choice for difficult-to-reach areas. All you'll need is a pair of crimping pliers for installation. Flag terminals like this one are commonly used in both automotive and industrial settings.
Features and Benefits
- Blue colour
- Brass contact material
- Flag width of 7.6 mm
- Nylon insulation material
- Maximum wire size of 14 AWG (American Wire Gauge)
- Maximum wire size of 2.5 mm²
- Minimum wire size of 16 AWG (American Wire Gauge)
- Minimum wire size of 1.5 mm²
- Overall length of 15.2 mm
- Tab thickness of 0.8 mm
- Tab width of 6.35 mm
- Crimp termination method
- Flag terminal, shrouded type
Small Pack Size
Per Unit, RS stock no: 125-1950
Large Pack Size
RS stock no: 270-7593
