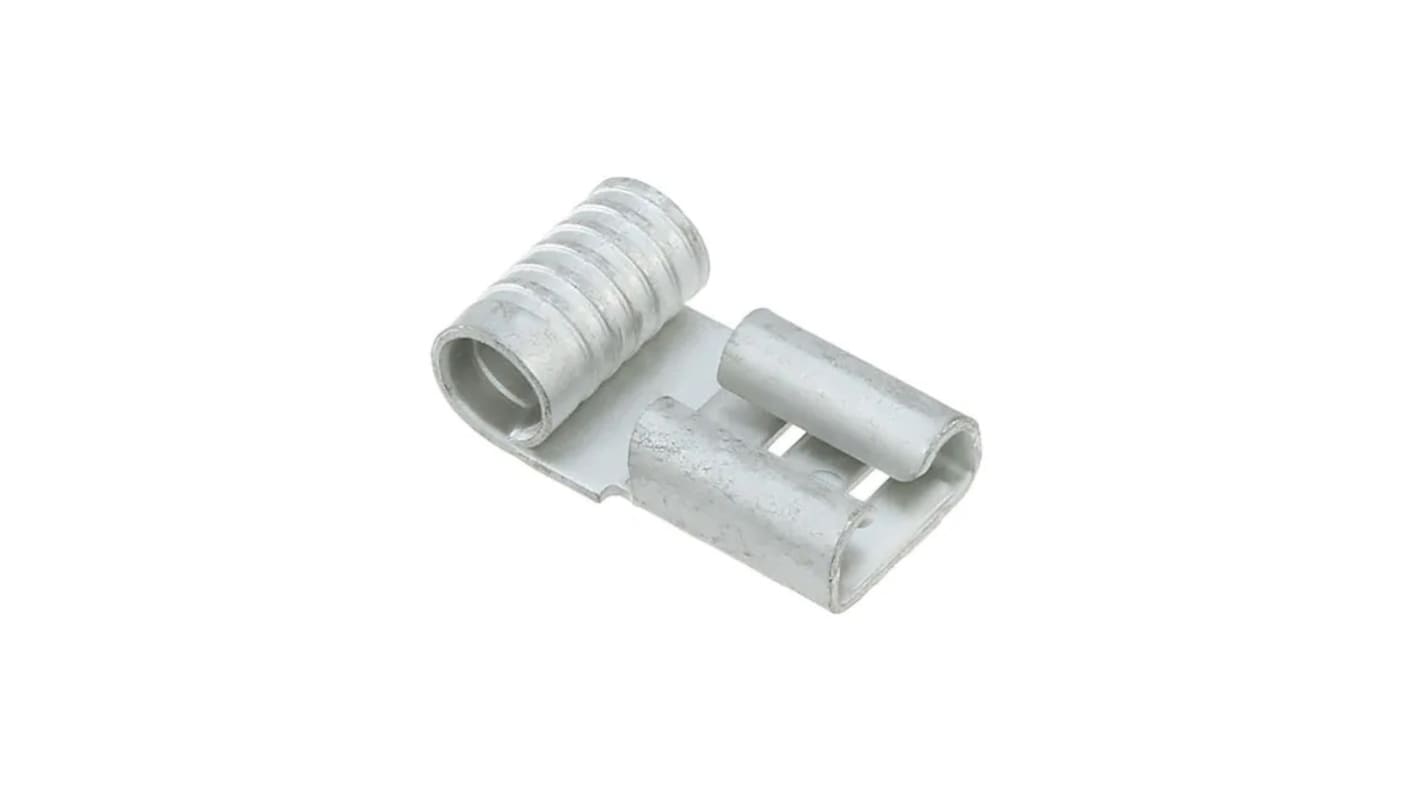

Molex 19008 Uninsulated Female Spade Connector, Flag Terminal, 6.35 x 0.81mm Tab Size
- RS Stock No.:
- 213-5336
- Mfr. Part No.:
- 190080063
- Brand:
- Molex
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 213-5336
- Mfr. Part No.:
- 190080063
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Type | Flag Terminal | |
| Gender | Female | |
| Series | 19008 | |
| Tab Thickness | 0.81mm | |
| Tab Width | 6.35mm | |
| Tab Size | 6.35 x 0.81mm | |
| Insulation | Uninsulated | |
| Maximum Wire Size AWG | 10AWG | |
| Minimum Wire Size AWG | 12AWG | |
| Termination Method | Crimp | |
| Wire Size | 12 AWG | |
| Shrouded/Unshrouded | Unshrouded | |
Select all | ||
|---|---|---|
Brand Molex | ||
Type Flag Terminal | ||
Gender Female | ||
Series 19008 | ||
Tab Thickness 0.81mm | ||
Tab Width 6.35mm | ||
Tab Size 6.35 x 0.81mm | ||
Insulation Uninsulated | ||
Maximum Wire Size AWG 10AWG | ||
Minimum Wire Size AWG 12AWG | ||
Termination Method Crimp | ||
Wire Size 12 AWG | ||
Shrouded/Unshrouded Unshrouded | ||
- COO (Country of Origin):
- US
Molex 19008 Series Spade Connector, 12 AWG Minimum Wire size, 10 AWG Maximum Wire size - 190080063
This spade connector is a type of quick disconnect terminal designed for ease of connection and disconnection in various electrical applications. It features a female flag terminal configuration, accommodating wire sizes from 3.30mm² to 5mm², specifically suitable for 10 AWG and 12 AWG wiring. The uninsulated design ensures compatibility with numerous setups, while the quick disconnect feature provides seamless connectivity. Crafted from brass and plated with tin, this connector offers durability and reliable performance in challenging environments.
Features & Benefits
• Quick disconnect design simplifies electrical connections
• Accepts wire sizes of 10 AWG and 12 AWG
• Brass construction ensures longevity and corrosion resistance
• Uninsulated type enables versatility in applications
• Right-angle orientation optimises space utilisation
• Tab size designed for secure connections
• Accepts wire sizes of 10 AWG and 12 AWG
• Brass construction ensures longevity and corrosion resistance
• Uninsulated type enables versatility in applications
• Right-angle orientation optimises space utilisation
• Tab size designed for secure connections
Applications
• Used for automotive wiring harnesses
• Ideal for connections in control panels
• Utilised in industrial machinery wiring
• Suitable for various electronic devices
• Effective in automation systems for reliable connectivity
• Ideal for connections in control panels
• Utilised in industrial machinery wiring
• Suitable for various electronic devices
• Effective in automation systems for reliable connectivity
What is the maximum wire size compatible with this connector?
The maximum wire size that can be accommodated is 5mm² or 10 AWG, ensuring efficient connectivity while maintaining performance standards.
How does the uninsulated design impact the connector's use?
The uninsulated design allows for a broader
What materials are used in the construction of this connector?
It is made from brass for the body, with a tin plating that enhances corrosion resistance and improves conductivity, ensuring reliable connections over time.
Can this connector be used in outdoor applications?
While it is designed for durability, it is best suited for indoor use without additional protection due to its uninsulated nature, which may expose it to environmental factors.
What crimping tools are suitable for this connector?
Crimping tools specifically designed for quick disconnect terminals should be used to ensure optimal performance and secure connections when terminating wires to the connector.
