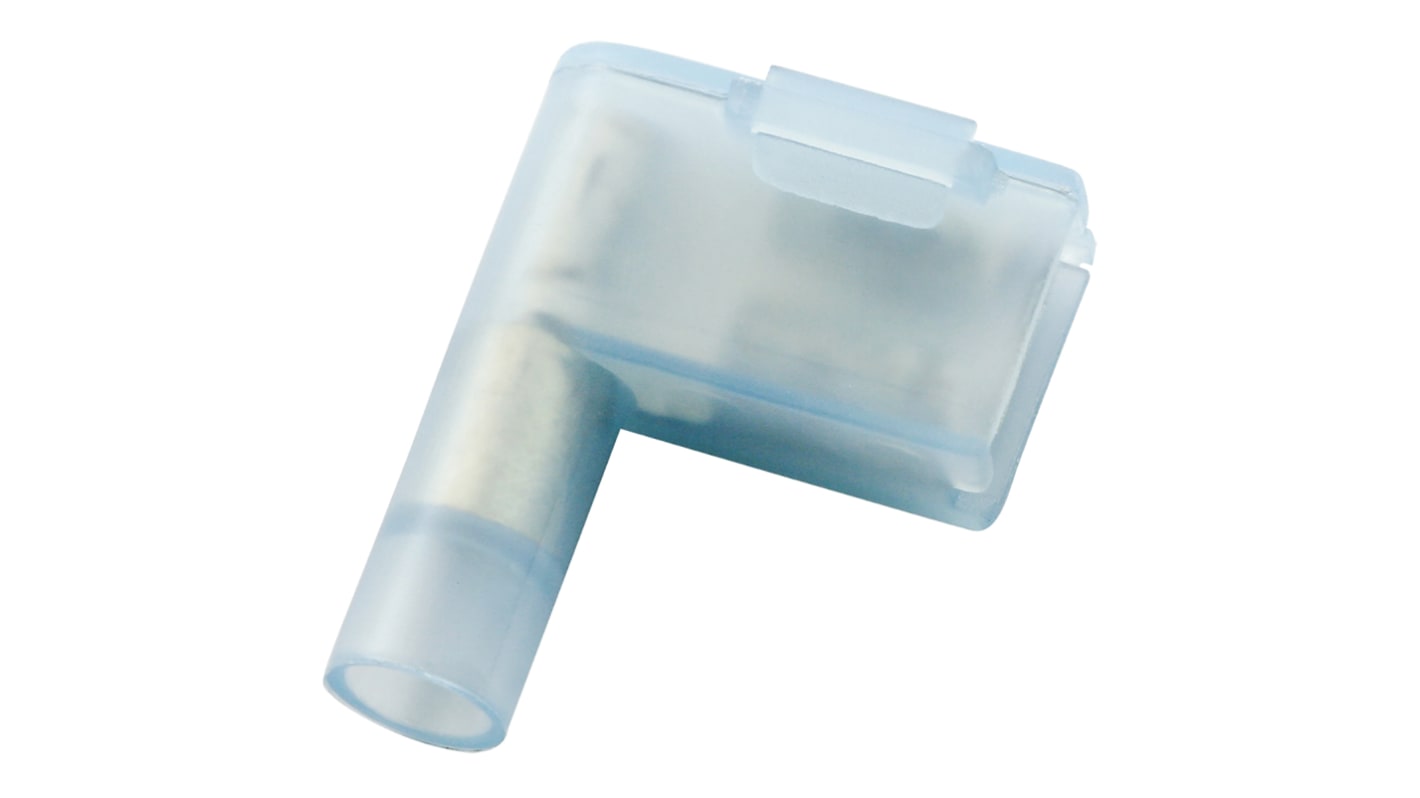

RS PRO Blue Insulated Female Spade Connector, Double Crimp, 6.35 x 0.8mm Tab Size, 1.5mm² to 2.5mm²
- RS Stock No.:
- 178-8346
- Brand:
- RS PRO
Save 28% when you buy 10000 units
Subtotal (1 bag of 100 units)*
£15.10
(exc. VAT)
£18.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10,600 unit(s) ready to ship
- Plus 2,900 unit(s) ready to ship from another location
- Plus 4,000 unit(s) shipping from 23 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | £0.151 | £15.10 |
| 1000 - 1900 | £0.138 | £13.80 |
| 2000 - 4900 | £0.126 | £12.60 |
| 5000 - 9900 | £0.116 | £11.60 |
| 10000 + | £0.108 | £10.80 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£0.093
(exc. VAT)
£0.112
(inc. VAT)
- RS Stock No.:
- 178-8346
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Spade Connector Type | Flag Terminal | |
| Type | Double Crimp | |
| Minimum Wire Size mm² | 1.5mm² | |
| Gender | Female | |
| Maximum Wire Size mm² | 2.5mm² | |
| Tab Width | 6.35mm | |
| Tab Thickness | 0.8mm | |
| Tab Size | 6.35 x 0.8mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 14AWG | |
| Minimum Wire Size AWG | 16AWG | |
| Termination Method | Crimp | |
| Colour | Blue | |
| Contact Material | Brass, Copper | |
| Contact Plating | Tin | |
| Wire Size | 1.5 → 2.5 mm², 16 → 14 AWG | |
| Orientation | Angled | |
| Insulation Material | Nylon | |
| Shrouded/Unshrouded | Shrouded | |
| Overall Length | 20.8mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Spade Connector Type Flag Terminal | ||
Type Double Crimp | ||
Minimum Wire Size mm² 1.5mm² | ||
Gender Female | ||
Maximum Wire Size mm² 2.5mm² | ||
Tab Width 6.35mm | ||
Tab Thickness 0.8mm | ||
Tab Size 6.35 x 0.8mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size AWG 16AWG | ||
Termination Method Crimp | ||
Colour Blue | ||
Contact Material Brass, Copper | ||
Contact Plating Tin | ||
Wire Size 1.5 → 2.5 mm², 16 → 14 AWG | ||
Orientation Angled | ||
Insulation Material Nylon | ||
Shrouded/Unshrouded Shrouded | ||
Overall Length 20.8mm | ||
- COO (Country of Origin):
- TW
The RS PRO Spade connector is a flag terminal type connector with length of 20.8mm and maximum wire size of 14AWG.
Termination Method: Crimp
Gender: Female
Gender: Female
