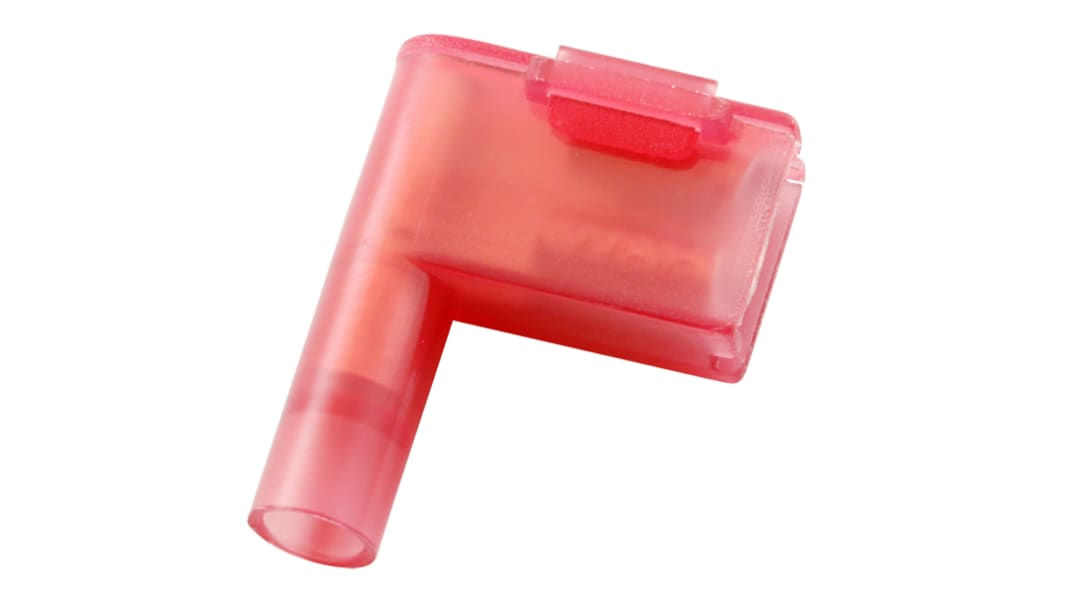

RS PRO Red Insulated Female Spade Connector, Double Crimp, 6.35 x 0.8mm Tab Size, 0.5mm² to 0.75mm²
- RS Stock No.:
- 178-8345
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£15.50
(exc. VAT)
£18.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8,300 unit(s) ready to ship
- Plus 1,900 unit(s) ready to ship from another location
- Plus 6,000 unit(s) shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | £0.155 | £15.50 |
| 1000 - 1900 | £0.141 | £14.10 |
| 2000 - 4900 | £0.129 | £12.90 |
| 5000 - 9900 | £0.119 | £11.90 |
| 10000 + | £0.111 | £11.10 |
*price indicative
- RS Stock No.:
- 178-8345
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Double Crimp | |
| Spade Connector Type | Flag Terminal | |
| Minimum Wire Size mm² | 0.5mm² | |
| Gender | Female | |
| Maximum Wire Size mm² | 0.75mm² | |
| Tab Size | 6.35 x 0.8mm | |
| Tab Width | 6.35mm | |
| Tab Thickness | 0.8mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Termination Method | Crimp | |
| Colour | Red | |
| Contact Material | Brass, Copper | |
| Contact Plating | Tin | |
| Wire Size | 0.5 → 0.75 mm², 22 → 18 AWG | |
| Orientation | Angled | |
| Insulation Material | Nylon | |
| Overall Length | 20.8mm | |
| Shrouded/Unshrouded | Shrouded | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Double Crimp | ||
Spade Connector Type Flag Terminal | ||
Minimum Wire Size mm² 0.5mm² | ||
Gender Female | ||
Maximum Wire Size mm² 0.75mm² | ||
Tab Size 6.35 x 0.8mm | ||
Tab Width 6.35mm | ||
Tab Thickness 0.8mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 18AWG | ||
Termination Method Crimp | ||
Colour Red | ||
Contact Material Brass, Copper | ||
Contact Plating Tin | ||
Wire Size 0.5 → 0.75 mm², 22 → 18 AWG | ||
Orientation Angled | ||
Insulation Material Nylon | ||
Overall Length 20.8mm | ||
Shrouded/Unshrouded Shrouded | ||
- COO (Country of Origin):
- TW
The RS PRO Spade connector is a flag terminal type connector with length of 20.8mm and maximum wire size of 18AWG.
Termination Method: Crimp
Gender: Female
Gender: Female
