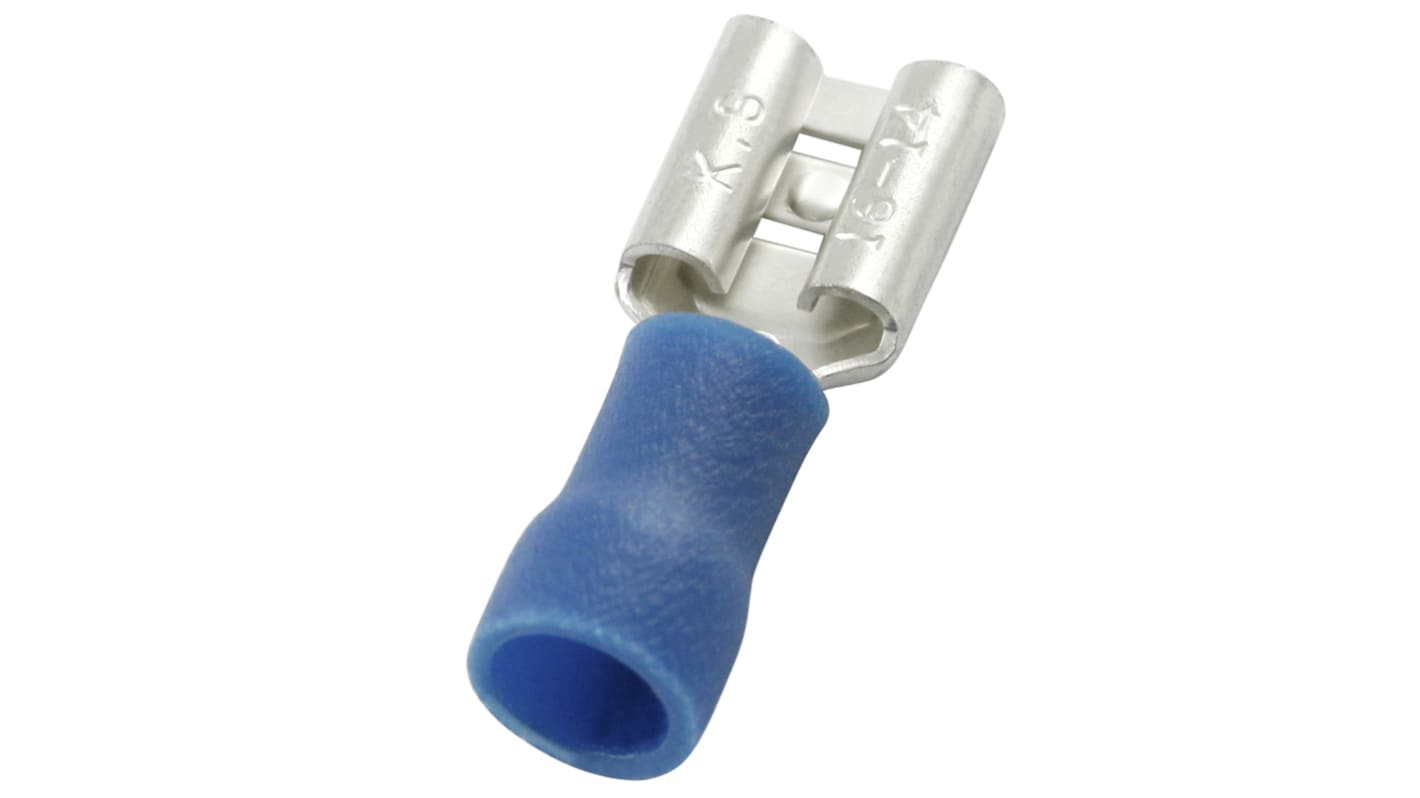

RS PRO Blue Insulated Female Spade Connector, Receptacle, 0.8 x 6.35mm Tab Size, 1.5mm² to 2.5mm²
- RS Stock No.:
- 178-8332
- Brand:
- RS PRO
1800 In stock - FREE next working day delivery available
3300 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Bag of 100)
£0.054
(exc. VAT)
£0.065
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | £0.054 | £5.40 |
| 1000 - 1900 | £0.049 | £4.90 |
| 2000 - 4900 | £0.045 | £4.50 |
| 5000 - 9900 | £0.042 | £4.20 |
| 10000 + | £0.038 | £3.80 |
| *price indicative | ||
- RS Stock No.:
- 178-8332
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO VINYL-INSULATED FEMALE DISCONNECTORS
Specifications
Attribute | Value |
|---|---|
| Type | Receptacle |
| Minimum Wire Size mm² | 1.5mm² |
| Gender | Female |
| Maximum Wire Size mm² | 2.5mm² |
| Tab Size | 0.8 x 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Width | 6.35mm |
| Insulation | Insulated |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Termination Method | Crimp |
| Colour | Blue |
| Contact Material | Brass |
| Wire Size | 1.5 → 2.5 mm², 16 → 14 AWG |
| Insulation Material | Vinyl |
| Overall Length | 20.5mm |
