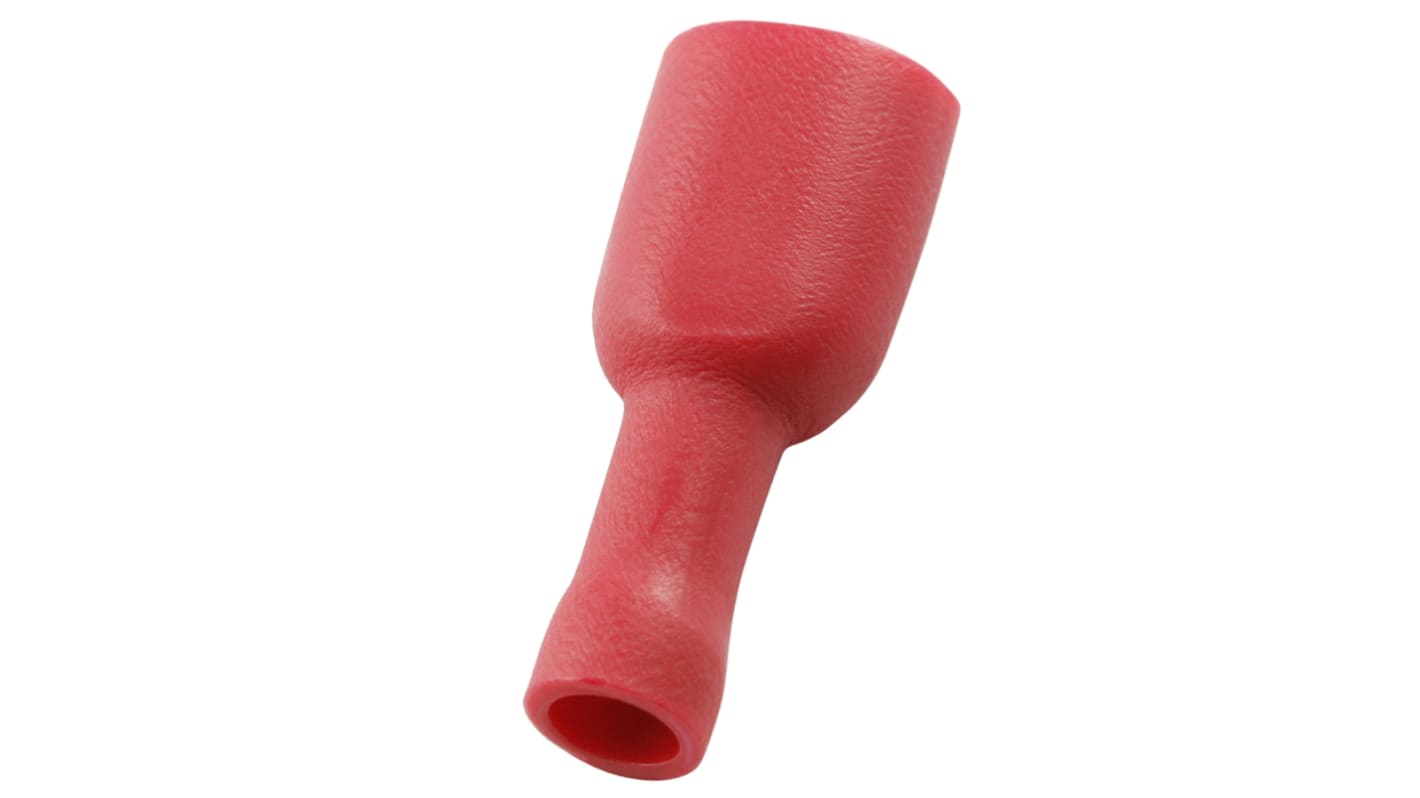

RS PRO Red Insulated Female Spade Connector, Receptacle, 0.8 x 6.35mm Tab Size, 0.5mm² to 1.5mm²
- RS Stock No.:
- 178-8312
- Distrelec Article No.:
- 304-18-206
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£6.90
(exc. VAT)
£8.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 27,500 unit(s) ready to ship
- Plus 2,000 unit(s) ready to ship from another location
- Plus 20,000 unit(s) shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | £0.069 | £6.90 |
| 1000 - 1900 | £0.063 | £6.30 |
| 2000 - 4900 | £0.057 | £5.70 |
| 5000 - 9900 | £0.053 | £5.30 |
| 10000 + | £0.048 | £4.80 |
*price indicative
- RS Stock No.:
- 178-8312
- Distrelec Article No.:
- 304-18-206
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Receptacle | |
| Spade Connector Type | Receptacle | |
| Minimum Wire Size mm² | 0.5mm² | |
| Gender | Female | |
| Maximum Wire Size mm² | 1.5mm² | |
| Tab Thickness | 0.8mm | |
| Tab Width | 6.35mm | |
| Tab Size | 0.8 x 6.35mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Termination Method | Crimp | |
| Colour | Red | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Wire Size | 0.5 → 1.5 mm², 22 → 16 AWG | |
| Orientation | Straight | |
| Insulation Material | Vinyl | |
| Overall Length | 22mm | |
| Shrouded/Unshrouded | Shrouded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Receptacle | ||
Spade Connector Type Receptacle | ||
Minimum Wire Size mm² 0.5mm² | ||
Gender Female | ||
Maximum Wire Size mm² 1.5mm² | ||
Tab Thickness 0.8mm | ||
Tab Width 6.35mm | ||
Tab Size 0.8 x 6.35mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Termination Method Crimp | ||
Colour Red | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Wire Size 0.5 → 1.5 mm², 22 → 16 AWG | ||
Orientation Straight | ||
Insulation Material Vinyl | ||
Overall Length 22mm | ||
Shrouded/Unshrouded Shrouded | ||
- COO (Country of Origin):
- TW
RS PRO Red Insulated Female Spade Connector - 0.5 → 1.5 mm², 22 → 16 AWG
Introducing the RS PRO vinyl insulated spade connector, the ultimate solution for hassle-free wire connections. Crafted with premium brass terminals with sleeve and barrel, this female receptacle guarantees reliable conductivity with every use. Additionally, the vinyl insulation provides protection for the wires. Trust in its quality and performance for seamless electrical connections.
Features and Benefits
- Insulation material: Vinyl
- Terminal material: Brass
- Insulation colour: Red
- Terminal barrel i.d.: C=1.7mm
- Maximum electrical rating: 75°C 300 volts max.
Applications
- Electrical Servicing
- Automotive
