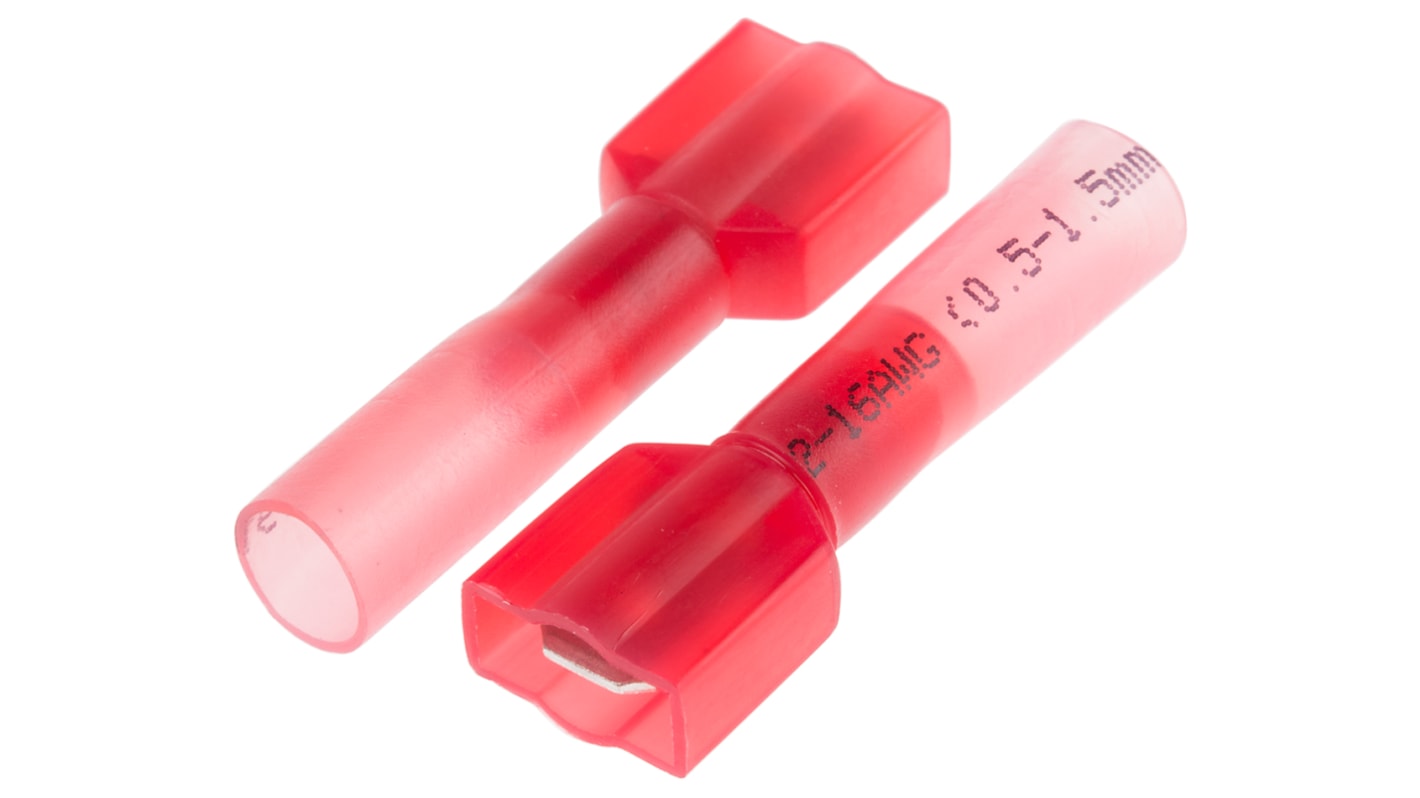

RS PRO Red Insulated Male Spade Connector, Heat Shrinkable, 6.35 x 0.8mm Tab Size, 0.5mm² to 1.5mm²
- RS Stock No.:
- 125-1977
- Brand:
- RS PRO
Save 44% when you buy 10000 units
Subtotal (1 pack of 100 units)*
£53.20
(exc. VAT)
£63.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,300 unit(s) ready to ship
- Plus 200 unit(s) ready to ship from another location
- Plus 2,400 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.532 | £53.20 |
| 500 - 2400 | £0.443 | £44.30 |
| 2500 - 4900 | £0.38 | £38.00 |
| 5000 - 9900 | £0.332 | £33.20 |
| 10000 + | £0.296 | £29.60 |
*price indicative
- RS Stock No.:
- 125-1977
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Spade Connector Type | Tab Terminal | |
| Type | Heat Shrinkable | |
| Minimum Wire Size mm² | 0.5mm² | |
| Gender | Male | |
| Maximum Wire Size mm² | 1.5mm² | |
| Tab Width | 6.35mm | |
| Tab Size | 6.35 x 0.8mm | |
| Tab Thickness | 0.8mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Termination Method | Crimp | |
| Colour | Red | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Wire Size | 0.5 → 1.5 mm², 22 → 16 AWG | |
| Insulation Material | HDPE, Nylon | |
| Shrouded/Unshrouded | Shrouded | |
| Overall Length | 38.5mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Spade Connector Type Tab Terminal | ||
Type Heat Shrinkable | ||
Minimum Wire Size mm² 0.5mm² | ||
Gender Male | ||
Maximum Wire Size mm² 1.5mm² | ||
Tab Width 6.35mm | ||
Tab Size 6.35 x 0.8mm | ||
Tab Thickness 0.8mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size AWG 22AWG | ||
Termination Method Crimp | ||
Colour Red | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Wire Size 0.5 → 1.5 mm², 22 → 16 AWG | ||
Insulation Material HDPE, Nylon | ||
Shrouded/Unshrouded Shrouded | ||
Overall Length 38.5mm | ||
- COO (Country of Origin):
- TW
RS Pro Fully Insulated Heat Shrink Tab Wire Terminals
RS Pro range of fully insulated heat shrink tab wire terminals made from tin plated brass. These heat shrink tab connectors have a high density PE (polyethylene) heat shrink sleeve and nylon insulation which are colour coded to correspond with the wire size they are used with.
