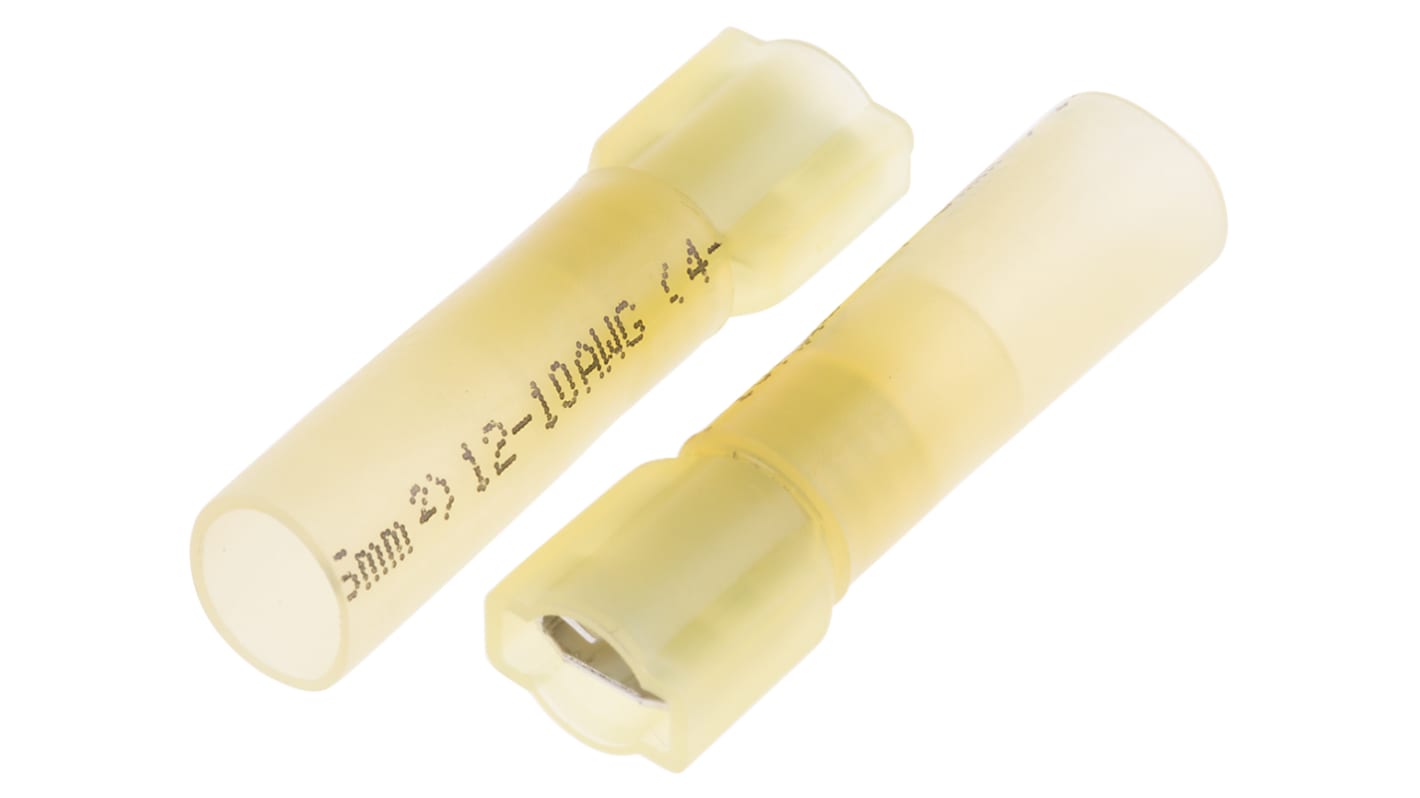

RS PRO Yellow Insulated Female Spade Connector, Heat Shrinkable, 6.35 x 0.8mm Tab Size, 4mm² to 6mm²
- RS Stock No.:
- 125-1976
- Distrelec Article No.:
- 304-25-288
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 100 units)*
£55.10
(exc. VAT)
£66.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 700 unit(s) ready to ship
- Plus 1,500 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.551 | £55.10 |
| 500 - 2400 | £0.459 | £45.90 |
| 2500 - 4900 | £0.394 | £39.40 |
| 5000 - 9900 | £0.345 | £34.50 |
| 10000 + | £0.317 | £31.70 |
*price indicative
- RS Stock No.:
- 125-1976
- Distrelec Article No.:
- 304-25-288
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Heat Shrinkable | |
| Spade Connector Type | Receptacle | |
| Minimum Wire Size mm² | 4mm² | |
| Gender | Female | |
| Maximum Wire Size mm² | 6mm² | |
| Tab Thickness | 0.8mm | |
| Tab Width | 6.35mm | |
| Tab Size | 6.35 x 0.8mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 10AWG | |
| Minimum Wire Size AWG | 12AWG | |
| Termination Method | Crimp | |
| Colour | Yellow | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Wire Size | 4 → 6 mm², 12 → 10 AWG | |
| Insulation Material | HDPE, Nylon | |
| Overall Length | 37.0mm | |
| Shrouded/Unshrouded | Shrouded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Heat Shrinkable | ||
Spade Connector Type Receptacle | ||
Minimum Wire Size mm² 4mm² | ||
Gender Female | ||
Maximum Wire Size mm² 6mm² | ||
Tab Thickness 0.8mm | ||
Tab Width 6.35mm | ||
Tab Size 6.35 x 0.8mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 10AWG | ||
Minimum Wire Size AWG 12AWG | ||
Termination Method Crimp | ||
Colour Yellow | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Wire Size 4 → 6 mm², 12 → 10 AWG | ||
Insulation Material HDPE, Nylon | ||
Overall Length 37.0mm | ||
Shrouded/Unshrouded Shrouded | ||
- COO (Country of Origin):
- TW
RS Pro Fully Insulated Heat Shrink Receptacle Wire Terminals
RS Pro range of fully insulated heat shrink crimp receptacle wire terminals made from tin plated brass. These heat shrink receptacle connectors have a high density PE (polyethylene) heat shrink sleeve and nylon insulation which are colour coded to correspond with the wire size they are used with.
RS Heatshrinkable
