Pfannenberg PY X-MA-05 Series Amber Sounder-Beacon Combination, IP66 External Lug, Internal Hole 100 dB @ 1m
- RS Stock No.:
- 846-3585
- Distrelec Article No.:
- 303-69-891
- Mfr. Part No.:
- 21554104000
- Brand:
- Pfannenberg
Subtotal (1 unit)*
£310.74
(exc. VAT)
£372.89
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £310.74 |
*price indicative
- RS Stock No.:
- 846-3585
- Distrelec Article No.:
- 303-69-891
- Mfr. Part No.:
- 21554104000
- Brand:
- Pfannenberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Product Type | Sounder-Beacon Combination | |
| Lens Colour | Amber | |
| Minimum Sound Level | -20dB | |
| Current Type | AC | |
| Light Effect | Flashing | |
| Sounder Type | Flashing Light Sounder | |
| Mount Type | External Lug, Internal Hole | |
| Terminal Type | Wire | |
| Series | PY X-MA-05 | |
| Bulb Type | Xenon | |
| Housing Colour | Red | |
| Minimum Operating Temperature | -40°C | |
| Sound Level at 1m | 100dB | |
| Maximum Operating Temperature | 55°C | |
| Maximum Sound Level | 100dB | |
| IP Rating | IP66 | |
| Number of Tones | 8 | |
| Hazardous Area Certification | NO | |
| Housing Material | ABS/Polycarbonate | |
| Standards/Approvals | EN 60204-1, DIN EN ISO 7731, DIN-VDE 0837, EN 60529, EN 60825-1, IEC 825 | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Product Type Sounder-Beacon Combination | ||
Lens Colour Amber | ||
Minimum Sound Level -20dB | ||
Current Type AC | ||
Light Effect Flashing | ||
Sounder Type Flashing Light Sounder | ||
Mount Type External Lug, Internal Hole | ||
Terminal Type Wire | ||
Series PY X-MA-05 | ||
Bulb Type Xenon | ||
Housing Colour Red | ||
Minimum Operating Temperature -40°C | ||
Sound Level at 1m 100dB | ||
Maximum Operating Temperature 55°C | ||
Maximum Sound Level 100dB | ||
IP Rating IP66 | ||
Number of Tones 8 | ||
Hazardous Area Certification NO | ||
Housing Material ABS/Polycarbonate | ||
Standards/Approvals EN 60204-1, DIN EN ISO 7731, DIN-VDE 0837, EN 60529, EN 60825-1, IEC 825 | ||
- COO (Country of Origin):
- DE

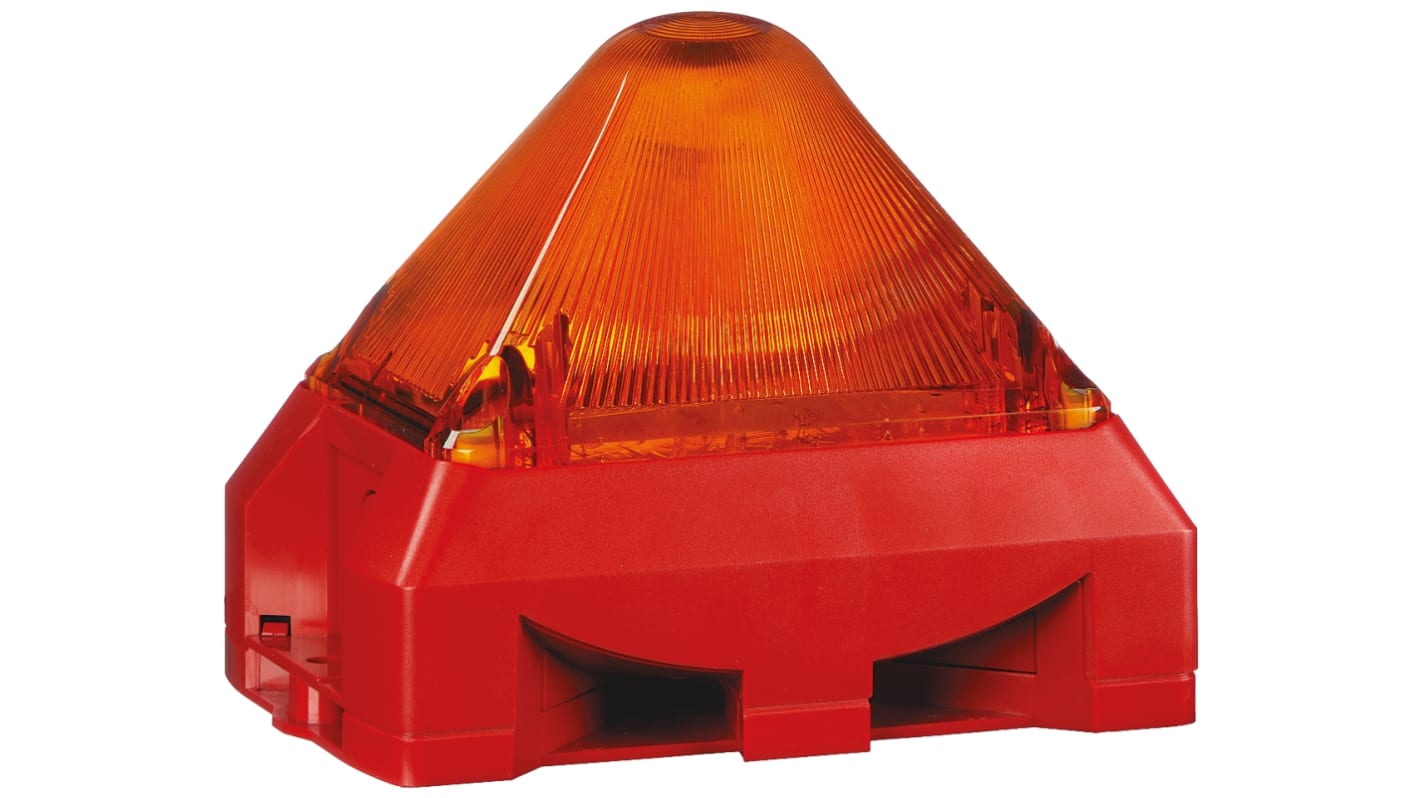

Pfannenberg PYRA Flashing Sounder Beacons, PY-X-MA-05
The PYRA PY-X-MA-05 is an electronic sounder beacon with a 100 dB output and a flashing xenon light effect. It has 8 alarm tones and a 5J flash, with a choice of four different flash rates. The PY X-MA-05 has a large signalling range and is safe and easy to install.
Rectangular PC/ABS blend housing with pyramid style PC lens
Safe - an incorrect installation is virtually impossible
Easy - significantly shorter assembly and installation times
Economical - largest possible signalling range due to effective Xenon technology
Installation options with external lugs or internal holes
Choice of four different flash rates via DIP switch
Suitable for panel mounting
Electronic constant current regulation at 24 V ac/dc devices to avoid load fluctuations
Integrated inrush current limitation and undervoltage detection
Providing full synchronization on multi-flashing light systems
Light and sounder can be controlled separately
8 alarm tones, 100 dB
Visual covering distance of 11 m
IK08 Impact-proof housing
IP66 protection according to EN 60529
5J flash
10 year warranty
Approvals
UL pending.
