Clifford & Snell YL50 Series Magenta Sounder-Beacon Combination, IP66 24V dc Wall, Bulkhead Mount 112 dB @ 1m
- RS Stock No.:
- 264-6086
- Mfr. Part No.:
- 245287
- Brand:
- Clifford & Snell
Subtotal (1 unit)*
£185.38
(exc. VAT)
£222.46
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £185.38 |
*price indicative
- RS Stock No.:
- 264-6086
- Mfr. Part No.:
- 245287
- Brand:
- Clifford & Snell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Clifford & Snell | |
| Product Type | Sounder-Beacon Combination | |
| Lens Colour | Magenta | |
| Minimum Sound Level | -18dB | |
| Current Type | DC | |
| Light Effect | Flashing | |
| Sounder Type | Alarm | |
| Mount Type | Wall, Bulkhead Mount | |
| Series | YL50 | |
| Maximum Supply Voltage | 24V dc | |
| Bulb Type | LED | |
| Sound Level at 1m | 112dB | |
| Minimum Operating Temperature | -35°C | |
| Housing Colour | Red | |
| Maximum Operating Temperature | 70°C | |
| Maximum Sound Level | 112dB | |
| Hazardous Area Certification | NO | |
| IP Rating | IP66 | |
| Number of Tones | 32 | |
| Standards/Approvals | EN 54-3, IEC 60092-504:2016, IEC 60533:2015 | |
| Housing Material | ABS | |
| Select all | ||
|---|---|---|
Brand Clifford & Snell | ||
Product Type Sounder-Beacon Combination | ||
Lens Colour Magenta | ||
Minimum Sound Level -18dB | ||
Current Type DC | ||
Light Effect Flashing | ||
Sounder Type Alarm | ||
Mount Type Wall, Bulkhead Mount | ||
Series YL50 | ||
Maximum Supply Voltage 24V dc | ||
Bulb Type LED | ||
Sound Level at 1m 112dB | ||
Minimum Operating Temperature -35°C | ||
Housing Colour Red | ||
Maximum Operating Temperature 70°C | ||
Maximum Sound Level 112dB | ||
Hazardous Area Certification NO | ||
IP Rating IP66 | ||
Number of Tones 32 | ||
Standards/Approvals EN 54-3, IEC 60092-504:2016, IEC 60533:2015 | ||
Housing Material ABS | ||

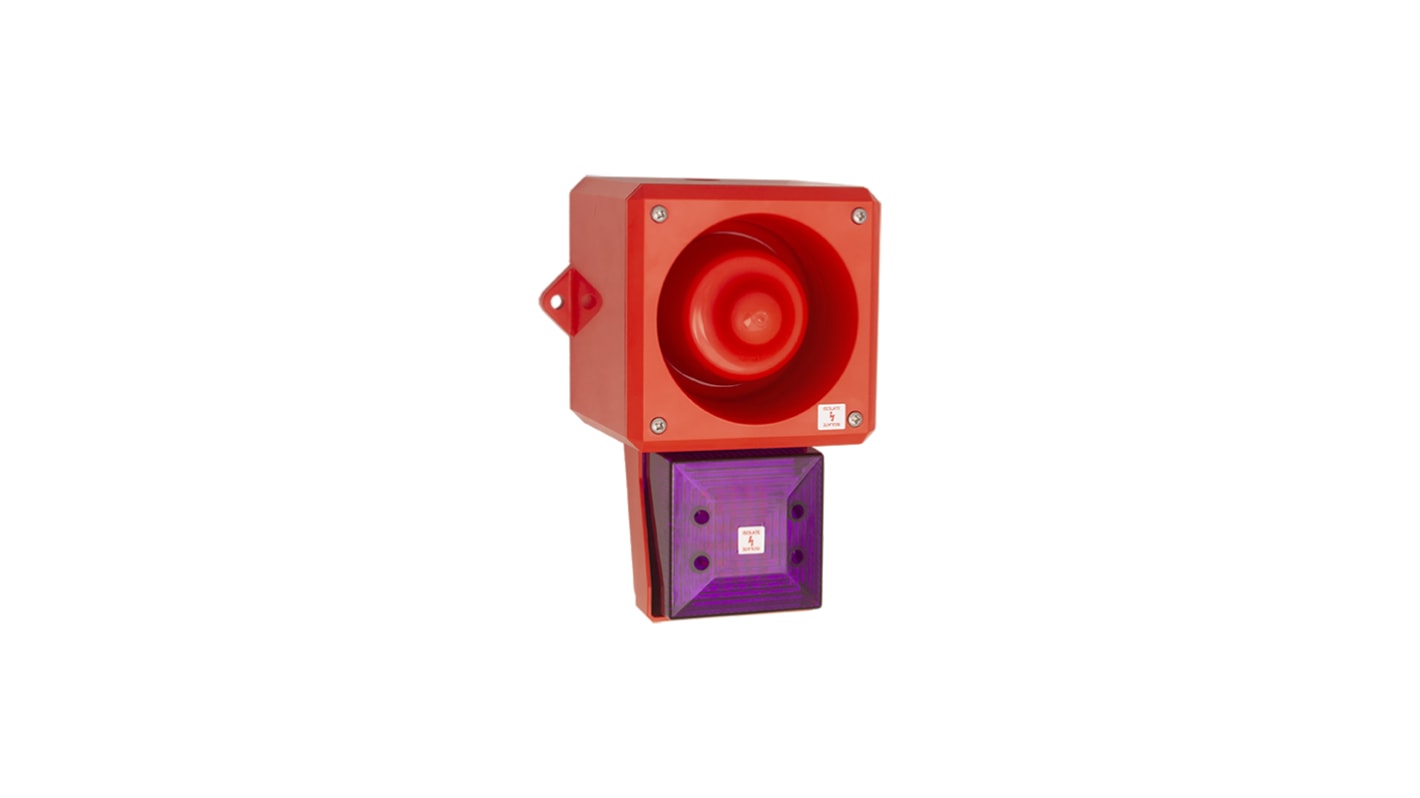

The Clifford & Snell Yodalight YL50 multipurpose audible & visual signalling device designed for use in commercial, light industrial & marine applications. The sounder produces a clear alarm with an intensity of 112 dB from a distance of 1m and it has a choice of 32 tones, so you can differentiate between different types of hazards. The polycarbonate (PC) magenta lens on this device offers UV stability, which guards against fading and warping under direct sunlight. Flame-resistant ABS is used to make the enclosure.
Stainless steel fixings
Max sound output 112 dB(A) at 1m
Red flame enclosure, magenta lens
32 selectable tones
