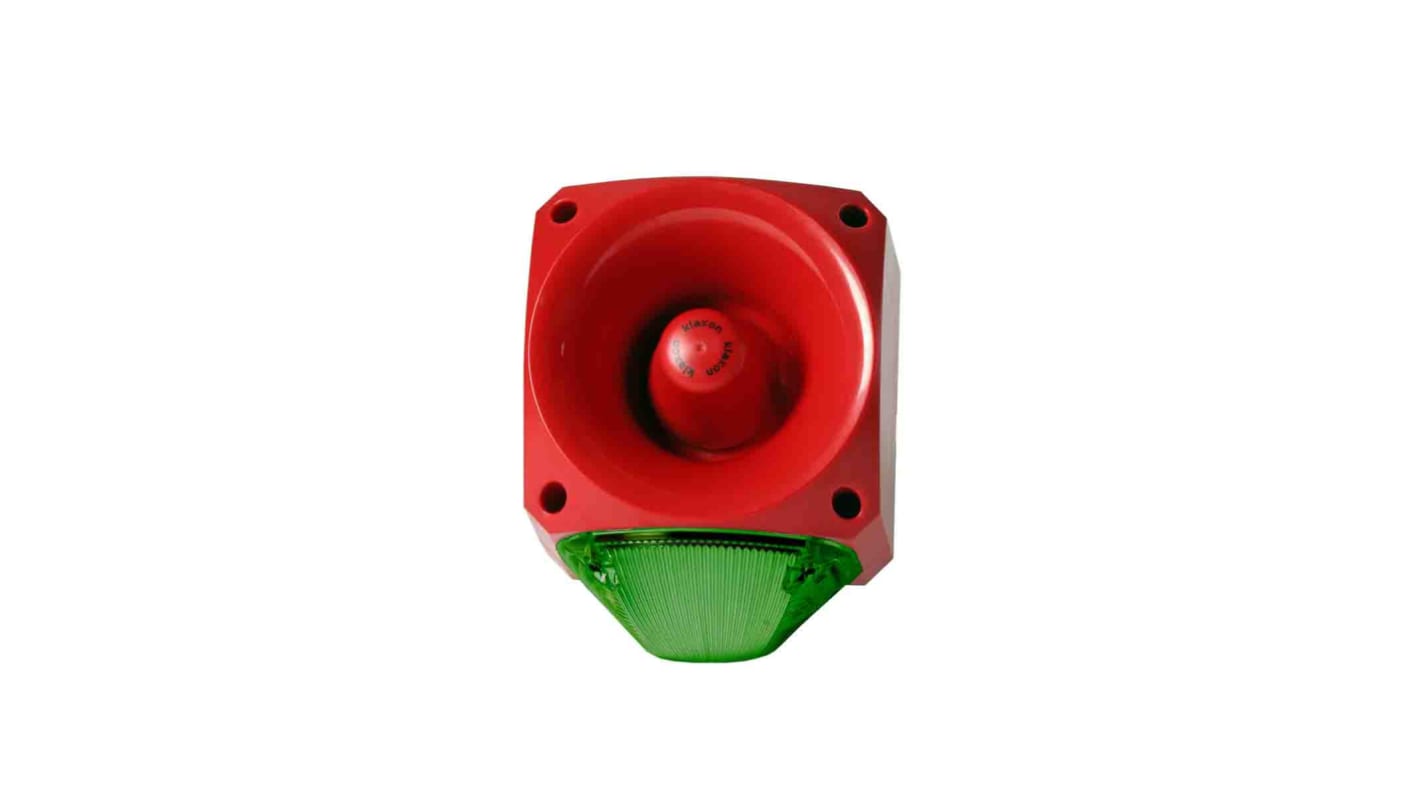

Klaxon Green Sounder Beacon, 110 V ac, 230 V ac, IP66, 113dB at 1 Metre
- RS Stock No.:
- 183-3848
- Mfr. Part No.:
- PNC-0042
- Brand:
- Klaxon
Subtotal (1 unit)*
£166.26
(exc. VAT)
£199.51
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
---|---|
1 + | £166.26 |
*price indicative
- RS Stock No.:
- 183-3848
- Mfr. Part No.:
- PNC-0042
- Brand:
- Klaxon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Klaxon | |
Supply Voltage | 110 V ac, 230 V ac | |
Lens Colour | Green | |
Current Type | AC | |
Sounder Type | Alarm | |
Decibels at 1 Metre | 113dB | |
Bulb Type | Xenon | |
Minimum Decibel | -20dB | |
Maximum Decibel | 113 dB @ 1 m | |
Number Of Tones | 64 | |
IP Rating | IP66 | |
Maximum Temperature | +55°C | |
Minimum Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Klaxon | ||
Supply Voltage 110 V ac, 230 V ac | ||
Lens Colour Green | ||
Current Type AC | ||
Sounder Type Alarm | ||
Decibels at 1 Metre 113dB | ||
Bulb Type Xenon | ||
Minimum Decibel -20dB | ||
Maximum Decibel 113 dB @ 1 m | ||
Number Of Tones 64 | ||
IP Rating IP66 | ||
Maximum Temperature +55°C | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- GB
The Nexus 105 is a high output sounder-beacon designed for industrial applications. Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners enabling faster installation and accurate seal compression for weatherproofing. The combination of powerful sounder and high output xenon beacon ensures a very effective audio-visual signal. 110dB and 120dB units, as well as DC variants, are also available.
High sound output: 113dB (max), 105dB typical
5J xenon beacon
Quarter turn fasteners for ease of installation
First-fix, wire to base technology
Volume control for greater flexibility - 20dB
64 tones
Separate connections for sounder & beacon
Applications - Conveyors, process control alarm, cranes, moving machinery, general signalling, marine
5J xenon beacon
Quarter turn fasteners for ease of installation
First-fix, wire to base technology
Volume control for greater flexibility - 20dB
64 tones
Separate connections for sounder & beacon
Applications - Conveyors, process control alarm, cranes, moving machinery, general signalling, marine
Standards
EN54
