Castle Datalogging Sound Level Meter, 35dB to 140dB, 20kHz max with RS Calibration

RS Stock No.:: 921-3075
Mfr. Part No.:: 01GA216B
Brand:: Castle

Castle Datalogging Sound Level Meter, 35dB to 140dB, 20kHz max with RS Calibration

1 / 4

Subtotal (1 unit)**

£650.00

(exc. VAT)

£780.00

(inc. VAT)

2 In stock for delivery within 3 working days*

2 In stock for delivery within 3 working days

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Not available for guaranteed pre 9am/10am delivery

Units	Per unit
1 +	£650.00

**price indicative

RS Stock No.:: 921-3075
Mfr. Part No.:: 01GA216B
Brand:: Castle

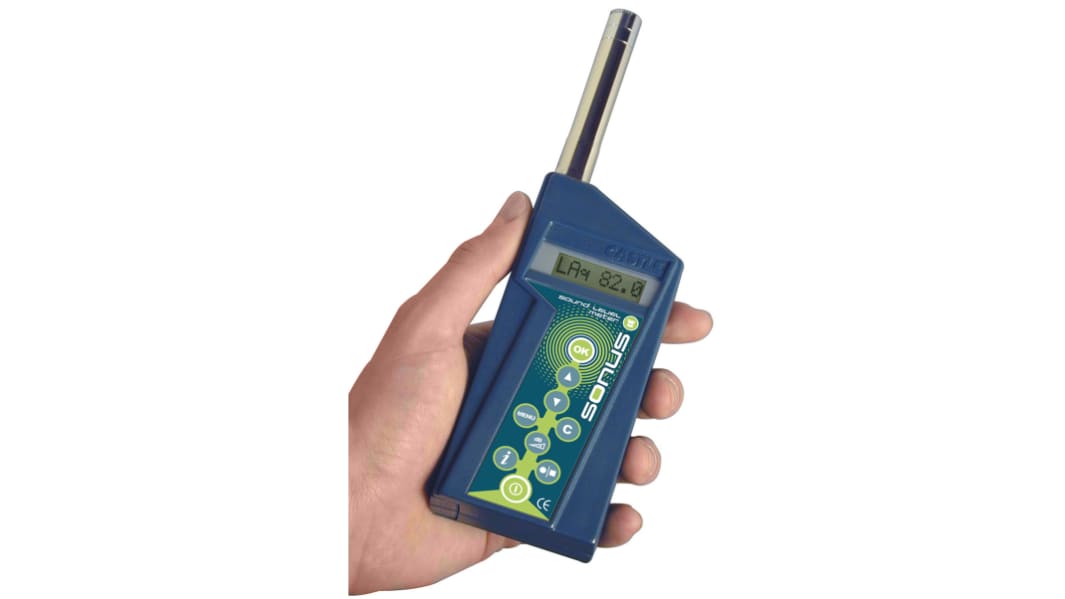

Castle GA216B Sonus Class 2 Sound Pressure Level Meter (non data logging version)

Castle GA216B is designed for general survey health & safety and engineering applications by industrial safety officers, occupational nurses, fire alarm installation & test engineers and industrial engineers. It gives clear results which meet the requirements of international standards. GA216B is a Sonus range entry-level Type 2 sound meter fully compliant with IEC 61672-1:2002. The difference between Type 1 and Type 2 is in the tolerance, for example: at reference frequency 1kHz, tolerance is ±1.1dB (Type 1) and ±1.4dB (Type 2); at 20Hz, tolerance is ±2.5dB (Class 1) and ±3.5dB (Class 2). Compliance with IEC 61672-1:2002 Class 2 and IEC 60651:1979 Type 2 is necessary for carrying out most noise assessment tasks in industry.

Sound Pressure (Lp) to 0.1 dB resolution
'A' and 'C' frequency weighting (toggle)
'Slow' and 'Fast' Time weighting (toggle)
Simultaneous measurement of Lp, Lmax, and Cpeak
Lmax - maximum Lp hold (rms)
Cpeak - maximum peak level
Elapsed time (running time hrs, min, sec)
Over Load and Under Range indication
Housed in tough, crack-resistant ABS plastic
Dimensions 60mm x 30mm (excluding pocket clip) x 135mm (210mm with microphone)
Weight 200g (without battery)

Standards

IEC 61672-1:2002 Class 2, IEC 60651: 1979 Type 2

Castle Sonus B, Class 2 Sound Level Meter with RS Calibration

The Castle SONUS B GA216B sound level meter is designed for general survey work and engineering applications by fire alarm installation & test engineers and industrial engineers. It gives clear results which meet the requirements of international standards. GA216B is a Sonus range entry-level Class 2 sound meter fully compliant with IEC 61672-1:2002.

For fire alarm installation testing, the regulations states that a Class 2 sound meter should be used that is capable of measuring the maximum sound pressure level. The SONUS B is perfect for this application as it meets all of these requirements.

Standards
IEC 61672-1:2002 Class 2, IEC 60651: 1979 Type 2

Housed in tough, crack-resistant ABS plastic
Dimensions 60mm x 30mm (excluding pocket clip) x 135mm (210mm with microphone)
Weight 200g (without battery)

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Castle
	Maximum Sound Level	140dB
	Minimum Sound Level	35dB
	Resolution	0.1 dB
	DOSE Measurement	Yes
	Weighting	A, C
	Display Type	LCD
	Calibrated	RSCAL
	Battery Type	Alkaline, PP3
	Fast/Slow Time Averaging	Both
	Data Logging	Yes
	Maximum Frequency	20kHz
	Minimum Frequency	1 Hz

	Select all
	Brand Castle
	Maximum Sound Level 140dB
	Minimum Sound Level 35dB
	Resolution 0.1 dB
	DOSE Measurement Yes
	Weighting A, C
	Display Type LCD
	Calibrated RSCAL
	Battery Type Alkaline, PP3
	Fast/Slow Time Averaging Both
	Data Logging Yes
	Maximum Frequency 20kHz
	Minimum Frequency 1 Hz
