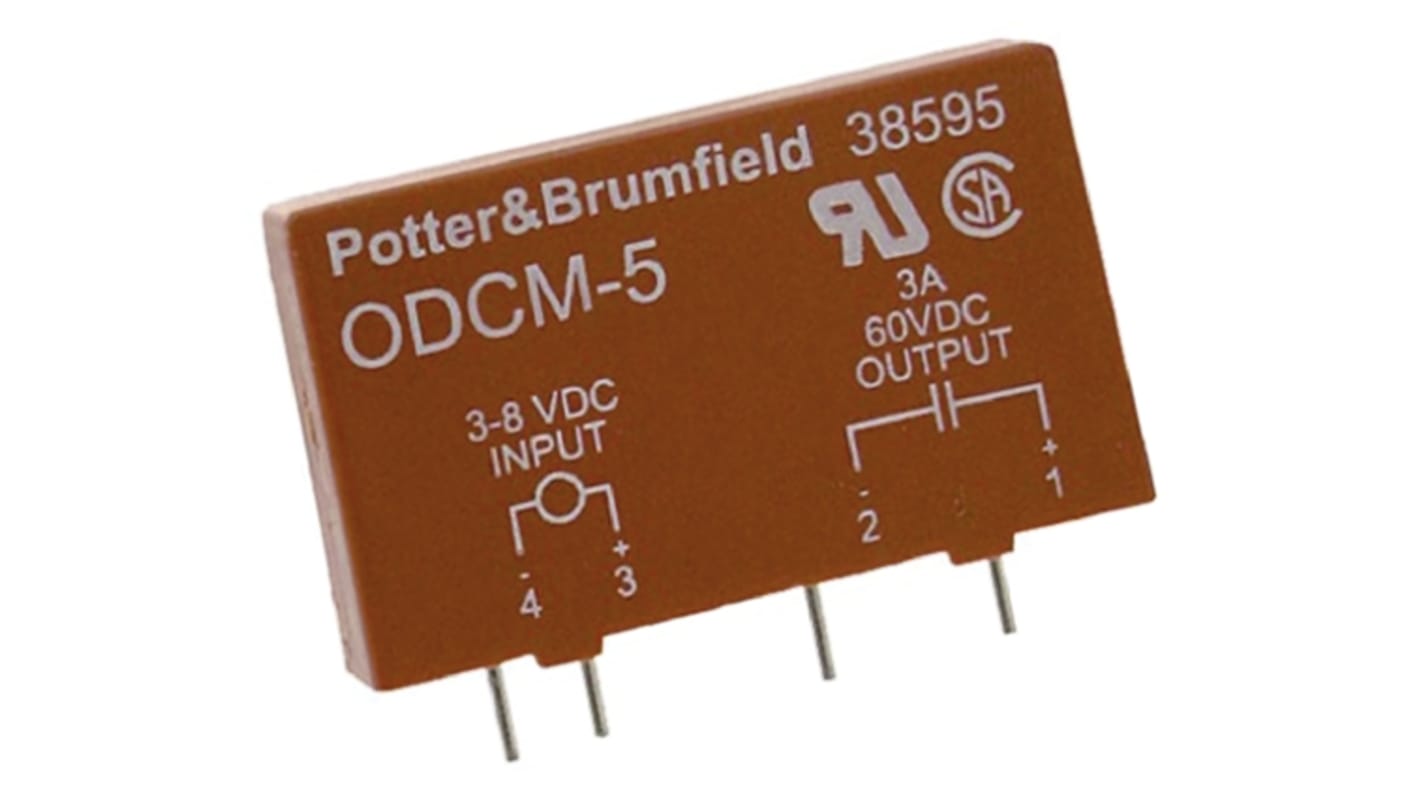

TE Connectivity ODCM Series Solid State Relay, 3 A Load, Through Hole, 60 V dc Load, 8 V dc Control
- RS Stock No.:
- 783-0249
- Mfr. Part No.:
- ODCM-5
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 783-0249
- Mfr. Part No.:
- ODCM-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Load Current | 3 A | |
| Mounting Type | Through Hole | |
| Maximum Load Voltage | 60 V dc | |
| Minimum Load Voltage | 3 V dc | |
| Maximum Control Voltage | 8 V dc | |
| Minimum Control Voltage | 3 V dc | |
| Switching Type | DC | |
| Control Voltage Range | 3 → 8 V dc | |
| Minimum Load Current | 0.01 A | |
| Contact Configuration | SPST | |
| Terminal Type | PCB Pin | |
| Output Device | Transistor | |
| Package Style | Module | |
| Series | ODCM | |
| Load Voltage Range | 3 → 60V dc | |
| Maximum Turn On Time | 0.1ms | |
| Dimensions | 43.18 x 10.16 x 25.4mm | |
| Operating Temperature Range | -30 → +80°C | |
| Depth | 10.16mm | |
| Minimum Operating Temperature | -30°C | |
| Special Features | Color Coded By Function | |
| Off State Leakage Current | 500 μA | |
| Maximum Operating Temperature | +80°C | |
| Length | 43.18mm | |
| Capacitance | 8pF | |
| Height | 25.4mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Load Current 3 A | ||
Mounting Type Through Hole | ||
Maximum Load Voltage 60 V dc | ||
Minimum Load Voltage 3 V dc | ||
Maximum Control Voltage 8 V dc | ||
Minimum Control Voltage 3 V dc | ||
Switching Type DC | ||
Control Voltage Range 3 → 8 V dc | ||
Minimum Load Current 0.01 A | ||
Contact Configuration SPST | ||
Terminal Type PCB Pin | ||
Output Device Transistor | ||
Package Style Module | ||
Series ODCM | ||
Load Voltage Range 3 → 60V dc | ||
Maximum Turn On Time 0.1ms | ||
Dimensions 43.18 x 10.16 x 25.4mm | ||
Operating Temperature Range -30 → +80°C | ||
Depth 10.16mm | ||
Minimum Operating Temperature -30°C | ||
Special Features Color Coded By Function | ||
Off State Leakage Current 500 μA | ||
Maximum Operating Temperature +80°C | ||
Length 43.18mm | ||
Capacitance 8pF | ||
Height 25.4mm | ||
- COO (Country of Origin):
- MX
ODC Series Relay
ODC Series relay from TE Connectivity are solid state and offer a reliable interface between microprocessor- or computer-based control systems and external input devices and loads, these photo-isolated modules feature excellent isolation and transient immunity. On modules of the same voltage type, AC or DC, the output of the output modules is compatible with the input of the input modules, making them ideal for series operation.
Modules are color-coded and packaged in industry standard plug-in enclosure. Units interchange easily without disturbing
wiring. UL recognized, CSA certified.
Modules are color-coded and packaged in industry standard plug-in enclosure. Units interchange easily without disturbing
wiring. UL recognized, CSA certified.
