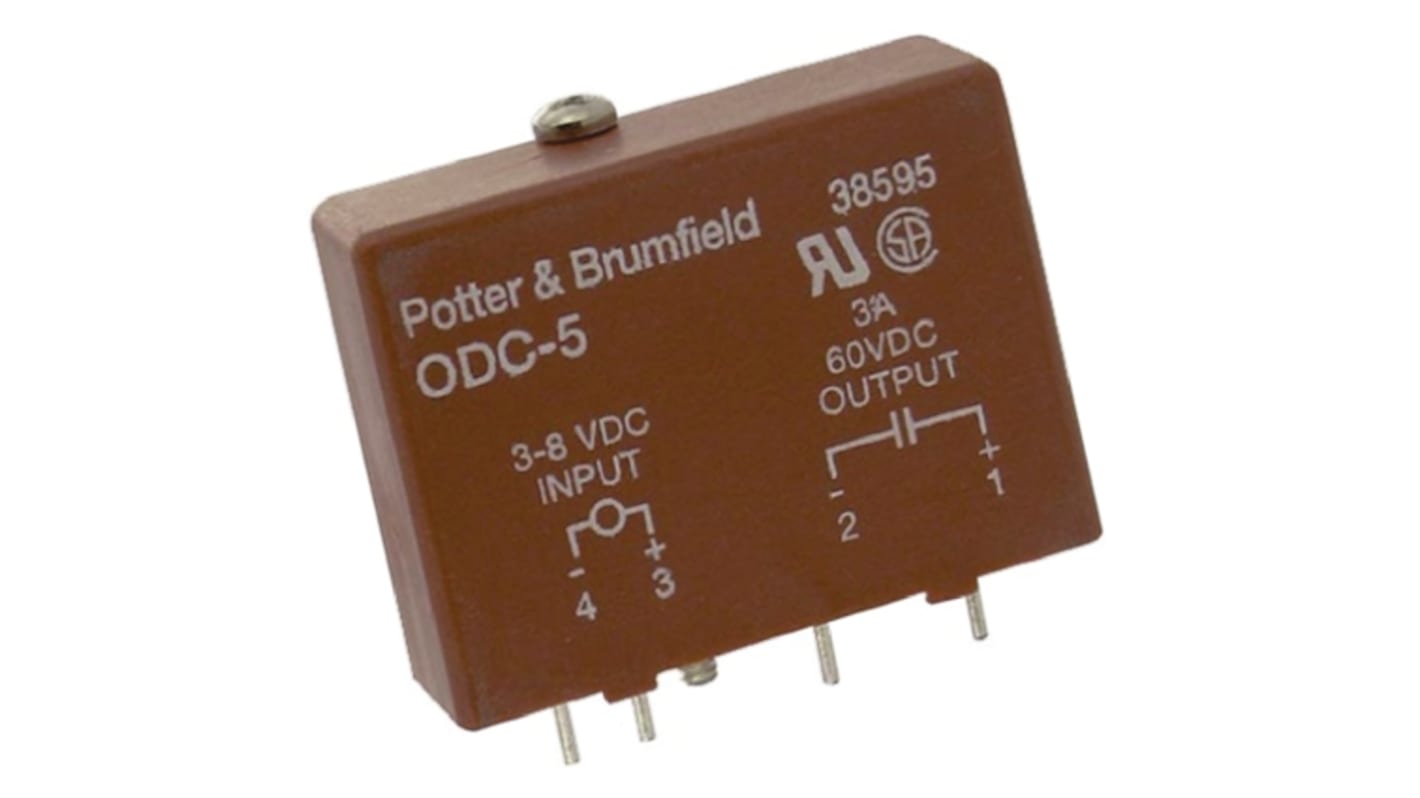

TE Connectivity Solid State Relay, 3 A Load, PCB Mount, 60 V dc Load, 8 V dc Control
- RS Stock No.:
- 783-0246
- Mfr. Part No.:
- ODC5
- Brand:
- TE Connectivity
24 In stock - FREE next working day delivery available
Added
Price Each
£19.77
(exc. VAT)
£23.72
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £19.77 |
| 5 - 9 | £18.80 |
| 10 - 14 | £17.83 |
| 15 - 24 | £16.94 |
| 25 + | £16.10 |
- RS Stock No.:
- 783-0246
- Mfr. Part No.:
- ODC5
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
ODC Series Relay
ODC Series relay from TE Connectivity are solid state and offer a reliable interface between microprocessor- or computer-based control systems and external input devices and loads, these photo-isolated modules feature excellent isolation and transient immunity. On modules of the same voltage type, AC or DC, the output of the output modules is compatible with the input of the input modules, making them ideal for series operation.
Modules are color-coded and packaged in industry standard plug-in enclosure. Units interchange easily without disturbing
wiring. UL recognized, CSA certified.
Modules are color-coded and packaged in industry standard plug-in enclosure. Units interchange easily without disturbing
wiring. UL recognized, CSA certified.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 3 A |
| Mounting Type | PCB Mount |
| Maximum Load Voltage | 60 V dc |
| Minimum Load Voltage | 3 V dc |
| Maximum Control Voltage | 8 V dc |
| Minimum Control Voltage | 3 V dc |
| Switching Type | DC |
| Control Voltage Range | 3 → 8 V dc |
| Minimum Load Current | 0.01 A |
| Contact Configuration | SPST |
| Terminal Type | PCB Pin |
| Output Device | Transistor |
| Package Style | Module |
| Maximum Turn On Time | 0.1ms |
| Load Voltage Range | 3 → 60V dc |
| Dimensions | 43.18 x 15.2 x 31.8mm |
| Depth | 15.2mm |
| Height | 31.8mm |
| Length | 43.2mm |
| Operating Temperature Range | -30 → +80°C |
| Off State Leakage Current | 500 μA |
