Sensata / Crydom H16WD Series Solid State Relay, 50 A Load, Panel Mount, 660 V ac Load, 32 V dc Control
- RS Stock No.:
- 776-1092
- Mfr. Part No.:
- H16WD6050G
- Brand:
- Sensata / Crydom
20 In stock - FREE next working day delivery available
Price Each
£72.94
(exc. VAT)
£87.53
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £72.94 |
| 5 - 9 | £69.29 |
| 10 - 24 | £65.65 |
| 25 - 49 | £62.00 |
| 50 + | £58.35 |
- RS Stock No.:
- 776-1092
- Mfr. Part No.:
- H16WD6050G
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

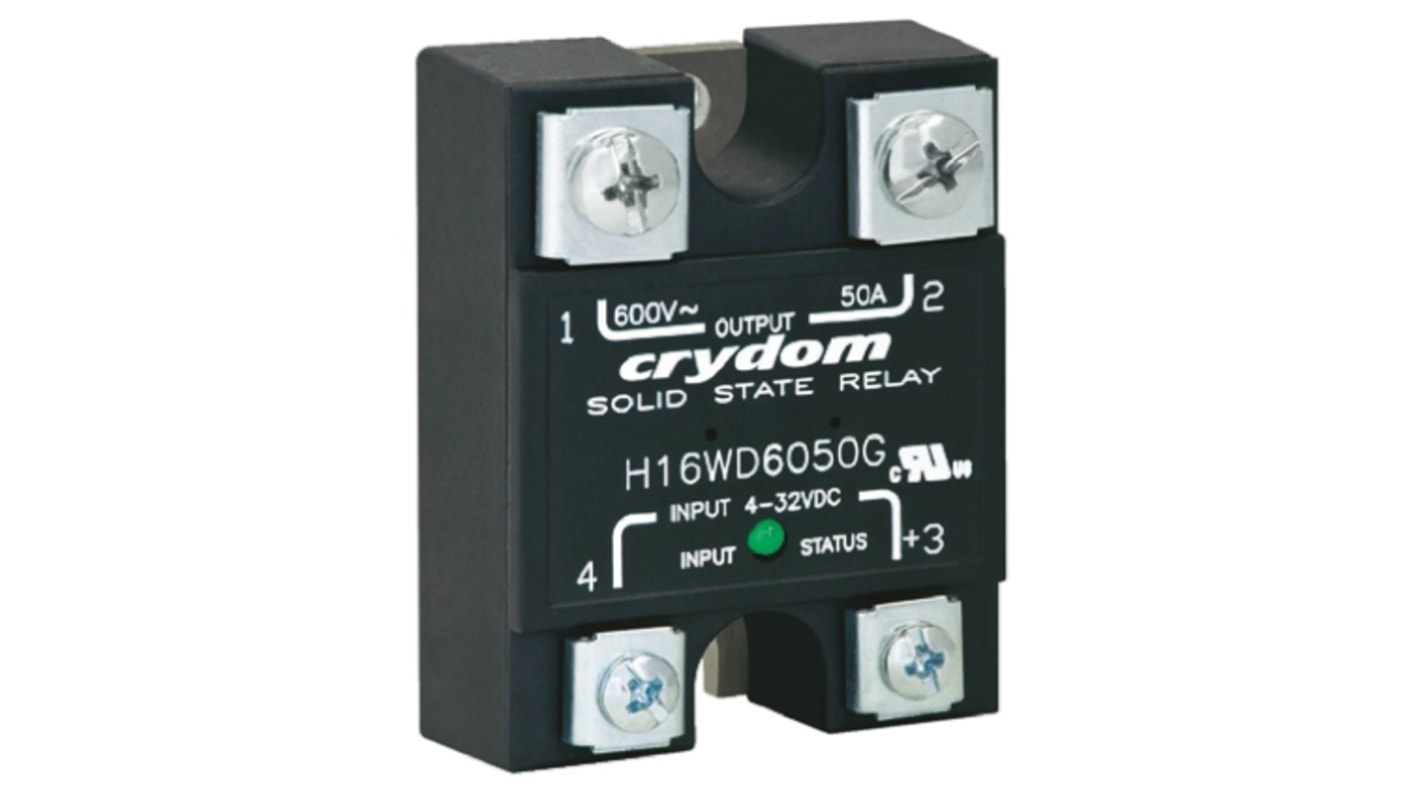

Panel Mount Solid State Relays - H16WD Series
The H16WD series from Crydom offers a panel mounting solid state relay with current ratings of 25A to 90A @ 48-660 Vac These solid state relays offer higher levels of breakdown voltage and noise immunity for applications exposed to high voltage surge conditions.
Hockey puck style casing
1600 volt blocking
SCR output for heavy industrial loads
Zero-crossing (resistive loads) or random-fire (inductive loads) output
LED indicator
Operating temperature -40 → 80 °C
1600 volt blocking
SCR output for heavy industrial loads
Zero-crossing (resistive loads) or random-fire (inductive loads) output
LED indicator
Operating temperature -40 → 80 °C
Note
Manufacturer part nos. ending in -10 are random turn on.
DC Switching
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 50 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 660 V ac |
| Minimum Load Voltage | 48 V ac |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 4 V dc |
| Switching Type | DC |
| Control Voltage Range | 4 → 32 V dc |
| Minimum Load Current | 150 mA |
| Terminal Type | Screw |
| Output Device | SCR |
| Relay Type | Solid State Relay |
| Series | H16WD |
| Maximum Turn On Time | 1/2 cycle |
| Load Voltage Range | 48 → 660V ac |
| Dimensions | 45.7 x 19.8 x 58.4mm |
| Capacitance | 8pF |
| Depth | 19.8mm |
| Minimum Operating Temperature | -40°C |
| Standards Met | RoHS Compliant |
| Off State Leakage Current | 1 mA |
| Length | 45.7mm |
| Operating Temperature Range | -40 → +80°C |
| Maximum Operating Temperature | +80°C |
| Special Features | Optional LED Status Indicator, SCR Output For Heavy Industrial Loads |
| Height | 58.4mm |
