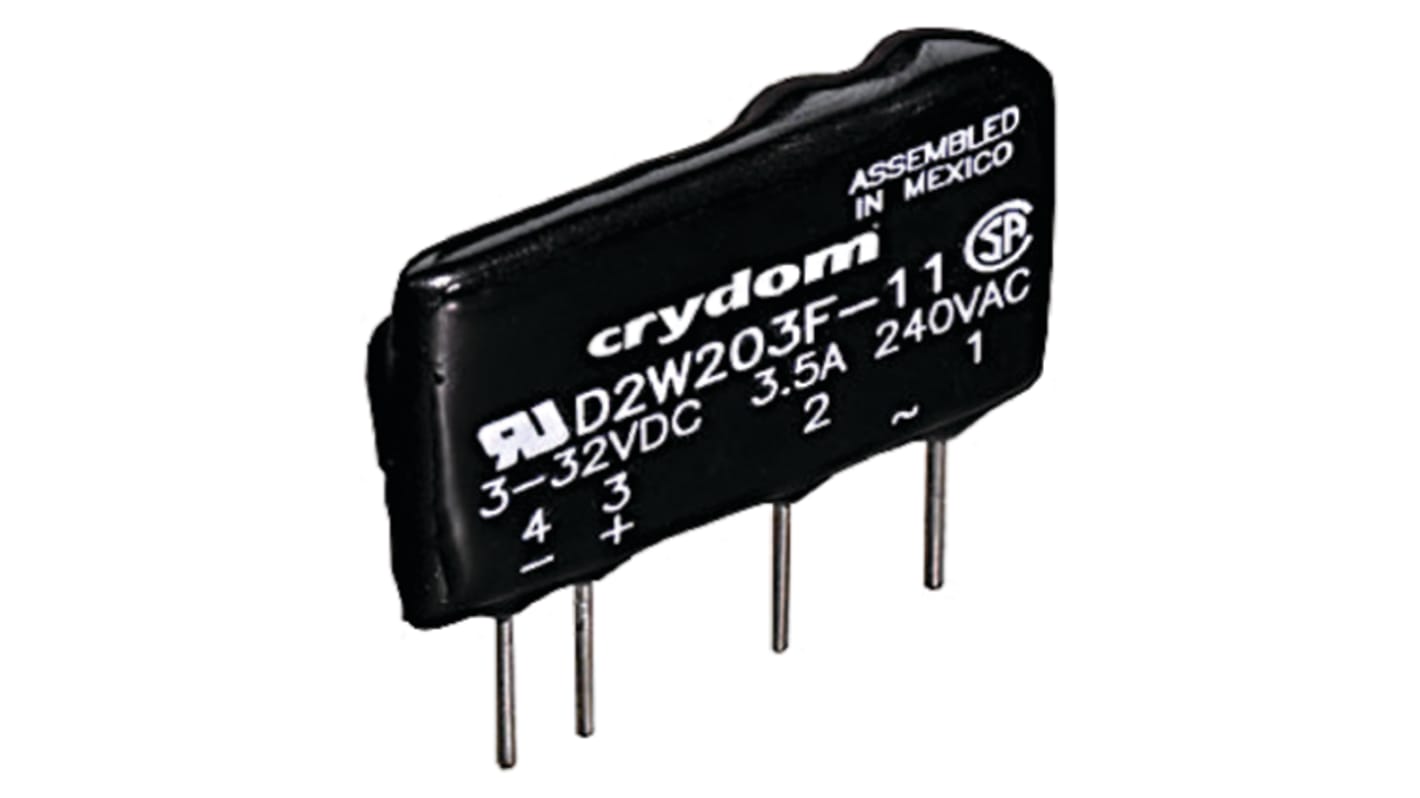

Sensata Crydom D2W Series Solid State Relay, 3 A Load, PCB Mount, 280 V rms Load, 32 V dc Control

RS Stock No.:: 738-5569
Mfr. Part No.:: D2W203F
Brand:: Sensata / Crydom

Sensata Crydom D2W Series Solid State Relay, 3 A Load, PCB Mount, 280 V rms Load, 32 V dc Control

View all Solid State Relays

Bulk discount available

Subtotal (1 unit)*

£22.86

(exc. VAT)

£27.43

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

9 unit(s) ready to ship
Plus 4 unit(s) ready to ship from another location
Plus 8 unit(s) shipping from 08 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£22.86
10 - 99	£21.15
100 +	£19.03

*price indicative

RS Stock No.:: 738-5569
Mfr. Part No.:: D2W203F
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	3 A
	Mounting Type	PCB Mount
	Maximum Load Voltage	280 V rms
	Minimum Load Voltage	24 V rms
	Maximum Control Voltage	32 V dc
	Minimum Control Voltage	3 V dc
	Switching Type	Zero Cross
	Control Voltage Range	3 → 32 V dc
	Minimum Load Current	0.06 A rms
	Terminal Type	Through Hole
	Contact Configuration	SPST
	Output Device	Triac
	Package Style	SIP
	Load Voltage Range	24 → 280Vrms
	Series	D2W
	Maximum Turn On Time	1/2 cycle
	Dimensions	43.2 x 11.9 x 29.9mm
	Depth	11.9mm
	Minimum Operating Temperature	-30°C
	Standards Met	CE
	Height	29.9mm
	Off State Leakage Current	8mA rms
	Length	43.2mm
	Operating Temperature Range	-30 → +80°C
	Maximum Operating Temperature	+80°C
	Capacitance	10pF

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 3 A
	Mounting Type PCB Mount
	Maximum Load Voltage 280 V rms
	Minimum Load Voltage 24 V rms
	Maximum Control Voltage 32 V dc
	Minimum Control Voltage 3 V dc
	Switching Type Zero Cross
	Control Voltage Range 3 → 32 V dc
	Minimum Load Current 0.06 A rms
	Terminal Type Through Hole
	Contact Configuration SPST
	Output Device Triac
	Package Style SIP
	Load Voltage Range 24 → 280Vrms
	Series D2W
	Maximum Turn On Time 1/2 cycle
	Dimensions 43.2 x 11.9 x 29.9mm
	Depth 11.9mm
	Minimum Operating Temperature -30°C
	Standards Met CE
	Height 29.9mm
	Off State Leakage Current 8mA rms
	Length 43.2mm
	Operating Temperature Range -30 → +80°C
	Maximum Operating Temperature +80°C
	Capacitance 10pF

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, Zero-Cross Switching Type, Triac Output - D2W Series - D2W203F

When you need to safely switch a circuit but space is at a premium, opt for this PCB-mounted solid-state relay from Sensata | Crydom. Thanks to its diminutive dimensions of just 43.2 (L) x 11.9 (W) x 29.9mm (H), this miniature marvel will fit comfortably in the tightest of spots. It's a zero-cross switching type, meaning it won't connect the output to the load until the waveform is at 0V. This makes it a safe choice for delicate components like incandescent bulbs that can be damaged by high in-rush currents. Thanks to the triac output type, this device is ideally suited to low-power AC loads, including motor starters, lights and contactors.

• Internal snubber network offers an extra layer of protection against electrical faults
• Wide operating temperature range between -30°C and +80°C for use in extreme conditions
• Featherlight weight of 17g to place minimal strain on your equipment

What's the contact configuration on this device?

This relay features an SPST configuration, meaning it has one position and can be used to control a single circuit.

Caution

Derating will limit the maximum load current at temperatures above 25°C

Approvals

UL; CSA
