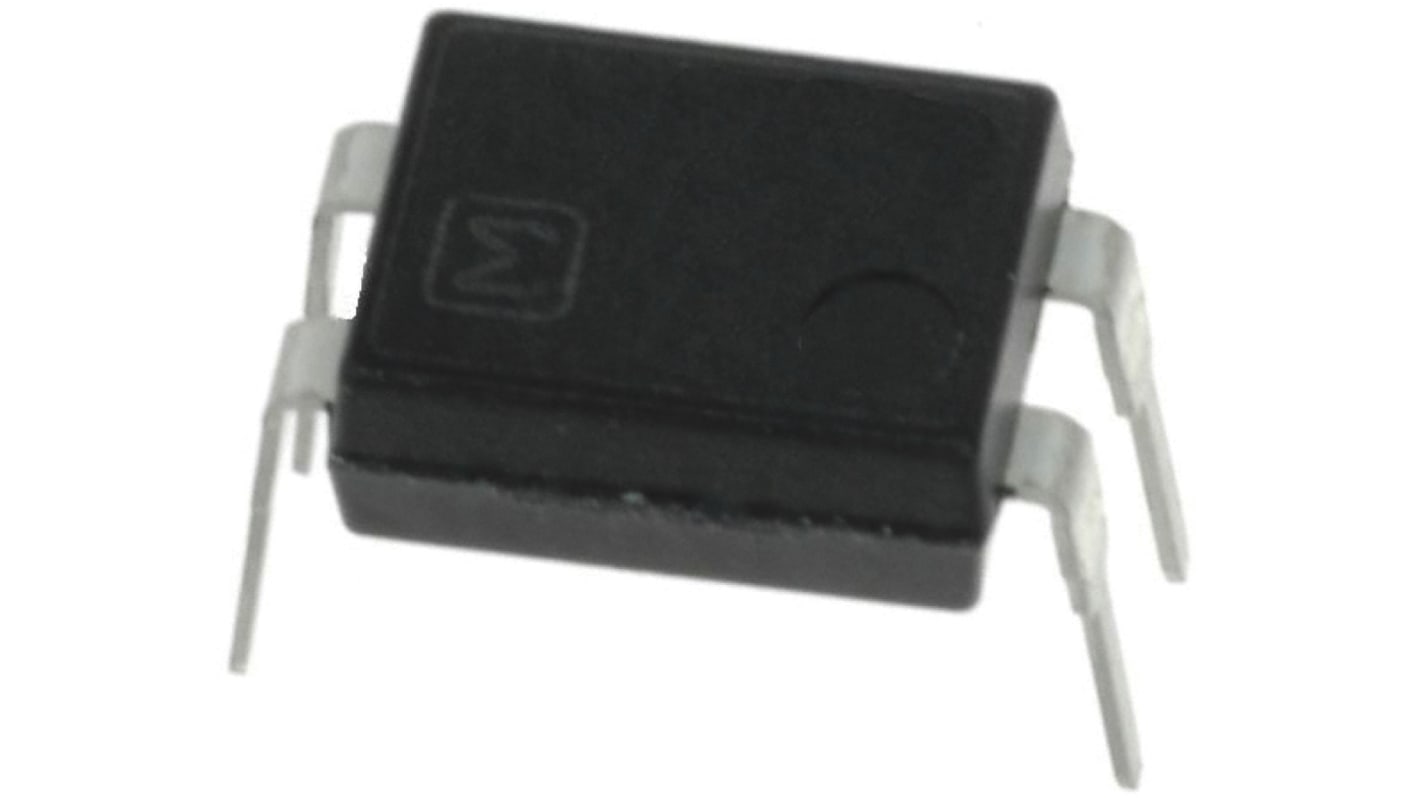

Panasonic Solid State Relay, 3.5 mA Load, PCB Mount, 600 V Load, 1.3 V Control
- RS Stock No.:
- 699-6496
- Mfr. Part No.:
- APT1231
- Brand:
- Panasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 699-6496
- Mfr. Part No.:
- APT1231
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Maximum Load Current | 3.5 mA | |
| Mounting Type | PCB Mount | |
| Maximum Load Voltage | 600 V | |
| Maximum Control Voltage | 1.3 V | |
| Minimum Control Voltage | 1.21 V | |
| Switching Type | Zero Crossing | |
| Control Voltage Range | 1.21 → 1.3 V | |
| Minimum Load Current | 0.3 mA | |
| Terminal Type | Through Hole | |
| Contact Configuration | SPST | |
| Output Device | Triac | |
| Package Style | DIP4 | |
| Maximum Turn On Time | 0.1ms | |
| Dimensions | 4.78 x 6.4 x 3.2mm | |
| Depth | 6.4mm | |
| Minimum Operating Temperature | -40°C | |
| Off State Leakage Current | 1 μA | |
| Height | 3.2mm | |
| Length | 4.78mm | |
| Operating Temperature Range | -40 → +100°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Maximum Load Current 3.5 mA | ||
Mounting Type PCB Mount | ||
Maximum Load Voltage 600 V | ||
Maximum Control Voltage 1.3 V | ||
Minimum Control Voltage 1.21 V | ||
Switching Type Zero Crossing | ||
Control Voltage Range 1.21 → 1.3 V | ||
Minimum Load Current 0.3 mA | ||
Terminal Type Through Hole | ||
Contact Configuration SPST | ||
Output Device Triac | ||
Package Style DIP4 | ||
Maximum Turn On Time 0.1ms | ||
Dimensions 4.78 x 6.4 x 3.2mm | ||
Depth 6.4mm | ||
Minimum Operating Temperature -40°C | ||
Off State Leakage Current 1 μA | ||
Height 3.2mm | ||
Length 4.78mm | ||
Operating Temperature Range -40 → +100°C | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- JP
APT Series
These PCB mounting phototriac coupler relays are ideal for triac driver in heater controls of products such as office equipment, home appliances and industrial machines.
Phototriac Coupler with various options for external Triac control
Two types available, zero-cross (15V and 50V) and random
Various package types available
High dielectric strength
Two types available, zero-cross (15V and 50V) and random
Various package types available
High dielectric strength
Approvals
UL, C-UL, VDE
