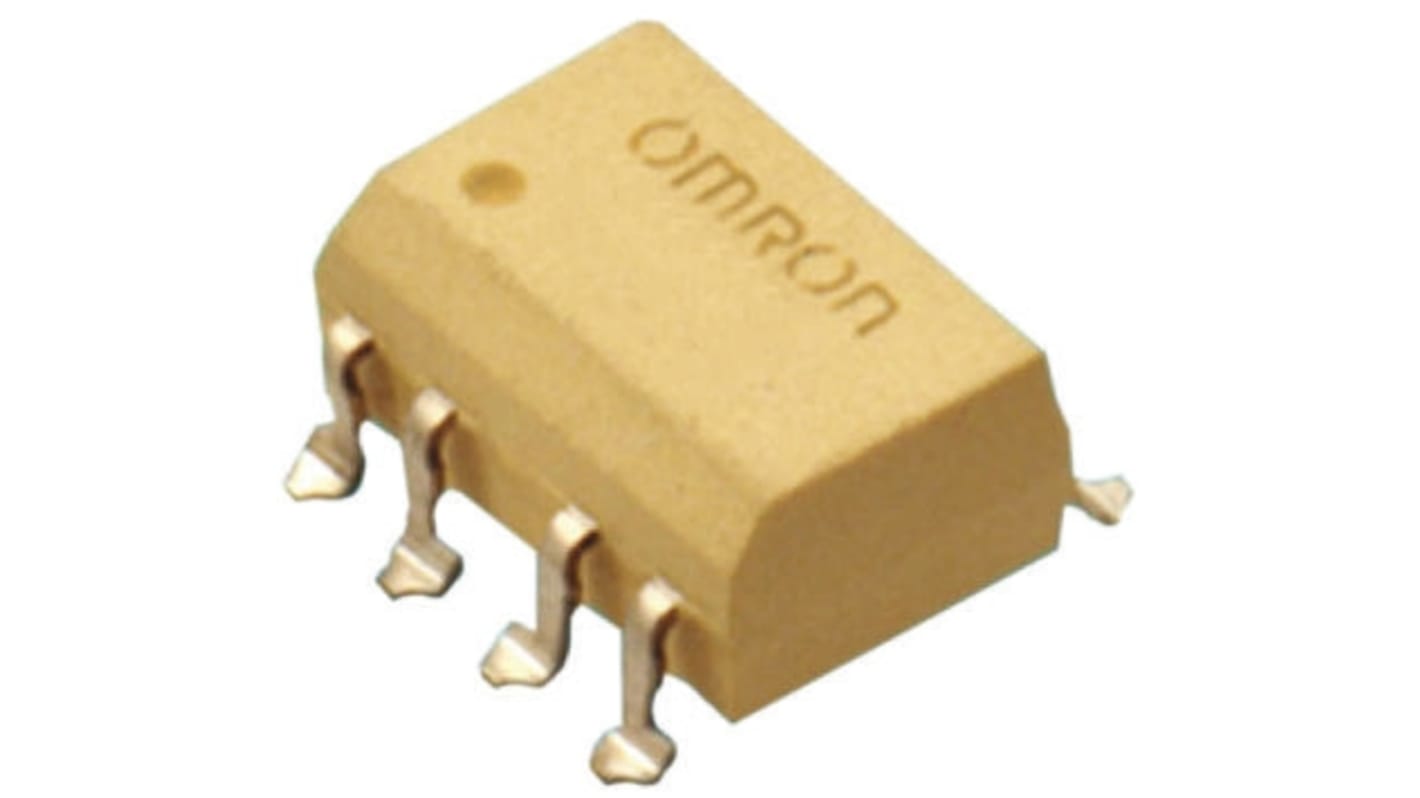

Omron G3VM Series Solid State Relay, 0.5 A Load, Surface Mount, 60 V Load, 1.3 V Control

View all Solid State Relays
Currently unavailable
Sorry, we don't know when this will be back in stock.
Packaging Options:
RS Stock No.:
683-9056
Mfr. Part No.:
G3VM-62F1
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Maximum Load Current

0.5 A

Mounting Type

Surface Mount

Maximum Load Voltage

60 V

Maximum Control Voltage

1.3 V

Minimum Load Current

500 mA

Terminal Type

PCB Pin

Contact Configuration

SPST-NO

Output Device

MOSFET

Package Style

SMD8

Load Voltage Range

0 → 60V ac

Series

G3VM

Dimensions

9.66 x 6.4 x 3.65mm

Depth

6.4mm

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Operating Temperature Range

-40 → +85°C

Height

3.7mm

Length

9.7mm

COO (Country of Origin):
JP

G3VM MOSFET SSR


Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-62F1 MOS FET General Purpose Series SSR – Solid State Relay.


The G3VM-62F1 MOS FET relay offers a wealth of benefits required from maintenance free relays. DPST-NO (normally open), SMT surface mounted package relay with 8-pins. This series relay is designed for switching minute analogue signals.

Features and Benefits G3VM-62F1 SSR – Solid Sate Relay.


• MOS FET Solid state relay.
• Surface mounted relay terminals.
• DIP8 (dual in-line).
• SMT
• Contact form DPST-NO 2a (normally open).
• 8 Relay terminals.
• Load voltage 60 V.
• Load current 500 mA max.
• Maximum resistance with output ON 1 Ω.
• Current leakage when relay is open 1000 nA max.
• Capacitance between terminals 130 pF.
• SSR -Turn ON time 2 ms max.
• SSR -Turn OFF time 0.5 ms max.
• Dielectric strength between I/O 2500 Vrms.
• 2-Channel
• Switches minute analogue signals.
• Low ON resistance
• RoHS Compliant.

Additional Features G3VM-62F1 General Purpose SSR – Solid State Relay.


• Long operational life.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
• Operating temperature, ambient -20°C to +65°C, no icing or condensation.

Other Application Examples.


• Test and measurement equipment.
• Security equipment.
