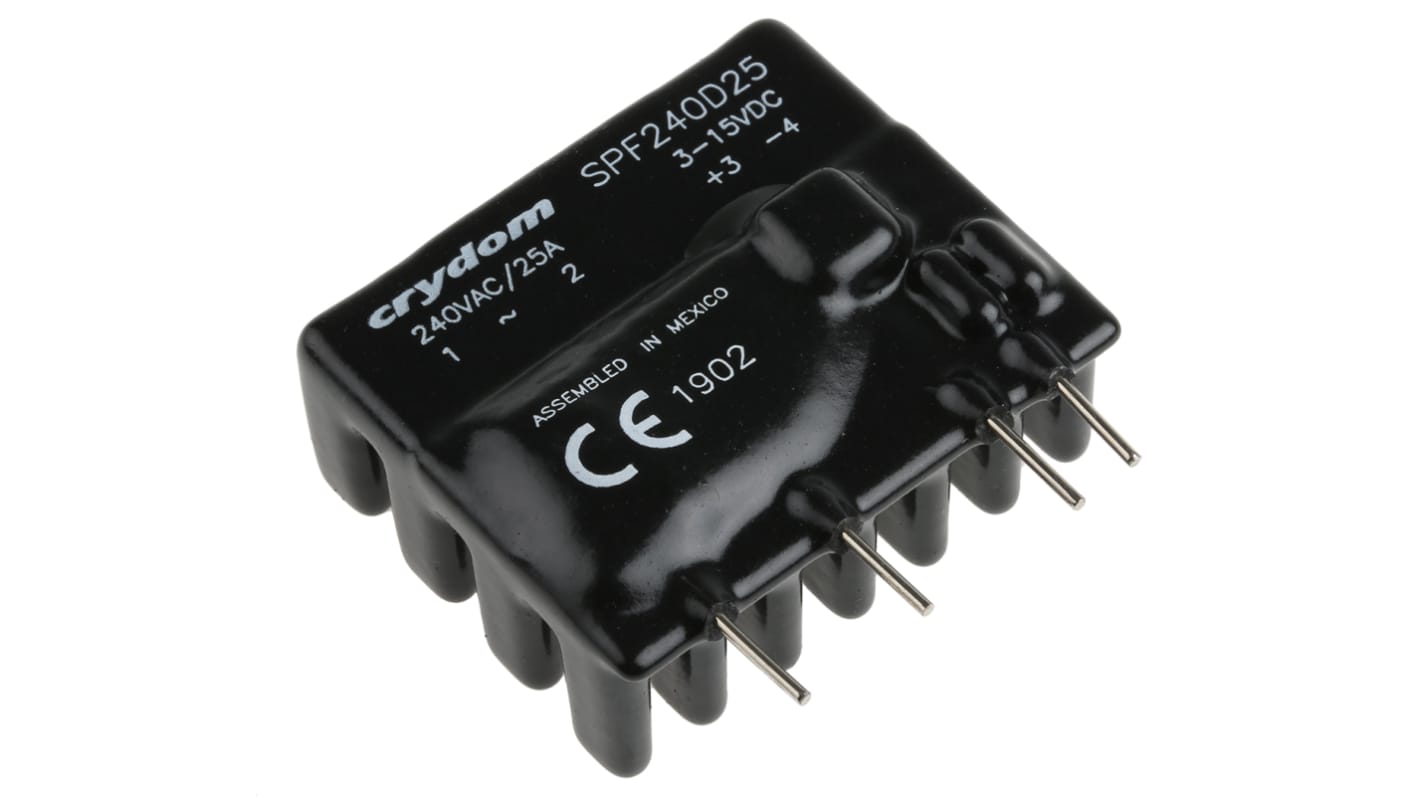

Sensata / Crydom 25 A rms Solid State Relay, Zero Cross, PCB Mount, SCR, 280 V rms Maximum Load

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

SPF Series - PowerFin™

AC switching to 25A, 280Vac (10A without fan)
Ultra high steady state current
SCR output
DC input control voltage
Mount in any orientation
High surge rating of 250A
Zero-cross or Instant turn-on types available, 'R' in Crydom part no. indicates instant turn-on type
Dimensions: H35.6 x W22.9 x D40.6mm

Approvals

UL

Approvals

UL

Specifications
Attribute Value
Minimum Load Current 0.06 A
Maximum Load Current 25 A rms
Mounting Type PCB Mount
Maximum Load Voltage 280 V rms
Maximum Control Voltage 15 V
Switching Type Zero Cross
Output Device SCR
Dimensions 40.64 x 22.86 x 34.29mm
Operating Temperature Range -30 → +80°C
Minimum Operating Temperature -30°C
Maximum Operating Temperature +80°C
Length 40.64mm
Depth 22.86mm
Load Voltage Range 12 → 280V ac
Control Voltage Range 3 → 15 V dc
Height 34.29mm
Available to back order for despatch 14/08/2020
Price Each
£ 17.41
(exc. VAT)
£ 20.89
(inc. VAT)
Units
Per unit
1 +
£17.41
