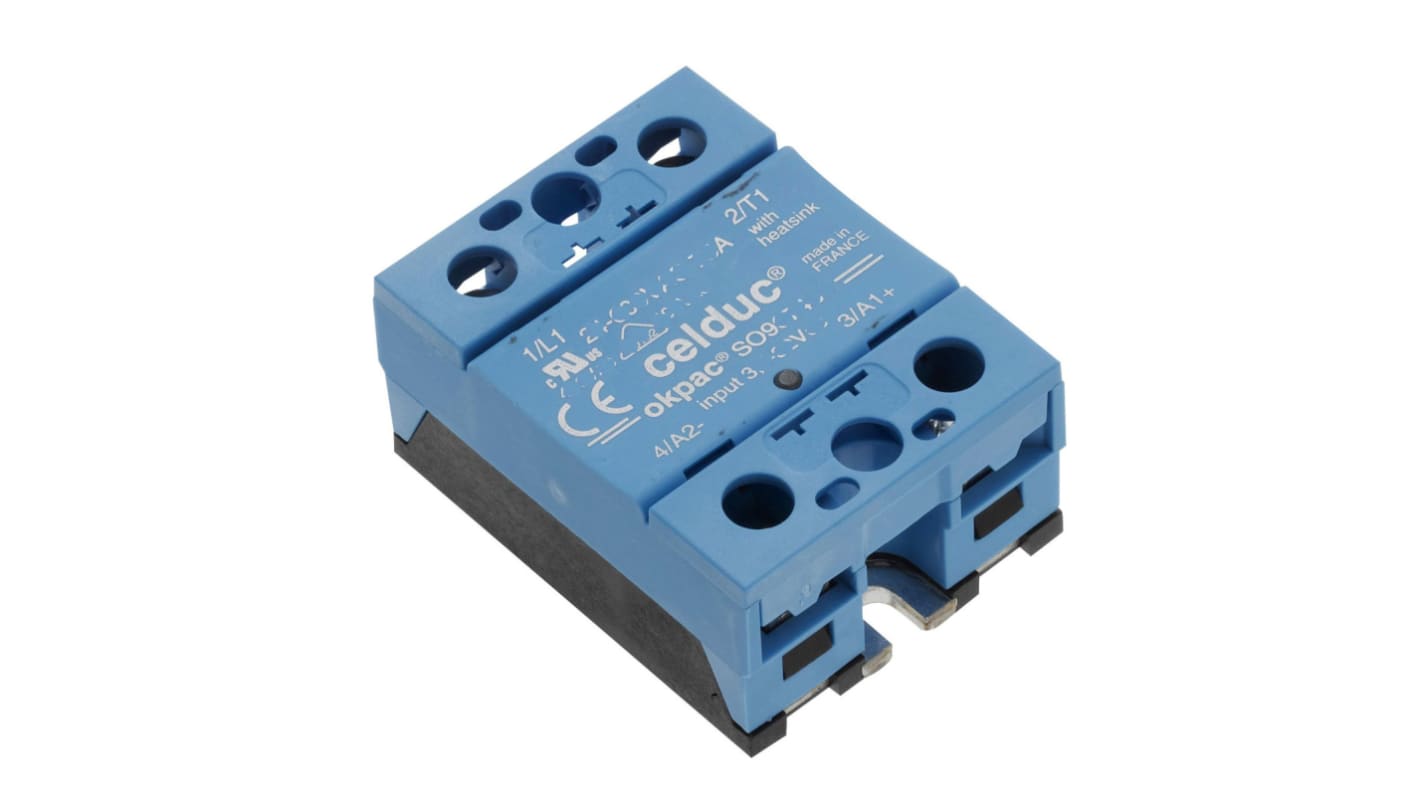

Celduc SO9 Series Solid State Relay, 40 A Load, Panel Mount, 600 V rms Load, 32 V Control
- RS Stock No.:
- 499-0480
- Mfr. Part No.:
- SO963460
- Brand:
- Celduc
Bulk discount available
Subtotal (1 unit)*
£39.86
(exc. VAT)
£47.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £39.86 |
| 5 - 9 | £38.25 |
| 10 + | £37.47 |
*price indicative
- RS Stock No.:
- 499-0480
- Mfr. Part No.:
- SO963460
- Brand:
- Celduc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 40 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 600 V rms | |
| Minimum Load Voltage | 24 V ac | |
| Maximum Control Voltage | 32 V | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3.5 → 32 V dc | |
| Minimum Load Current | 5 mA | |
| Range | okpac | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Output Device | Thyristor | |
| Relay Type | Single Phase Solid State Relay | |
| Maximum Turn On Time | 10ms | |
| Series | SO9 | |
| Load Voltage Range | 24 → 600V ac | |
| Dimensions | 58.5 x 45 x 29mm | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -55°C | |
| Operating Temperature Range | -55 → +100°C | |
| Length | 58.5mm | |
| Height | 29mm | |
| Standards Met | CE, VDE, cURus 100kA, EAC | |
| Depth | 45mm | |
| Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 40 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 600 V rms | ||
Minimum Load Voltage 24 V ac | ||
Maximum Control Voltage 32 V | ||
Switching Type Zero Cross | ||
Control Voltage Range 3.5 → 32 V dc | ||
Minimum Load Current 5 mA | ||
Range okpac | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Output Device Thyristor | ||
Relay Type Single Phase Solid State Relay | ||
Maximum Turn On Time 10ms | ||
Series SO9 | ||
Load Voltage Range 24 → 600V ac | ||
Dimensions 58.5 x 45 x 29mm | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -55°C | ||
Operating Temperature Range -55 → +100°C | ||
Length 58.5mm | ||
Height 29mm | ||
Standards Met CE, VDE, cURus 100kA, EAC | ||
Depth 45mm | ||
- COO (Country of Origin):
- FR
Single-phase solid state relays, SO9 series
Synchronous solid state relay suited to most loads.
TMS2 technology thyristor output ensures longevity.
Voltage protection for input as well as output (VDR) for very high immunity to interference.
Wide control range: 20 → 265 Vac / dc with regulated control current.
Green LED input display.
Solid state relays must be mounted on a heatsink.
TMS2 technology thyristor output ensures longevity.
Voltage protection for input as well as output (VDR) for very high immunity to interference.
Wide control range: 20 → 265 Vac / dc with regulated control current.
Green LED input display.
Solid state relays must be mounted on a heatsink.
Standards
EN60947-4-3 and EN60950
Instantaneous Switching
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
