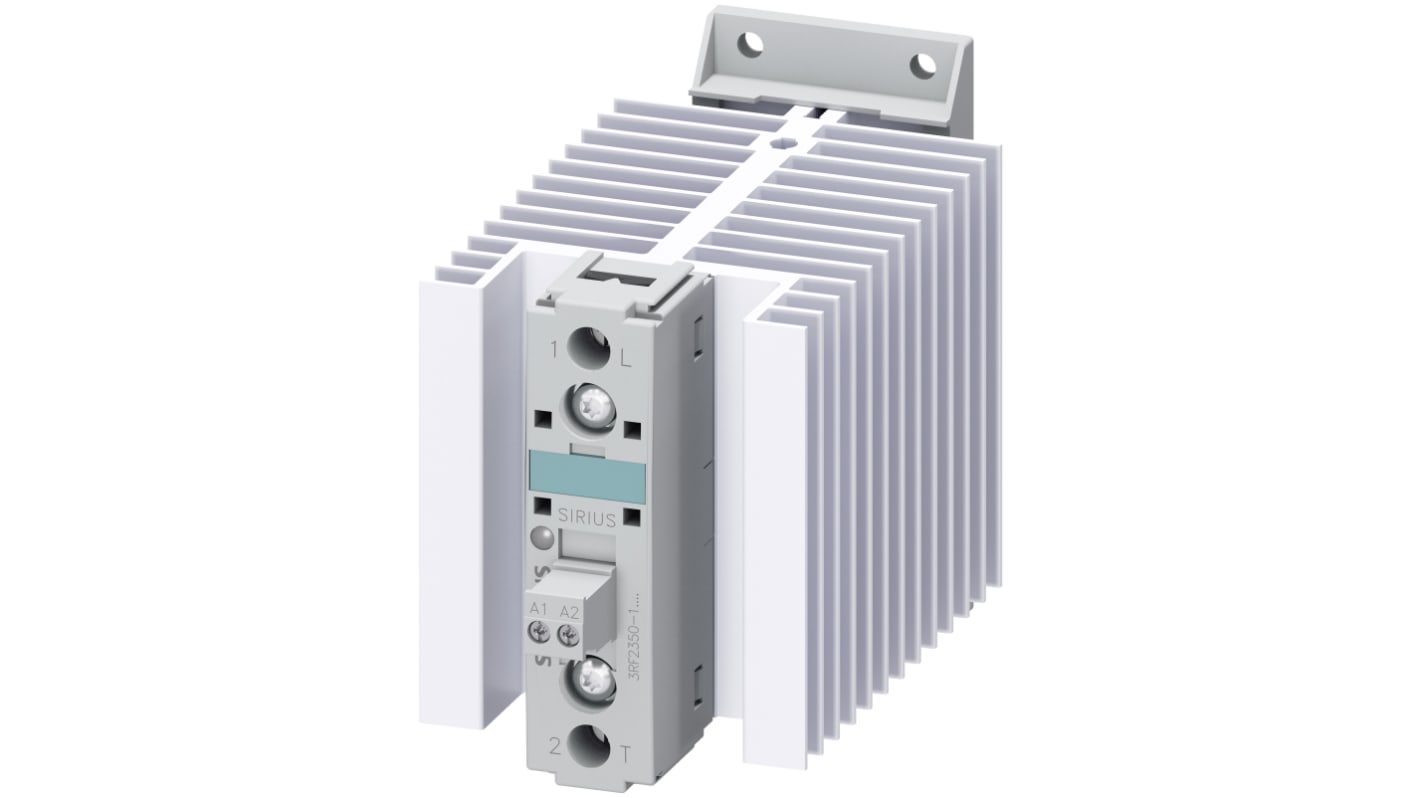

Siemens 3RF2 Series Solid State Relay, 50 A Load, DIN Rail Mount, 230 V Load, 24 V dc Control
- RS Stock No.:
- 467-4784
- Mfr. Part No.:
- 3RF2350-1AA02
- Brand:
- Siemens
Subtotal (1 unit)*
£85.17
(exc. VAT)
£102.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £85.17 |
*price indicative
- RS Stock No.:
- 467-4784
- Mfr. Part No.:
- 3RF2350-1AA02
- Brand:
- Siemens
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Maximum Load Current | 50 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 230 V | |
| Minimum Load Voltage | 24 V | |
| Maximum Control Voltage | 24 V dc | |
| Minimum Control Voltage | 15 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 15 → 24 V dc | |
| Range | SIRIUS 3RF | |
| Minimum Load Current | 0.5 A | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Output Device | Thyristor | |
| Maximum Turn On Time | 1/2 cycle | |
| Series | 3RF2 | |
| Load Voltage Range | 24 → 230V | |
| Dimensions | 67.5 x 156 x 100mm | |
| Depth | 156mm | |
| Operating Temperature Range | -25 → +60°C | |
| Maximum Operating Temperature | +60°C | |
| Length | 67.5mm | |
| Minimum Operating Temperature | -25°C | |
| Height | 100mm | |
| Off State Leakage Current | 10 mA | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Maximum Load Current 50 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 230 V | ||
Minimum Load Voltage 24 V | ||
Maximum Control Voltage 24 V dc | ||
Minimum Control Voltage 15 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 15 → 24 V dc | ||
Range SIRIUS 3RF | ||
Minimum Load Current 0.5 A | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Output Device Thyristor | ||
Maximum Turn On Time 1/2 cycle | ||
Series 3RF2 | ||
Load Voltage Range 24 → 230V | ||
Dimensions 67.5 x 156 x 100mm | ||
Depth 156mm | ||
Operating Temperature Range -25 → +60°C | ||
Maximum Operating Temperature +60°C | ||
Length 67.5mm | ||
Minimum Operating Temperature -25°C | ||
Height 100mm | ||
Off State Leakage Current 10 mA | ||
