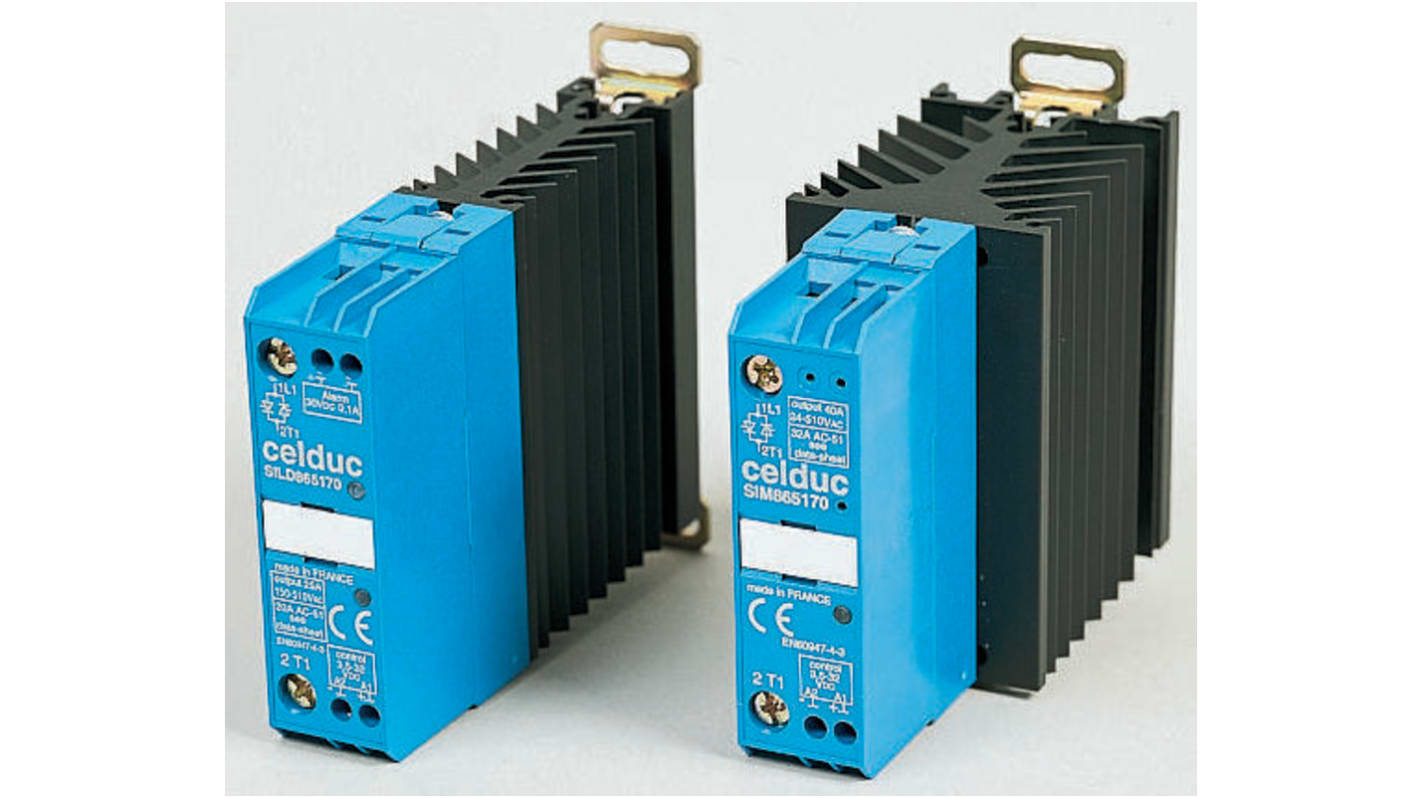

Celduc SILD Series Solid State Relay, 32 A Load, DIN Rail Mount, 510 V rms Load, 32 V dc Control
- RS Stock No.:
- 409-2968
- Mfr. Part No.:
- SILD865170
- Brand:
- Celduc
Subtotal (1 unit)*
£100.56
(exc. VAT)
£120.67
(inc. VAT)
FREE delivery for orders over £50.00
- 24 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | £100.56 |
| 5 - 9 | £97.78 |
| 10 + | £95.12 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£64.99
(exc. VAT)
£77.99
(inc. VAT)
- RS Stock No.:
- 409-2968
- Mfr. Part No.:
- SILD865170
- Brand:
- Celduc
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 32 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 510 V rms | |
| Minimum Load Voltage | 150 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 3.5 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3.5 → 32 V dc | |
| Range | celpac Ready to use | |
| Minimum Load Current | 100 mA | |
| Number of Poles | 1 | |
| Terminal Type | Plug In | |
| Output Device | Thyristor | |
| Relay Type | Diagnostic Solid State Contactor | |
| Maximum Turn On Time | 10ms | |
| Load Voltage Range | 150 → 510V ac | |
| Series | SILD | |
| Dimensions | 98 x 22.5 x 119.1mm | |
| Minimum Operating Temperature | -40°C | |
| Depth | 22.5mm | |
| Standards Met | CE | |
| Height | 119.1mm | |
| Maximum Operating Temperature | +80°C | |
| Operating Temperature Range | -40 → +80°C | |
| Length | 98mm | |
| Off State Leakage Current | 5 mA | |
Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 32 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 510 V rms | ||
Minimum Load Voltage 150 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 3.5 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 3.5 → 32 V dc | ||
Range celpac Ready to use | ||
Minimum Load Current 100 mA | ||
Number of Poles 1 | ||
Terminal Type Plug In | ||
Output Device Thyristor | ||
Relay Type Diagnostic Solid State Contactor | ||
Maximum Turn On Time 10ms | ||
Load Voltage Range 150 → 510V ac | ||
Series SILD | ||
Dimensions 98 x 22.5 x 119.1mm | ||
Minimum Operating Temperature -40°C | ||
Depth 22.5mm | ||
Standards Met CE | ||
Height 119.1mm | ||
Maximum Operating Temperature +80°C | ||
Operating Temperature Range -40 → +80°C | ||
Length 98mm | ||
Off State Leakage Current 5 mA | ||
