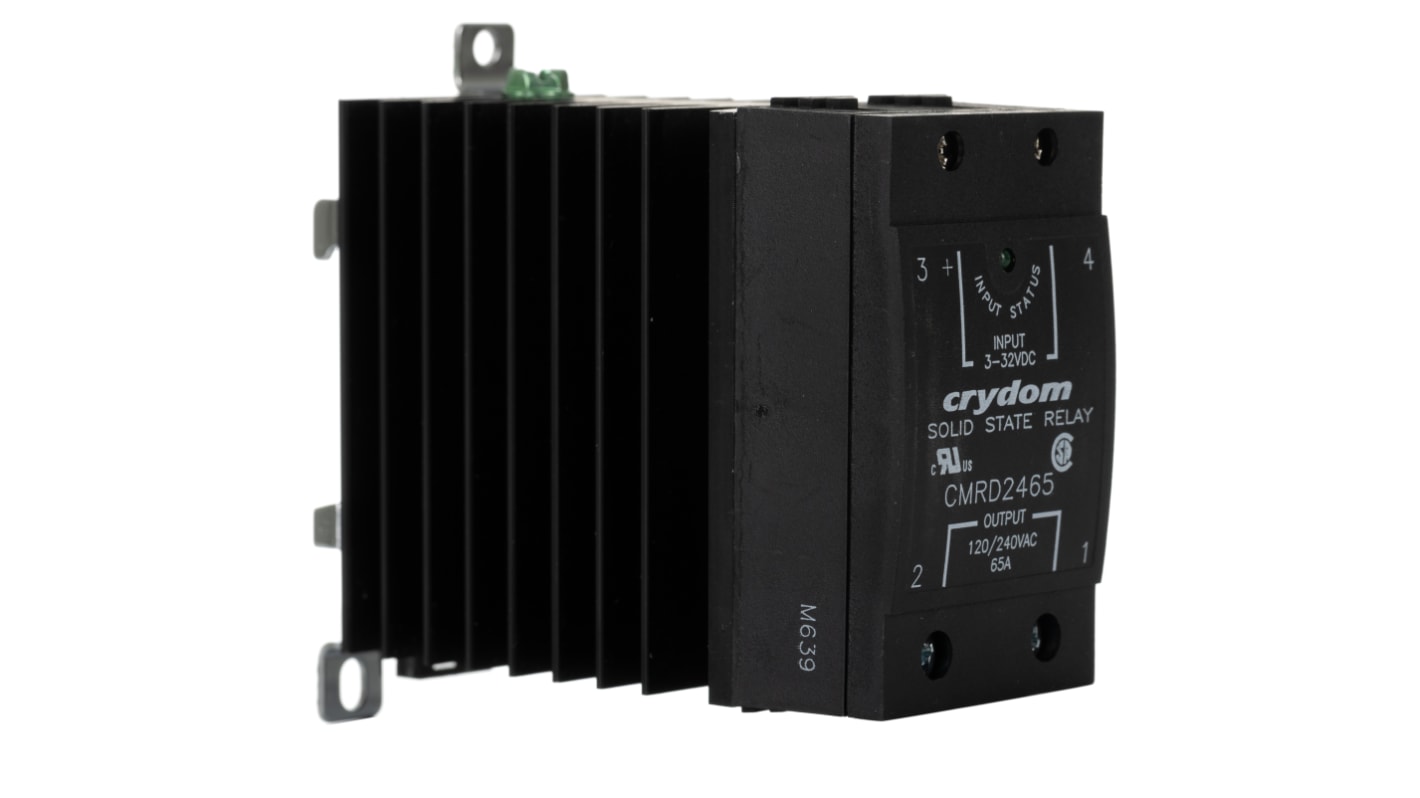

Sensata / Crydom CMR24 Series Solid State Relay, 65 A Load, DIN Rail Mount, 280 V Load, 32 V Control
- RS Stock No.:
- 291-3015
- Mfr. Part No.:
- CMRD2465
- Brand:
- Sensata / Crydom
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£133.49
(exc. VAT)
£160.19
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £133.49 |
| 5 - 9 | £126.82 |
| 10 - 24 | £120.14 |
| 25 - 49 | £113.47 |
| 50 + | £106.79 |
- RS Stock No.:
- 291-3015
- Mfr. Part No.:
- CMRD2465
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Sensata | Crydom Solid-State Relay, DIN Rail Mounting, 65A Rated Load Current - CMR24 Series - CMRD2465
Switch your power seamlessly with this solid-state relay from Sensata | Crydom. It opens and closes a circuit without any moving parts, so it sidesteps wear and tear to give you a long service life. Thanks to its rated load current of 65A, it's a practical pick for high-power systems. The SPST configuration makes it ideal for use as a simple on/off switch. You can use this component in applications such as industrial control, robotics and medical technology.
Features & Benefits
• Zero-cross switching means it turns on when the voltage is close to 0V for enhanced efficiency and reduced noise
• Cage terminals help you make quick and secure electrical connections without the need for complex tools
• Integral heat sink prevents overheating
• Wide operating temperature range of -40°C to +80°C means it's safe to use in harsh industrial environments
• Compact dimensions of 109 (L) x 44.5 (W) x 76.2mm (H) for installation in tight spaces
• Cage terminals help you make quick and secure electrical connections without the need for complex tools
• Integral heat sink prevents overheating
• Wide operating temperature range of -40°C to +80°C means it's safe to use in harsh industrial environments
• Compact dimensions of 109 (L) x 44.5 (W) x 76.2mm (H) for installation in tight spaces
How do I mount this SSR?
This device is designed for mounting on a standard DIN rail, so you can integrate it into your system in a jiffy.
Approvals
UL E116950; CSA LR81689; VDE 126921 UG; CE; ISO
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 65 A |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 280 V |
| Minimum Load Voltage | 24 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V |
| Switching Type | Zero Crossing |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 0.25 A |
| Contact Configuration | SPST |
| Terminal Type | Screw |
| Output Device | SCR |
| Relay Type | Solid State Relay |
| Maximum Turn On Time | 1/2 Cycle |
| Series | CMR24 |
| Load Voltage Range | 24 → 280V ac |
| Dimensions | 109 x 44.5 x 76.2mm |
| Minimum Operating Temperature | -40°C |
| Depth | 44.5mm |
| Maximum Operating Temperature | +80°C |
| Length | 109mm |
| Operating Temperature Range | -40 → +80°C |
| Capacitance | 8pF |
| Special Features | Random-fire |
| Height | 76.2mm |
| Off State Leakage Current | 10mA rms |
