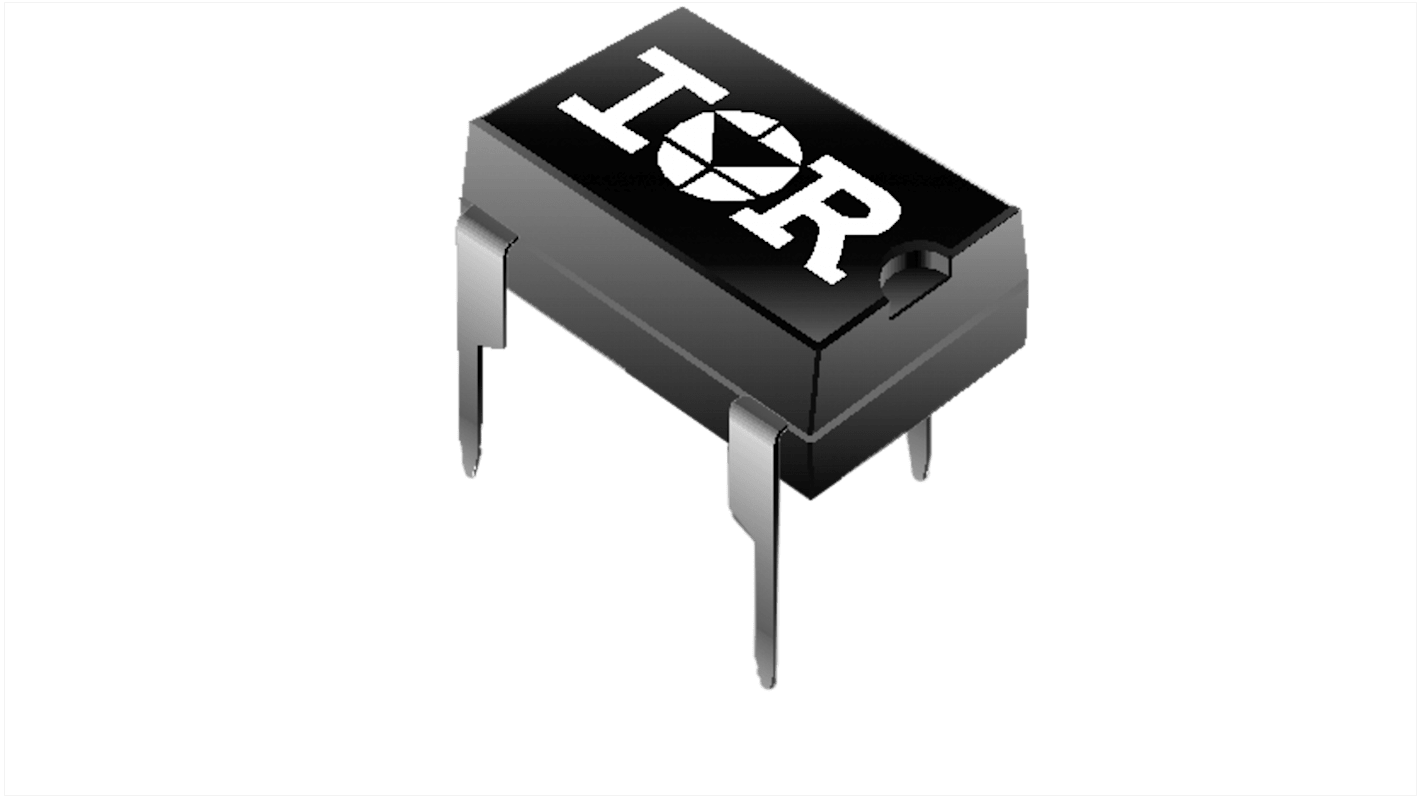

Infineon PVT422PbF Series Solid State Relay, 120 mA Load, Surface Mount, 300 V Load, 300V Control
- RS Stock No.:
- 273-3071
- Mfr. Part No.:
- PVT422PBF
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 50 units)*
£287.15
(exc. VAT)
£344.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £5.743 | £287.15 |
| 100 + | £5.422 | £271.10 |
*price indicative
- RS Stock No.:
- 273-3071
- Mfr. Part No.:
- PVT422PBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Load Current | 120mA | |
| Product Type | Solid State Relay | |
| Mount Type | Surface | |
| Maximum Load Voltage | 300V | |
| Minimum Load Voltage | 0V | |
| Maximum Control Voltage | 300V | |
| Series | PVT422PbF | |
| Terminal Type | Through Hole | |
| Minimum Operating Temperature | -40°C | |
| On State Resistance | 35Ω | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | BABT Certified, UL | |
| Off State Leakage Current | 1μA | |
| Capacitance | 12pF | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Load Current 120mA | ||
Product Type Solid State Relay | ||
Mount Type Surface | ||
Maximum Load Voltage 300V | ||
Minimum Load Voltage 0V | ||
Maximum Control Voltage 300V | ||
Series PVT422PbF | ||
Terminal Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
On State Resistance 35Ω | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals BABT Certified, UL | ||
Off State Leakage Current 1μA | ||
Capacitance 12pF | ||
The Infineon photovoltaic relay is a dual pole, normally open solid-state relay that can replace electromechanical relays in many applications. It utilizes International Rectifier HEXFET power MOSFET as the output switch, driven by an integrated circuit p
Linear AC or DC operation
UL recognized and BABT certified
