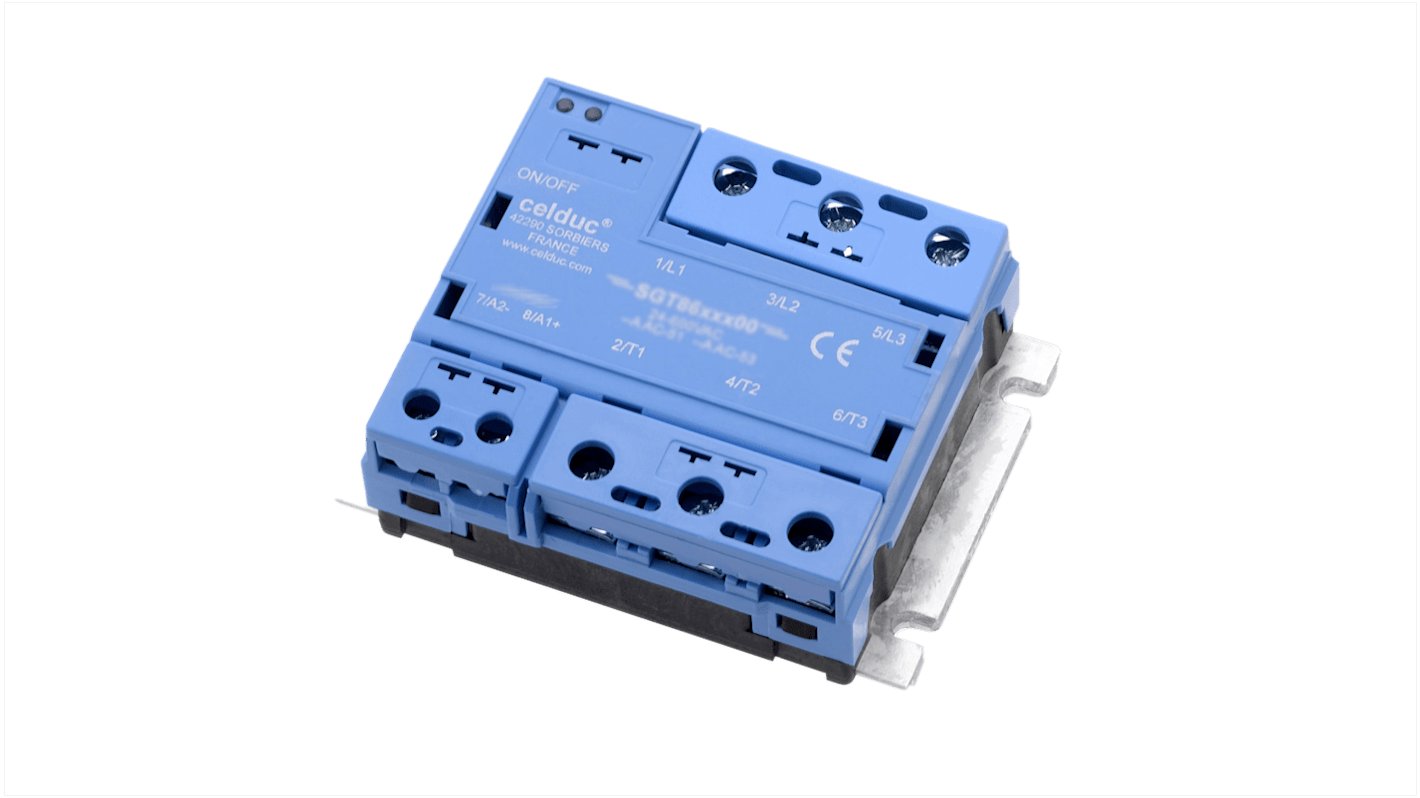

Celduc SGT Series Solid State Relay, 50 A Load, 640 Vrms Load, 255V ac/dc Control
- RS Stock No.:
- 270-0047
- Mfr. Part No.:
- SGT8858200
- Brand:
- Celduc
Subtotal (1 unit)*
£172.41
(exc. VAT)
£206.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £172.41 |
*price indicative
- RS Stock No.:
- 270-0047
- Mfr. Part No.:
- SGT8858200
- Brand:
- Celduc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 50A | |
| Maximum Load Voltage | 640Vrms | |
| Minimum Load Voltage | 24Vrms | |
| Minimum Control Voltage | 4V dc | |
| Maximum Control Voltage | 255V ac/dc | |
| Series | SGT | |
| Select all | ||
|---|---|---|
Brand Celduc | ||
Product Type Solid State Relay | ||
Maximum Load Current 50A | ||
Maximum Load Voltage 640Vrms | ||
Minimum Load Voltage 24Vrms | ||
Minimum Control Voltage 4V dc | ||
Maximum Control Voltage 255V ac/dc | ||
Series SGT | ||
- COO (Country of Origin):
- FR
The Celduc zero cross solid state relay are based on the direct copper bonding technology and they are designed for most types of loads. This relay provide over voltage protection on input and output, back to back thyristors on output with TMS technology for a long lifetime expectancy and it is also a RoHS void free process.
Operating temperature is -40°C to 85°C
Weight is 200 g
