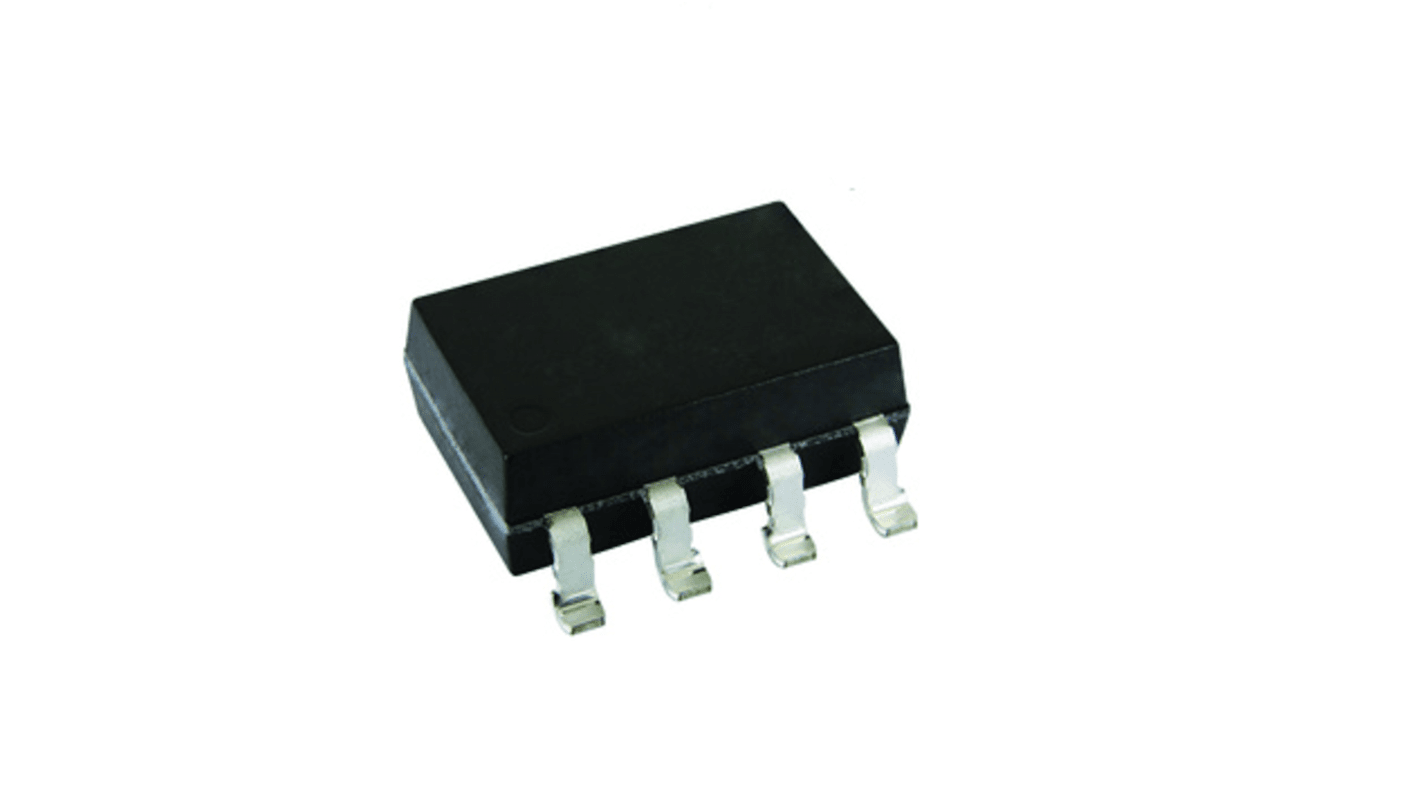

Vishay Solid State Relay, 200 mA Load, Surface Mount, 200 V Load
- RS Stock No.:
- 257-6845
- Mfr. Part No.:
- LH1522AAC
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£4.38
(exc. VAT)
£5.26
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 289 unit(s), ready to ship
Units | Per unit |
---|---|
1 - 9 | £4.38 |
10 - 24 | £2.93 |
25 - 99 | £2.85 |
100 + | £2.78 |
*price indicative
- RS Stock No.:
- 257-6845
- Mfr. Part No.:
- LH1522AAC
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Maximum Load Current | 200 mA | |
Mounting Type | Surface Mount | |
Maximum Load Voltage | 200 V | |
Contact Configuration | SPST-NO | |
Output Device | MOSFET | |
Select all | ||
---|---|---|
Brand Vishay | ||
Maximum Load Current 200 mA | ||
Mounting Type Surface Mount | ||
Maximum Load Voltage 200 V | ||
Contact Configuration SPST-NO | ||
Output Device MOSFET | ||
The Vishay solid-state relay is dual 1 Form A relays are SPST normally open switches that can replace electromechanical relays in many applications. They are constructed using a GaAIAs LED for actuation control and MOSFET switches for the output. In addition, the LH1522 SSRs employ current-limiting circuitry when overvoltage protection is provided.
Isolation test voltage 5300 VRMS
Current limit protection
Typical RON 12 Ω
Load voltage 200 V
Load current 200 mA / 140 mA
Clean bounce free switching
Low power consumption
Current limit protection
Typical RON 12 Ω
Load voltage 200 V
Load current 200 mA / 140 mA
Clean bounce free switching
Low power consumption
