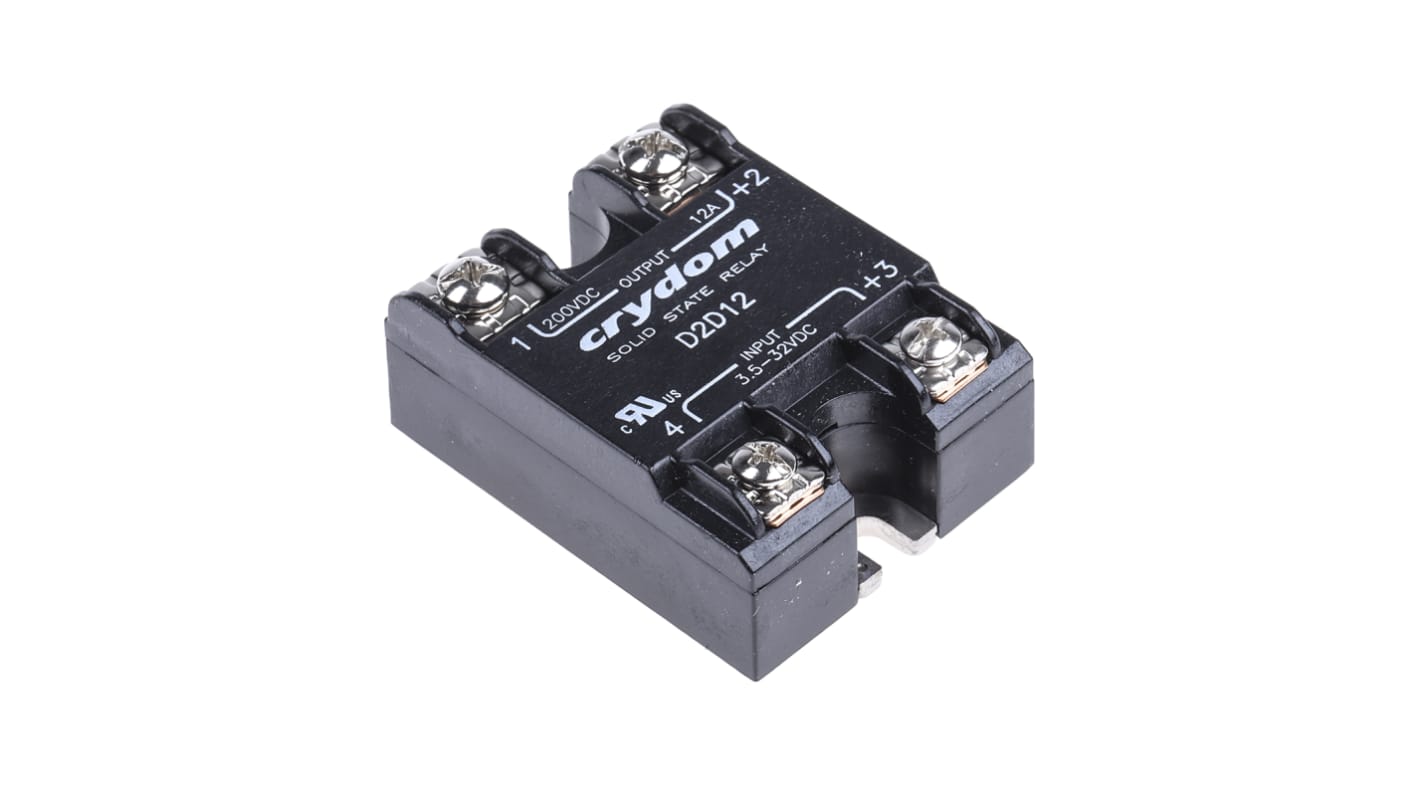

Sensata Crydom 1-DC Series Solid State Relay, 12 A Load, Surface Mount, 200 V Load, 32 V Control

View all Solid State Relays
Bulk discount available

Subtotal (1 unit)*

£78.60

(exc. VAT)

£94.32

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 61 unit(s) ready to ship
  • Plus 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£78.60
5 - 9£74.67
10 - 24£70.75
25 - 49£66.82
50 +£62.89

*price indicative

RS Stock No.:
241-3947
Distrelec Article No.:
300-84-040
Mfr. Part No.:
D2D12
Brand:
Sensata / Crydom
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Crydom

Maximum Load Current

12 A

Mounting Type

Surface Mount

Maximum Load Voltage

200 V

Maximum Control Voltage

32 V

Minimum Control Voltage

3.5 V dc

Control Voltage Range

3.5 → 32 V dc

Minimum Load Current

1 mA

Terminal Type

Screw

Output Device

MOSFET

Series

1-DC

Maximum Turn On Time

0.1 ms

Load Voltage Range

0 → 200V dc

Dimensions

45.7 x 58.4 x 23mm

Capacitance

8pF

Standards Met

CE

Height

23mm

Depth

58.4mm

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-20°C

Off State Leakage Current

0.3 mA

Length

45.7mm

Operating Temperature Range

-20 → +80°C

COO (Country of Origin):
MX

Sensata | Crydom Solid-State Relay, 3.5 to 32V DC Control Voltage Range, MOSFET Output - 1-DC Series - D2D12


Keep close control over your electrical equipment with this solid-state relay from Sensata | Crydom. It has no moving parts, so there's minimal wear and tear, helping to ensure a long service life. This component has a fast turn-on time of 100μs for lightning-fast switching. A control voltage range of 3.5 to 32V DC means it's just the thing for low-power applications. The unit's screw terminals clamp your wires in place, and the anti-rotation barriers prevent accidental disconnections. You can use this dependable device for motors and pumps.

Features & Benefits


• Pre-drilled mounting holes make it a cinch to screw in place
• Fixes to any flat surface for flexible installation
• I/O capacitance of 8pF for high-integrity signal transmission

Can I use this SSR in extreme temperatures?


Yes, this SSR has a wide operating temperature range between -20°C and +80°C for use in harsh environments. To maximise the device's lifespan in challenging conditions, back the relay with a thermal pad (743-4863) to dissipate heat efficiently.

Approvals

UL; CE; ISO


DC Switching
