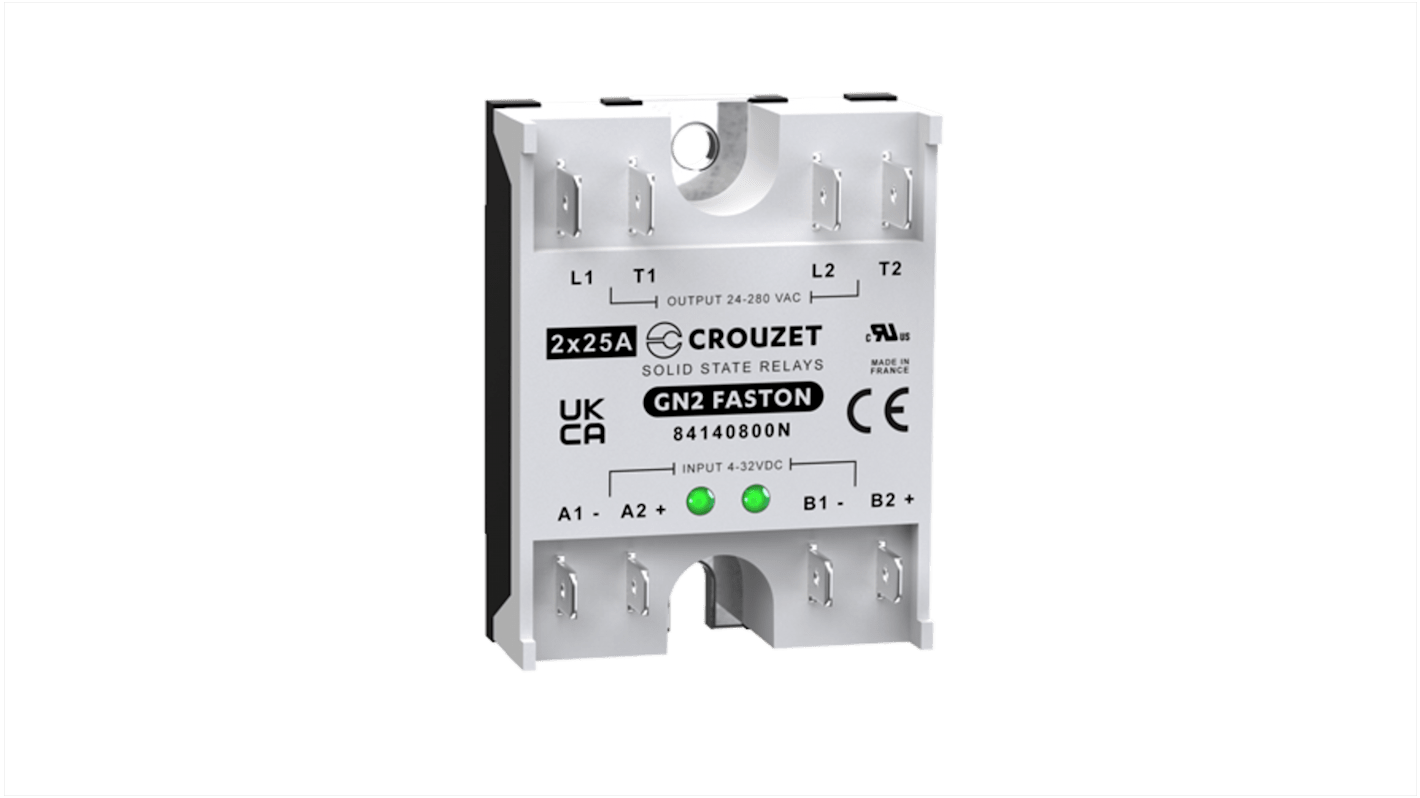

Crouzet GN2 Series Solid State Relay, 25 A Load, Panel Mount, 280 Vrms Load, 32V Control
- RS Stock No.:
- 233-2486
- Distrelec Article No.:
- 302-36-881
- Mfr. Part No.:
- 84140800N
- Brand:
- Crouzet
Subtotal (1 box of 1 unit)*
£91.32
(exc. VAT)
£109.58
(inc. VAT)
Stock information currently inaccessible - Please check back later
Box(es) | Per Box |
|---|---|
| 1 + | £91.32 |
*price indicative
- RS Stock No.:
- 233-2486
- Distrelec Article No.:
- 302-36-881
- Mfr. Part No.:
- 84140800N
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 25A | |
| Mount Type | Panel | |
| Maximum Load Voltage | 280Vrms | |
| Minimum Load Voltage | 24Vrms | |
| Maximum Control Voltage | 32V | |
| Minimum Control Voltage | 4V | |
| Series | GN2 | |
| Terminal Type | Screw | |
| IP Rating | IP00, IP20 | |
| Contact Configuration | SPST-NO | |
| Minimum Operating Temperature | -40°C | |
| Switching Function | Zero Cross Switching | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE, cURus, RoHS, UKCA | |
| Width | 44.8 mm | |
| Height | 29.1mm | |
| Length | 59.4mm | |
| Off State Leakage Current | 1mA | |
| Output Type | Triac | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Product Type Solid State Relay | ||
Maximum Load Current 25A | ||
Mount Type Panel | ||
Maximum Load Voltage 280Vrms | ||
Minimum Load Voltage 24Vrms | ||
Maximum Control Voltage 32V | ||
Minimum Control Voltage 4V | ||
Series GN2 | ||
Terminal Type Screw | ||
IP Rating IP00, IP20 | ||
Contact Configuration SPST-NO | ||
Minimum Operating Temperature -40°C | ||
Switching Function Zero Cross Switching | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE, cURus, RoHS, UKCA | ||
Width 44.8 mm | ||
Height 29.1mm | ||
Length 59.4mm | ||
Off State Leakage Current 1mA | ||
Output Type Triac | ||
- COO (Country of Origin):
- FR
The Crouzet consists of GN2 series panel mount Dual channel Classic solid state relays. These Crouzet solid state relays are designed to be used in almost any application, offering very long life expectancy and are easy to install, easy to use, robust and multipurpose.
cRUus, CE and UKCA recognized
Operating temperature range is -40 to +80 °C
LED green input status indicator
