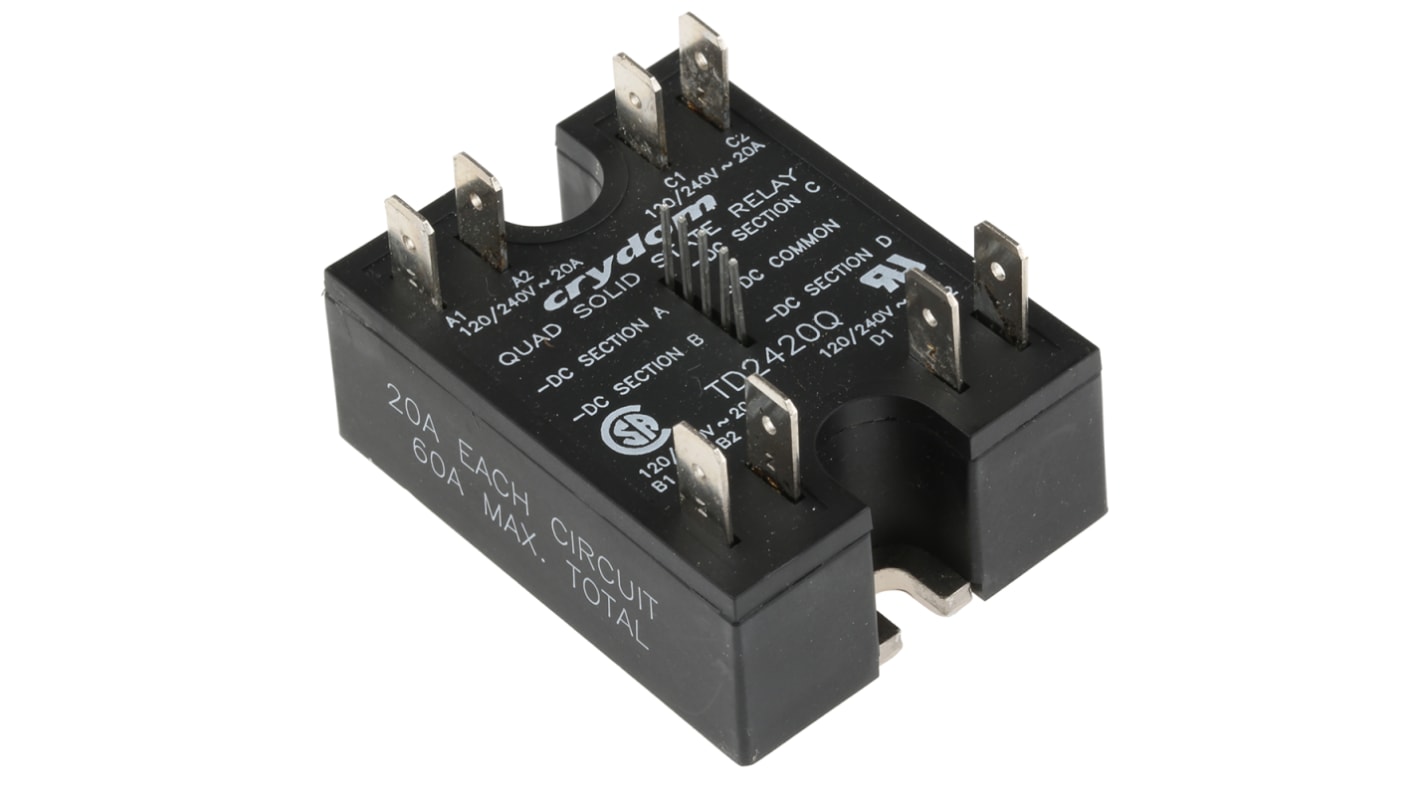

Sensata Crydom Quad Series Solid State Relay, 20 A Load, Surface Mount, 280 V Load, 15 V Control

RS Stock No.:: 228-8599
Mfr. Part No.:: TD2420Q
Brand:: Sensata / Crydom

Sensata Crydom Quad Series Solid State Relay, 20 A Load, Surface Mount, 280 V Load, 15 V Control

View all Solid State Relays

Bulk discount available

Subtotal (1 unit)*

£383.26

(exc. VAT)

£459.91

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

18 unit(s) ready to ship
Plus 10 unit(s) shipping from 20 January 2026
Plus 999,999,971 unit(s) shipping from 20 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£383.26
5 - 9	£364.12
10 - 24	£344.95
25 - 49	£325.78
50 +	£306.62

*price indicative

RS Stock No.:: 228-8599
Mfr. Part No.:: TD2420Q
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	20 A
	Mounting Type	Surface Mount
	Maximum Load Voltage	280 V
	Maximum Control Voltage	15 V
	Minimum Control Voltage	4 V dc
	Switching Type	Zero Cross
	Control Voltage Range	4 → 15 V dc
	Minimum Load Current	0.15 A
	Terminal Type	Faston
	Output Device	Triac
	Relay Type	Solid State Relay
	Series	Quad
	Maximum Turn On Time	1/2 Cycle
	Load Voltage Range	24 → 280V ac
	Dimensions	58.4 x 45.7 x 21.6mm
	Operating Temperature Range	-40 → +80°C
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+80°C
	Standards Met	CE
	Off State Leakage Current	10 mA
	Capacitance	10pF
	Depth	45.7mm
	Height	21.6mm
	Length	58.4mm

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 20 A
	Mounting Type Surface Mount
	Maximum Load Voltage 280 V
	Maximum Control Voltage 15 V
	Minimum Control Voltage 4 V dc
	Switching Type Zero Cross
	Control Voltage Range 4 → 15 V dc
	Minimum Load Current 0.15 A
	Terminal Type Faston
	Output Device Triac
	Relay Type Solid State Relay
	Series Quad
	Maximum Turn On Time 1/2 Cycle
	Load Voltage Range 24 → 280V ac
	Dimensions 58.4 x 45.7 x 21.6mm
	Operating Temperature Range -40 → +80°C
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +80°C
	Standards Met CE
	Off State Leakage Current 10 mA
	Capacitance 10pF
	Depth 45.7mm
	Height 21.6mm
	Length 58.4mm

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, 4 to 15V DC Control Voltage Range, 0.15 to 20A Load Current Range - TD2420Q

Need a switch that turn your machinery on and off without a hitch? Pick this solid-state relay from Sensata | Crydom. As the component has no moving parts, there's minimal wear for improved durability. The unit's SCR output gives it the muscle to handle heavy industrial loads. A snubber circuit design reduces voltage amplitudes and increases to curb power dissipation for more energy-efficient operation. You'll find this device useful for medical equipment, robotics and data acquisition systems.

• Wide operating temperature range between -40°C and +80°C for use in challenging conditions
• Broad control voltage range between 4 and 15V DC for use with numerous applications
• Light weight of 109g to place minimal strain on your equipment

What are the benefits of zero-cross switching?

This type of switching activates an application when the AC source reaches the zero-voltage point, which helps to boost efficiency and reduce noise.

How large is this SSR?

Thanks to its compact dimensions of 58.4 (L) x 21.6 (H) x 45.7mm (D), it's a sure fit for tight setups.

Approvals

UL E116949; CSA LR81689; CE; ISO

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
