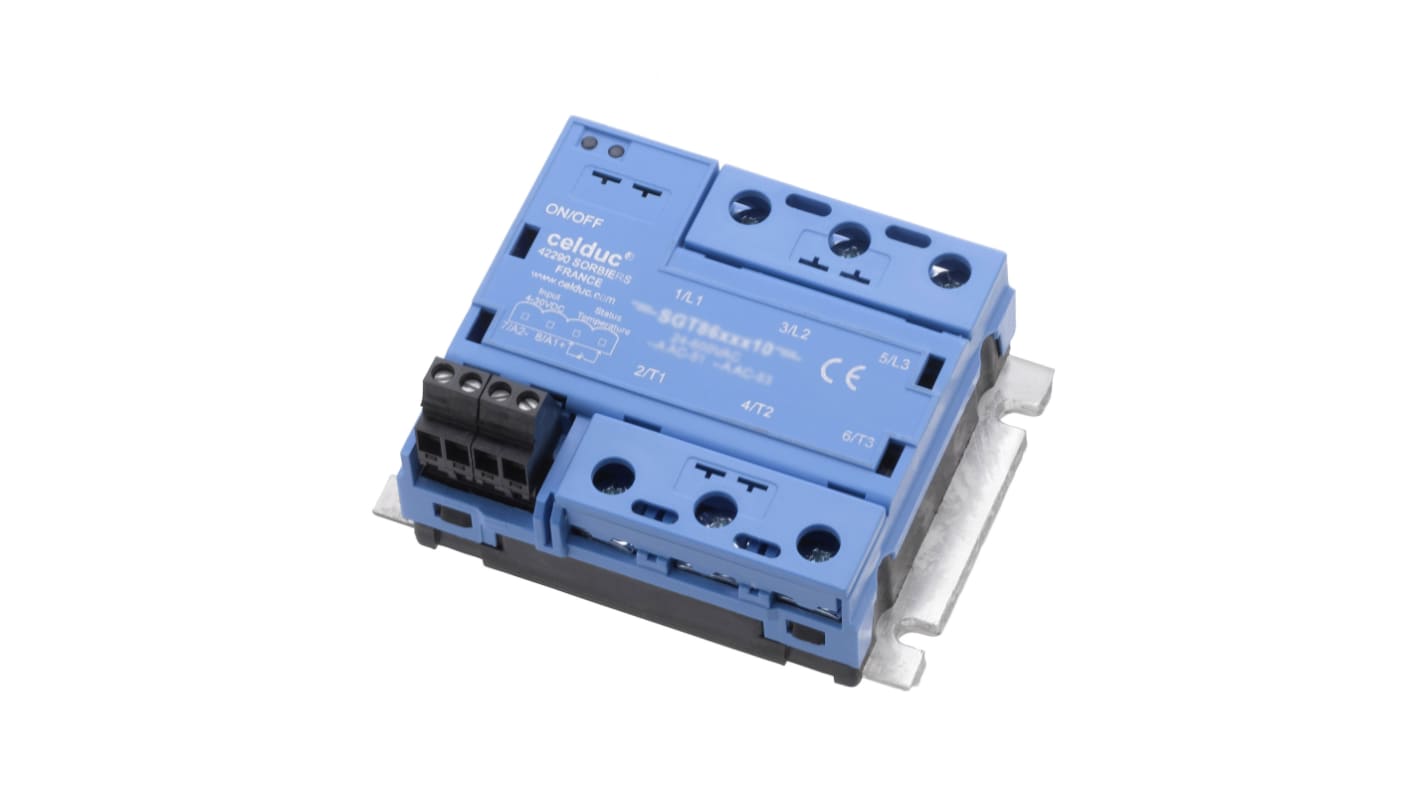

Celduc SGR Series Solid State Relay, 16 A Load, Panel Mount, 520 V ac Load, 30 V dc Control
- RS Stock No.:
- 225-9908
- Mfr. Part No.:
- SGR8671510
- Brand:
- Celduc
Subtotal (1 unit)*
£243.12
(exc. VAT)
£291.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £243.12 |
*price indicative
- RS Stock No.:
- 225-9908
- Mfr. Part No.:
- SGR8671510
- Brand:
- Celduc
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 16 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 520 V ac | |
| Minimum Load Voltage | 24 V ac | |
| Minimum Control Voltage | 12 V dc | |
| Maximum Control Voltage | 30 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 12 → 30 V dc | |
| Minimum Load Current | 5 mA | |
| Range | cel3pac | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Output Device | Thyristor | |
| Relay Type | AC Motor Reverser | |
| Series | SGR | |
| Maximum Turn On Time | 1/2 cycle | |
| Load Voltage Range | 24 → 520V ac | |
| Maximum Operating Temperature | +100°C | |
| Operating Temperature Range | -40 → +100°C | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CE, EAC, cURus | |
| Off State Leakage Current | 1 mA | |
Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 16 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 520 V ac | ||
Minimum Load Voltage 24 V ac | ||
Minimum Control Voltage 12 V dc | ||
Maximum Control Voltage 30 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 12 → 30 V dc | ||
Minimum Load Current 5 mA | ||
Range cel3pac | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Output Device Thyristor | ||
Relay Type AC Motor Reverser | ||
Series SGR | ||
Maximum Turn On Time 1/2 cycle | ||
Load Voltage Range 24 → 520V ac | ||
Maximum Operating Temperature +100°C | ||
Operating Temperature Range -40 → +100°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE, EAC, cURus | ||
Off State Leakage Current 1 mA | ||
