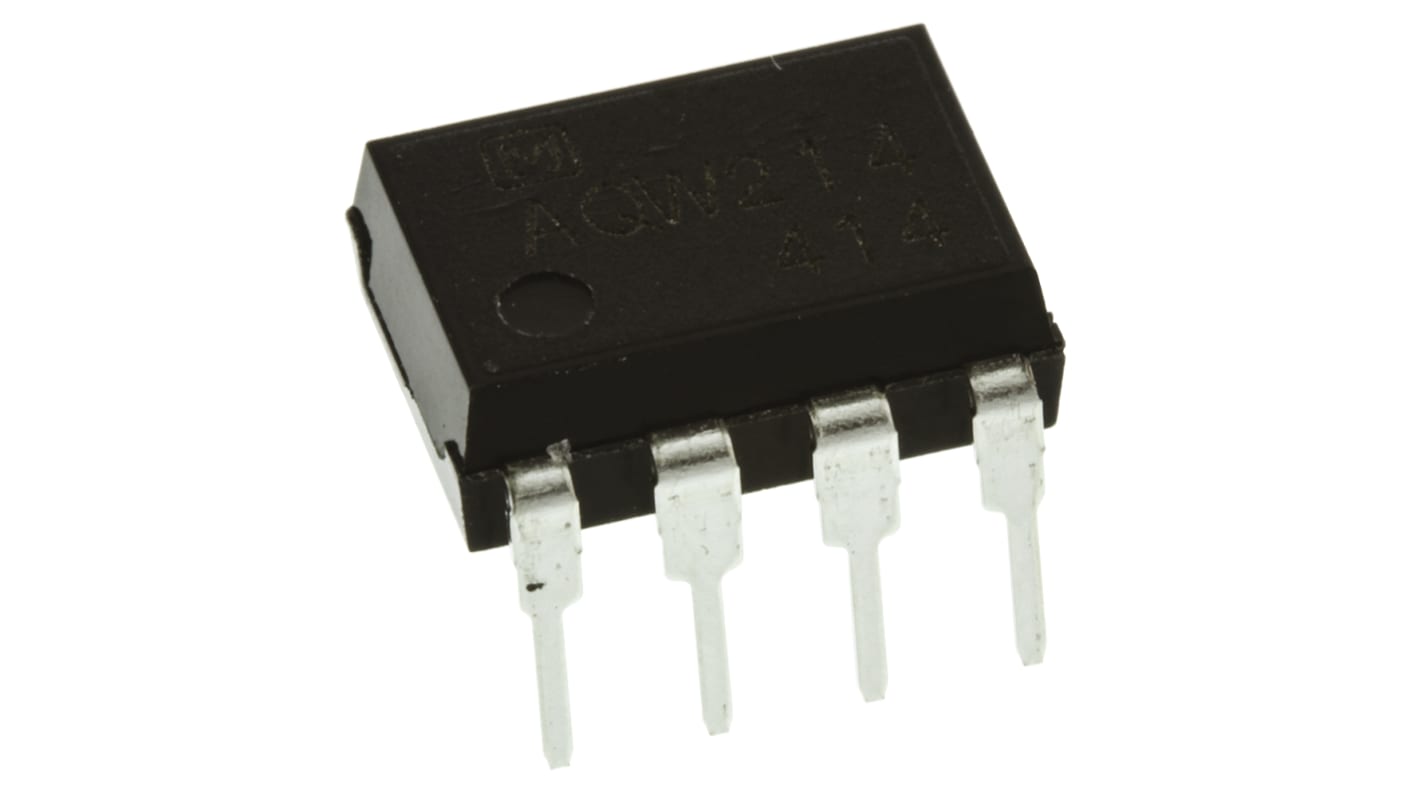

Panasonic 100 mA DPNO Solid State Relay, PCB Mount MOSFET, 400 V Maximum Load
- RS Stock No.:
- 217-2674
- Mfr. Part No.:
- AQW214E
- Brand:
- Panasonic
7 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.53
(exc. VAT)
£6.64
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £5.53 |
| 10 - 99 | £5.38 |
| 100 - 249 | £5.24 |
| 250 - 499 | £5.10 |
| 500 + | £4.97 |
- RS Stock No.:
- 217-2674
- Mfr. Part No.:
- AQW214E
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
AQW214 photoMOS solid state relay
Relay in 8-pin DIP casing for direct or alternate voltage switching.
Applications in fields such as computers, faxes and modems.
Applications in fields such as computers, faxes and modems.
Specifications
Attribute | Value |
|---|---|
| Minimum Load Current | 100 mA |
| Maximum Load Current | 100 mA |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 0 V |
| Maximum Load Voltage | 400 V |
| Minimum Control Voltage | 1.14 V |
| Maximum Control Voltage | 1.5 V |
| Contact Configuration | DPNO |
| Terminal Type | Through Hole |
| Output Device | MOSFET |
| Package Style | DIP8 |
| Maximum Turn On Time | 0.5 ms |
| Dimensions | 9.78 x 6.4 x 3.9mm |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Off State Leakage Current | 1 μA |
| Length | 9.78mm |
| Minimum Operating Temperature | -40°C |
| Height | 3.9mm |
| Depth | 6.4mm |
| Control Voltage Range | 1.14 → 1.5 V |
