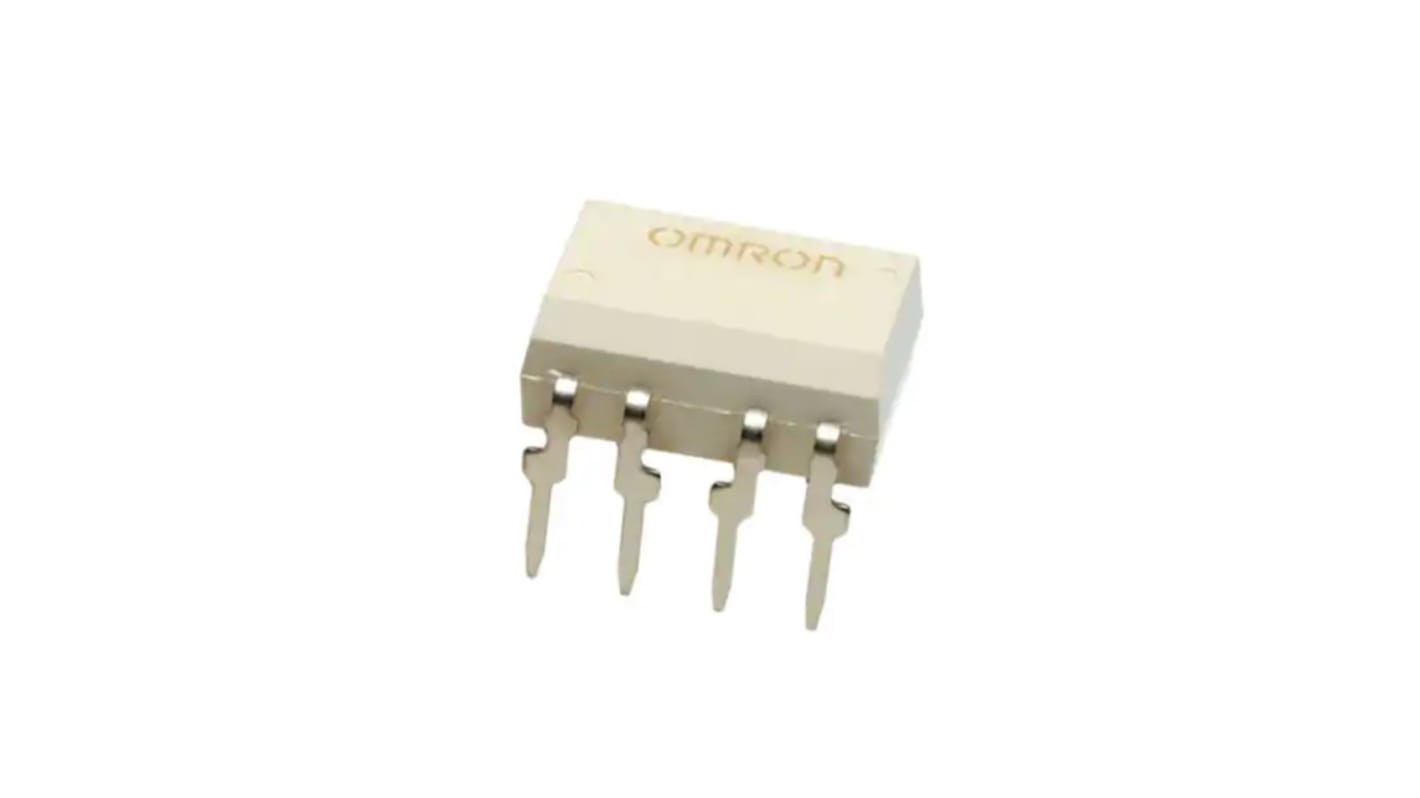

Omron G3VM Series Solid State Relay, 5 A Load, PCB Mount, 60 V Load, 5V Control
- RS Stock No.:
- 213-2111
- Mfr. Part No.:
- G3VM-61CR1
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£9.72
(exc. VAT)
£11.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 29 unit(s) shipping from 09 December 2025
- Plus 25 unit(s) shipping from 15 December 2025
- Plus 15 unit(s) shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.72 |
| 10 - 24 | £8.63 |
| 25 + | £8.05 |
*price indicative
- RS Stock No.:
- 213-2111
- Mfr. Part No.:
- G3VM-61CR1
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 5A | |
| Mount Type | PCB | |
| Maximum Load Voltage | 60V | |
| Maximum Control Voltage | 5V | |
| Series | G3VM | |
| Contact Configuration | SPST-NO | |
| Minimum Operating Temperature | -40°C | |
| On State Resistance | 0.05Ω | |
| Switching Function | SPST-NO | |
| Maximum Operating Temperature | 85°C | |
| Package Type | DIP-8 | |
| Length | 9.66mm | |
| Width | 6.4 mm | |
| Standards/Approvals | UL, RoHS | |
| Height | 3.65mm | |
| Output Type | MOSFET | |
| Capacitance | 850pF | |
| Off State Leakage Current | 10μA | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Solid State Relay | ||
Maximum Load Current 5A | ||
Mount Type PCB | ||
Maximum Load Voltage 60V | ||
Maximum Control Voltage 5V | ||
Series G3VM | ||
Contact Configuration SPST-NO | ||
Minimum Operating Temperature -40°C | ||
On State Resistance 0.05Ω | ||
Switching Function SPST-NO | ||
Maximum Operating Temperature 85°C | ||
Package Type DIP-8 | ||
Length 9.66mm | ||
Width 6.4 mm | ||
Standards/Approvals UL, RoHS | ||
Height 3.65mm | ||
Output Type MOSFET | ||
Capacitance 850pF | ||
Off State Leakage Current 10μA | ||
- COO (Country of Origin):
- JP
The Omron G3VM PCB power relay has DIP 8-pin package with high-current and low-ON-resistance. The G3VM PCB power relay relay has applications such as Communication equipment, Test & Measurement equipment, Security equipment and Power circuit.
PCB terminals
1a (SPST-NO) contact form
