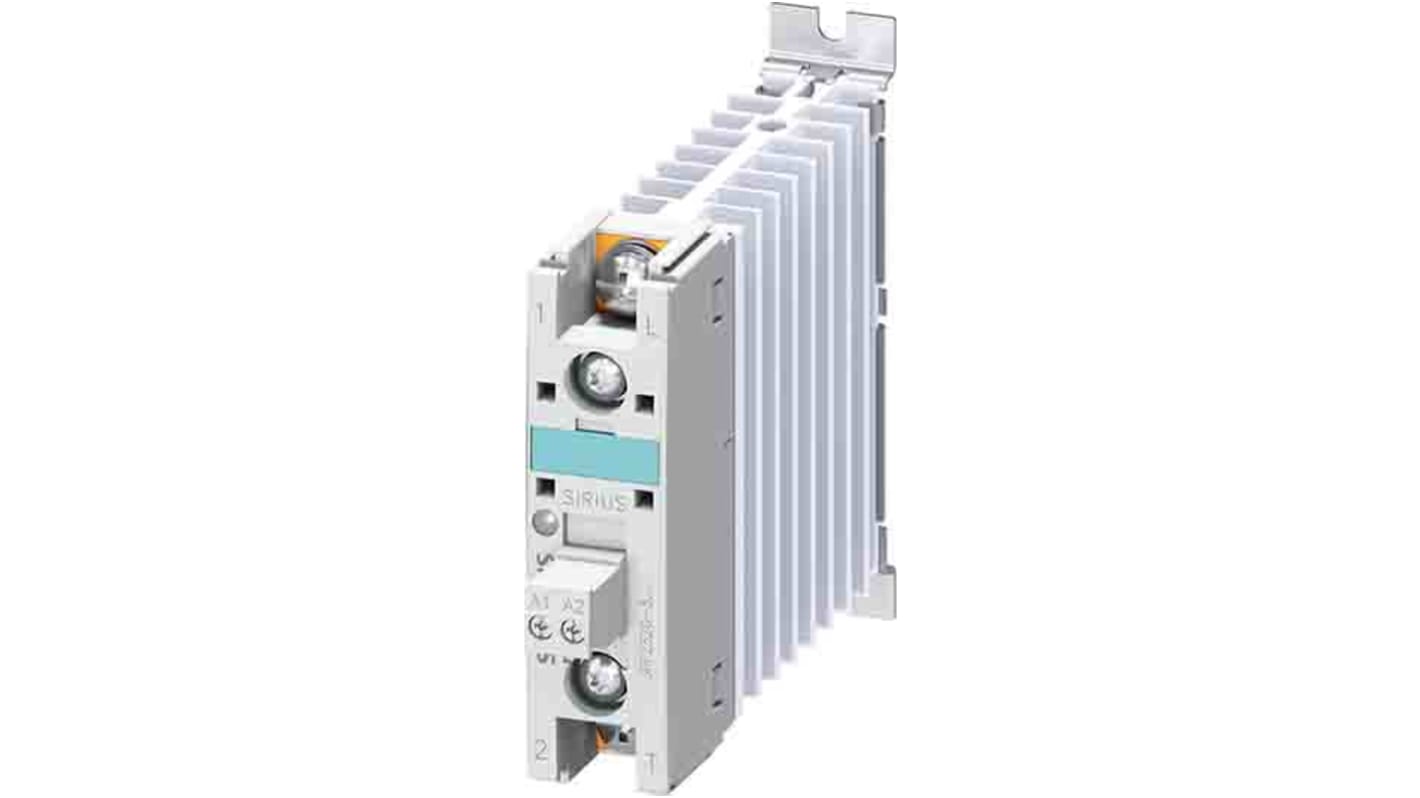

Siemens 3RF2 Series Solid State Relay, 20 A Load, Screw Fitting, 460 V Load
- RS Stock No.:
- 213-0732
- Mfr. Part No.:
- 3RF2320-3AA04
- Brand:
- Siemens
Subtotal (1 unit)*
£66.74
(exc. VAT)
£80.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £66.74 |
*price indicative
- RS Stock No.:
- 213-0732
- Mfr. Part No.:
- 3RF2320-3AA04
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Maximum Load Current | 20 A | |
Mounting Type | Screw Fitting | |
Maximum Load Voltage | 460 V | |
Minimum Load Voltage | 48 V | |
Switching Type | DC | |
Range | SIRIUS 3RF | |
Minimum Load Current | 500 mA | |
Contact Configuration | SPST | |
Output Device | Thyristor | |
Series | 3RF2 | |
Select all | ||
---|---|---|
Brand Siemens | ||
Maximum Load Current 20 A | ||
Mounting Type Screw Fitting | ||
Maximum Load Voltage 460 V | ||
Minimum Load Voltage 48 V | ||
Switching Type DC | ||
Range SIRIUS 3RF | ||
Minimum Load Current 500 mA | ||
Contact Configuration SPST | ||
Output Device Thyristor | ||
Series 3RF2 | ||
- COO (Country of Origin):
- DE
The Siemens solid-state contactor device are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA). Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The compact design saves space on the mounting
The solid-state contactor are available as single-phase or three-phase device
They are available for different power ratings and rated operating voltages
The solid-state contactor are available as single-phase or three-phase device
They are available for different power ratings and rated operating voltages
