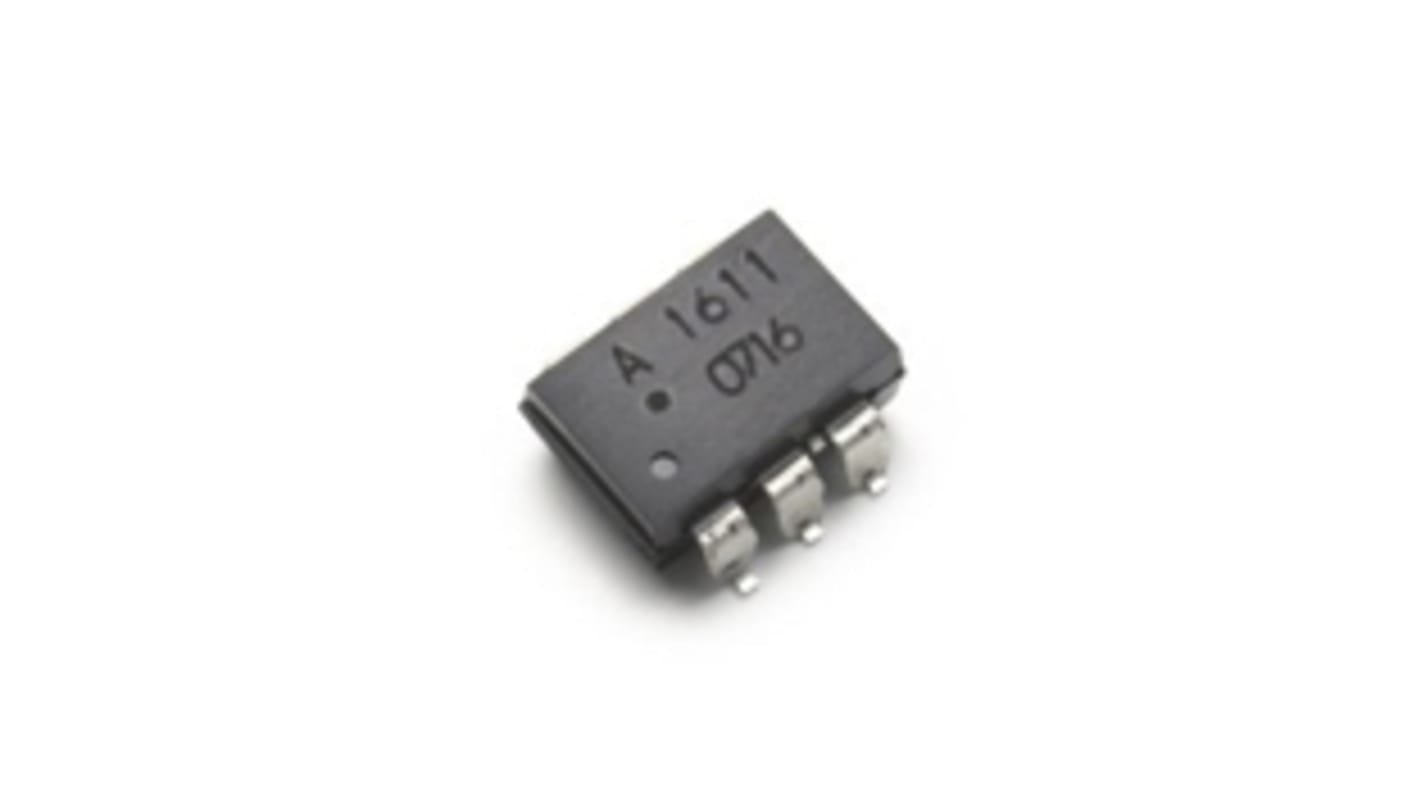

Broadcom ASSR-1611 Series Solid State Relay, 2.5 A Load, Surface Mount, 60 V Load, 1.7 V Control
- RS Stock No.:
- 174-4177
- Mfr. Part No.:
- ASSR-1611-501E
- Brand:
- Broadcom
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Pack of 2)
£5.96
(exc. VAT)
£7.15
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 18 | £5.96 | £11.92 |
| 20 - 98 | £5.58 | £11.16 |
| 100 - 248 | £4.475 | £8.95 |
| 250 - 498 | £4.09 | £8.18 |
| 500 + | £3.72 | £7.44 |
| *price indicative | ||
- RS Stock No.:
- 174-4177
- Mfr. Part No.:
- ASSR-1611-501E
- Brand:
- Broadcom
Technical Reference
Legislation and Compliance
Product Details
The Broadcom ASSR-1611 Solid State Relay (SSR) is specifically designed for high current applications, commonly found in industrial equipment. The relay is a solid-state replacement for single-pole, normally-open, (1 Form A) electromechanical relays.
Compact Solid-State Bi-directional Signal Switch
Single Channel Normally-off
Single-Pole-Single-Throw (SPST) Relay
60V Output Withstand Voltage
2.5A or 5A Current Rating
Low Input Current: CMOS Compatibility
Low On-Resistance: 20mΩ Typical for DC-only, 65mΩ Typical for AC/DC
Single Channel Normally-off
Single-Pole-Single-Throw (SPST) Relay
60V Output Withstand Voltage
2.5A or 5A Current Rating
Low Input Current: CMOS Compatibility
Low On-Resistance: 20mΩ Typical for DC-only, 65mΩ Typical for AC/DC
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 2.5 A |
| Mounting Type | Surface Mount |
| Maximum Load Voltage | 60 V |
| Minimum Load Voltage | -60 V |
| Maximum Control Voltage | 1.7 V |
| Minimum Control Voltage | 1.1 V |
| Switching Type | AC |
| Control Voltage Range | 1.1 → 1.7 V |
| Number of Poles | 1 |
| Terminal Type | PCB Pin |
| Contact Configuration | SPDT |
| Output Device | MOSFET |
| Relay Type | Solid State Relay |
| Package Style | DIP |
| Load Voltage Range | -60 → +60V |
| Maximum Turn On Time | 10ms |
| Series | ASSR-1611 |
| Dimensions | 9.65 x 6.35 x 4.19mm |
| Minimum Operating Temperature | -40°C |
| Off State Leakage Current | 5 μA |
| Length | 9.7mm |
| Special Features | CMOS Compatibility, CSA Component Acceptance, Single-Pole-Single-Throw (SPST) Relay |
| Operating Temperature Range | -40 → +85°C |
| Capacitance | 0.8pF |
| Depth | 6.4mm |
| Maximum Operating Temperature | +85°C |
| Height | 4.2mm |
